Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 10. Page 4.
Rev. A

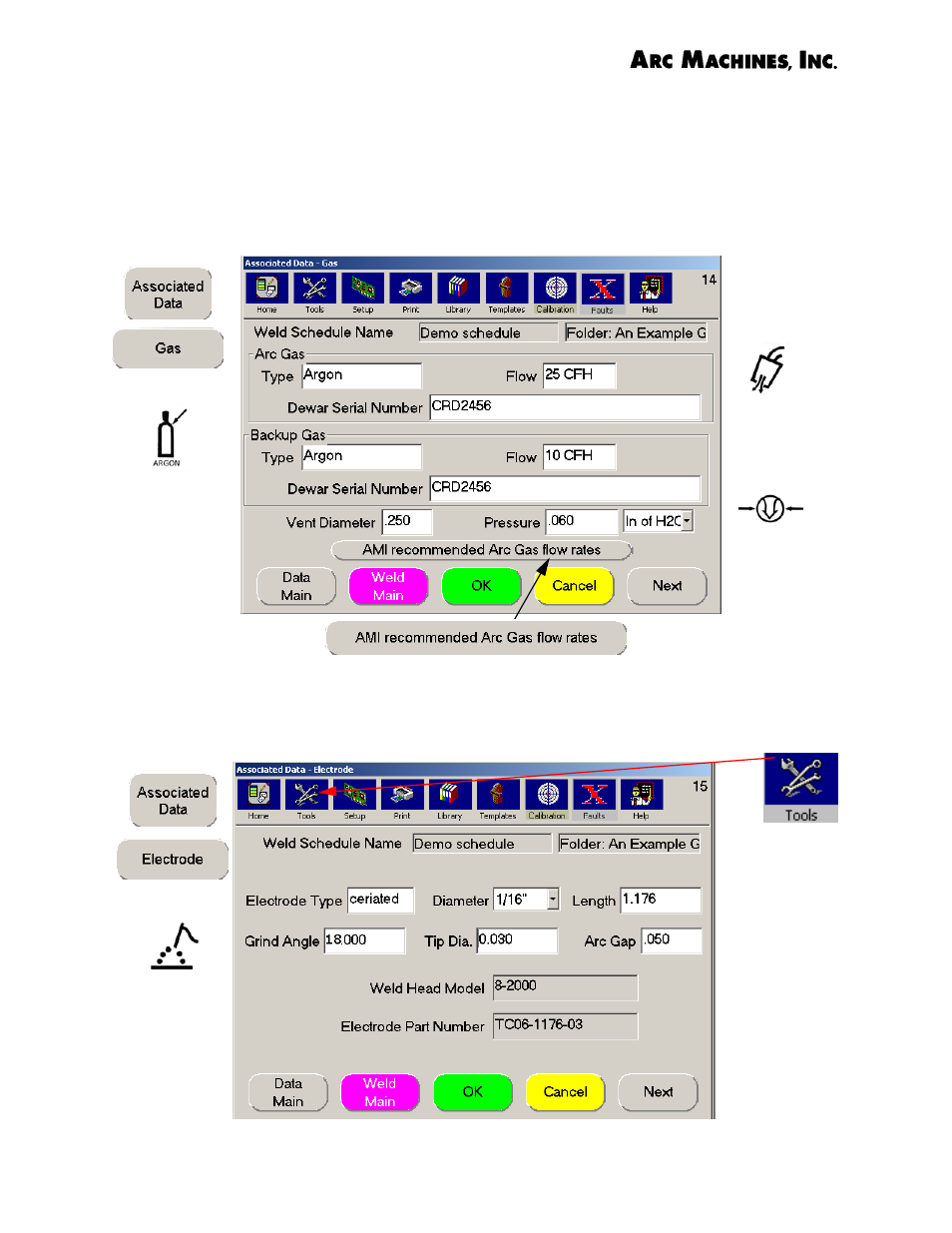

Associated Data - Gas
Type in Arc Gas Type or Mixture, Flow rates and gas source
information for the Arc Gas and Backup Gas (I.D. purge). Vent diameter (exit
orifice) and I.D. pressure should also be recorded if applicable. Touch the
AMI recommended Arc Gas flow rates button for factory-recommended
flow rates.
Associated Data - Electrode
Enter Electrode Type, Diameter, length, grind angle,tip diameter and
arc gap. Use the Tools Icon from the toolbar to locate electrode
information.
