Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 2. Page 2.
Rev. A
S
afe Use of Orbital Welding Equipment

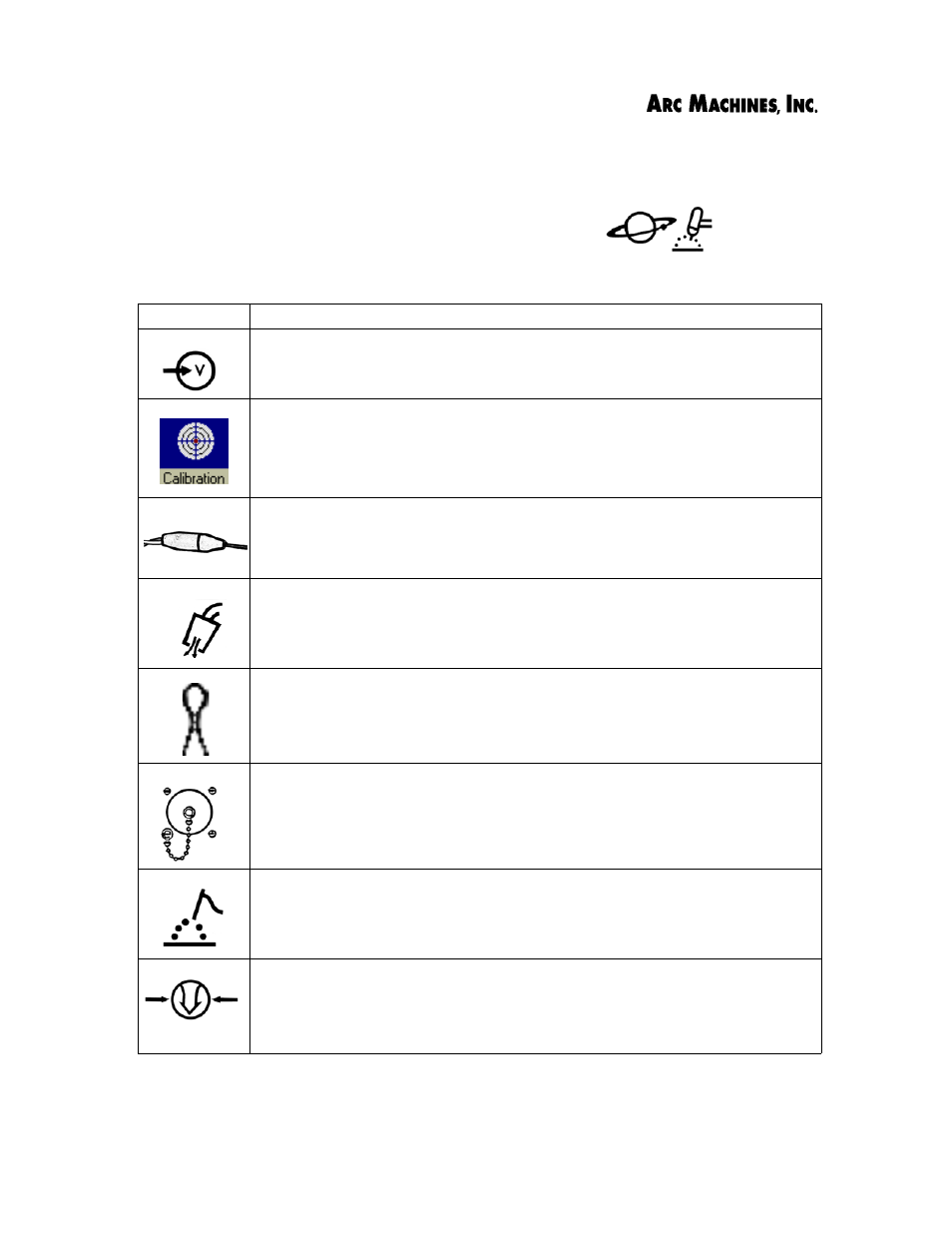

DO’s
1. Do
VERIFY
correct AC Power Source (100 or 240 VAC
single phase) before plugging in the Model 307.
2. Do Autocal weld head (or select Manual Option)
each time the Model 307 is connected to a different
weld head. The weld head must be calibrated to the
power supply it is connected to.
3. Do
CHECK ALL CABLE AND QUICK
-
DISCONNECT
FITTINGS
to insure proper seating and that protective
boots are in place.
4. Do check for G
AS LEAKS
on all external Gas fittings.
5. Do
PROTECT WELD HEADS
by storing in shipping
container (or otherwise suitably protected) when not in
use.
6. Do
KEEP PROTECTIVE COVERS ON THE MOTOR CABLE CON
-
NECTORS when not in use.
7. Do insure that the PROPER E LECTRODE is installed in
the weld head.
8. Do use a
REGULATOR AND FLOWMETER
designed for the
gas that is being used and suitable for the purity
requirements of the application.
Model 307 Do’s and Don’ts
