Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 10. Page 5.
Rev. A
Weld Schedule Counter and Alert Reset

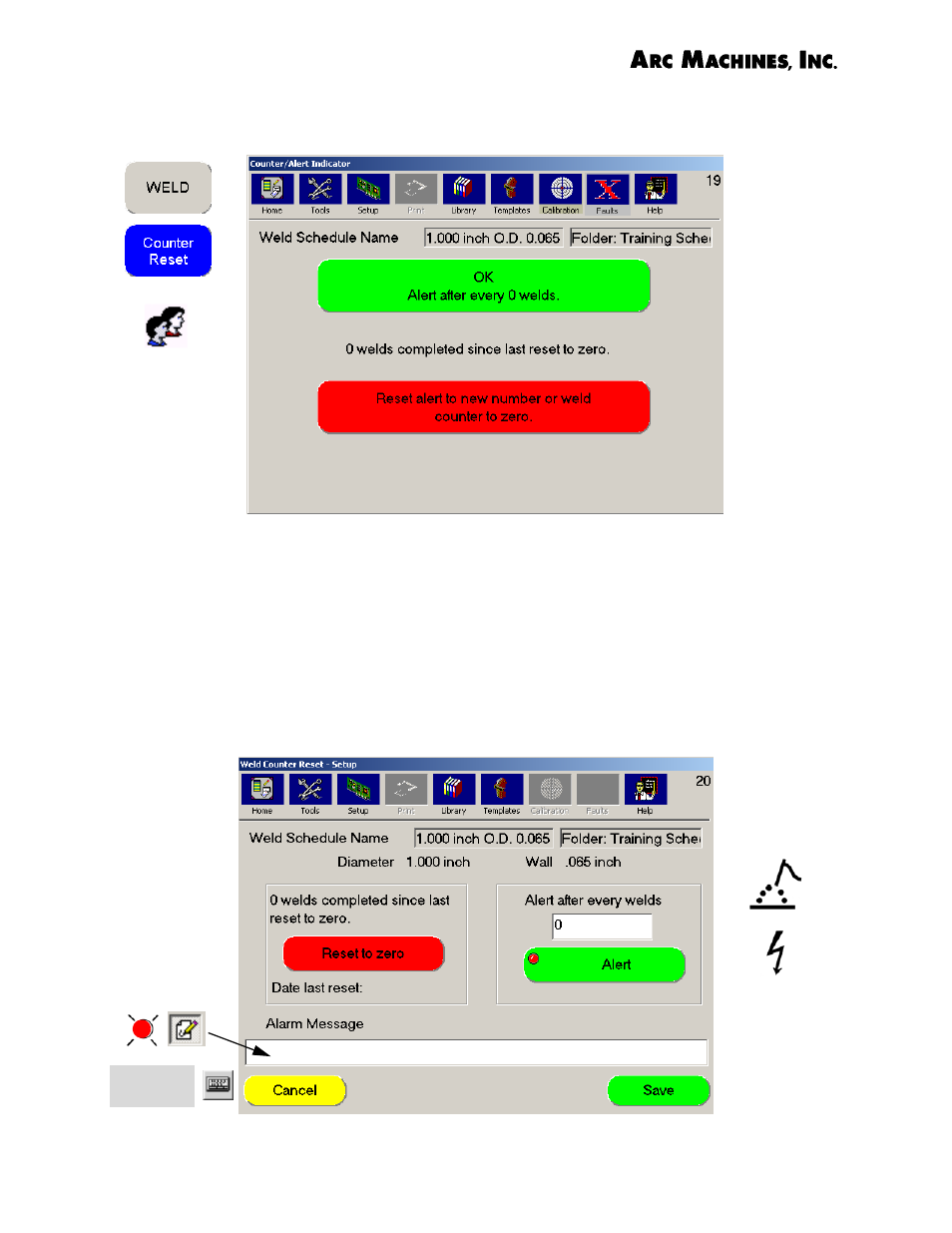

From the Main Weld Schedule screen touching the Counter Reset button
will bring up the Counter/Alert Indicator screen that allows the user to either
reset the alert counter to a new number, reset the weld counter to zero,
change the alert message and/or disable the alert.
Selecting either option from the above screen brings up the
Weld Counter Reset Setup screen which can be customized to weld sched-
ule that is currently open. For example, an alarm may be set to tell the user
to change the electrode after 15 welds or to make a test coupon. Type in
alarm message from the keyboard.
Type in
message
