Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 6. Page 7
Rev. A

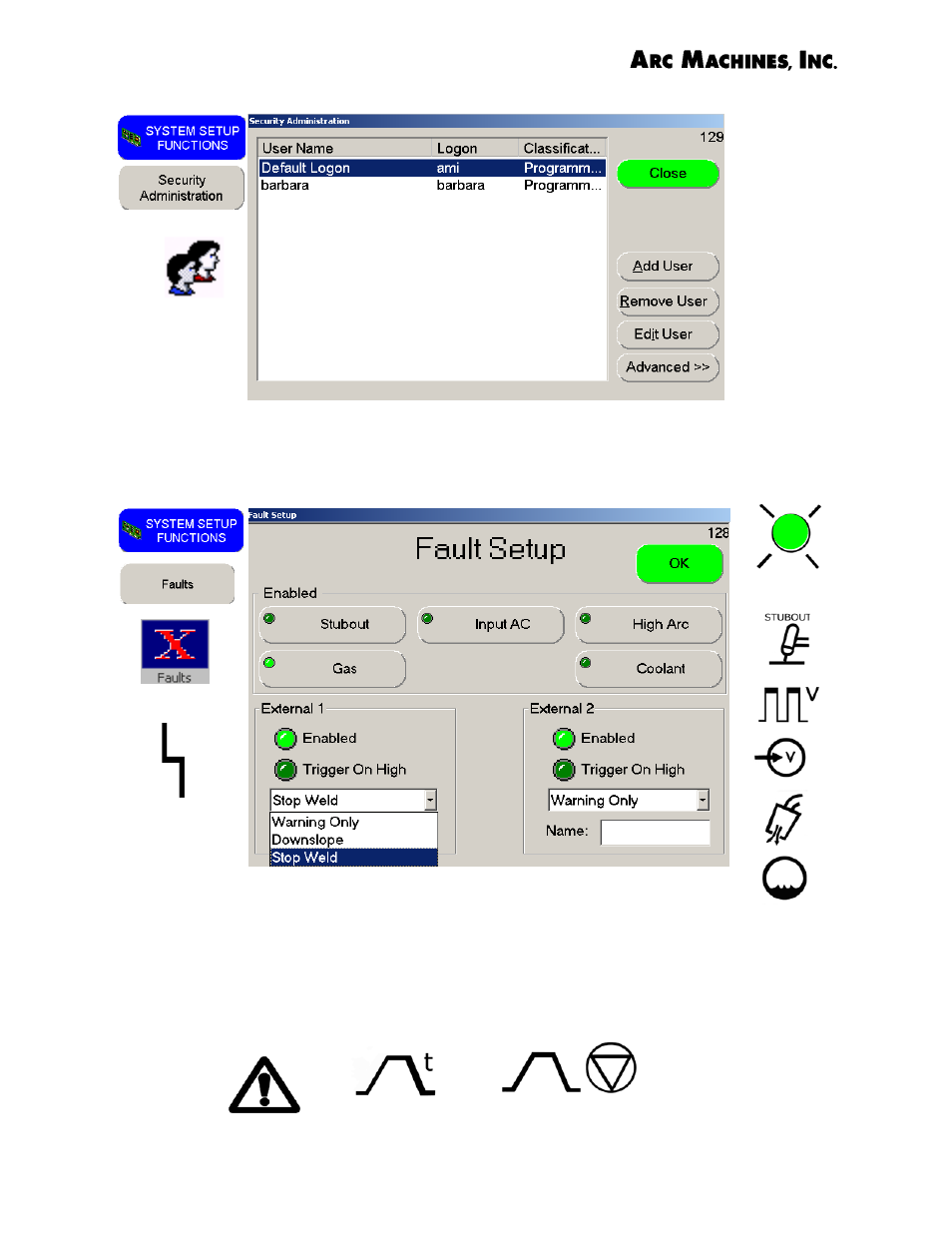

Security Administration permits the classification of users as Operators,
Supervisors and Programmers with defined access to M 307 functions. Users
may be added, removed, or their classification changed.
Touching the Faults button from the System Setup Functions brings up the
Faults Setup Screen. Fault functions are enabled by selecting the button for
Stubout, Input AC, High Arc, Gas, Coolant or external faults. The green light
indicates that the fault is enabled. Pulldown menus on the External Faults
offer the choice of a Warning Only if a fault is detected, or the 307 will enter
Downslope or Stop the Weld sequence immediately if the selected fault
occurs.
Enabled
Downslope Stop Weld
