Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 18. Page 10.
Rev. A
Model 307 Advanced Functions
The Model 307 Power Supply has several advanced features which require the
user to be logged on to the system at the Programmer level. Screens requir-
ing higher security levels are grayed out for other users.

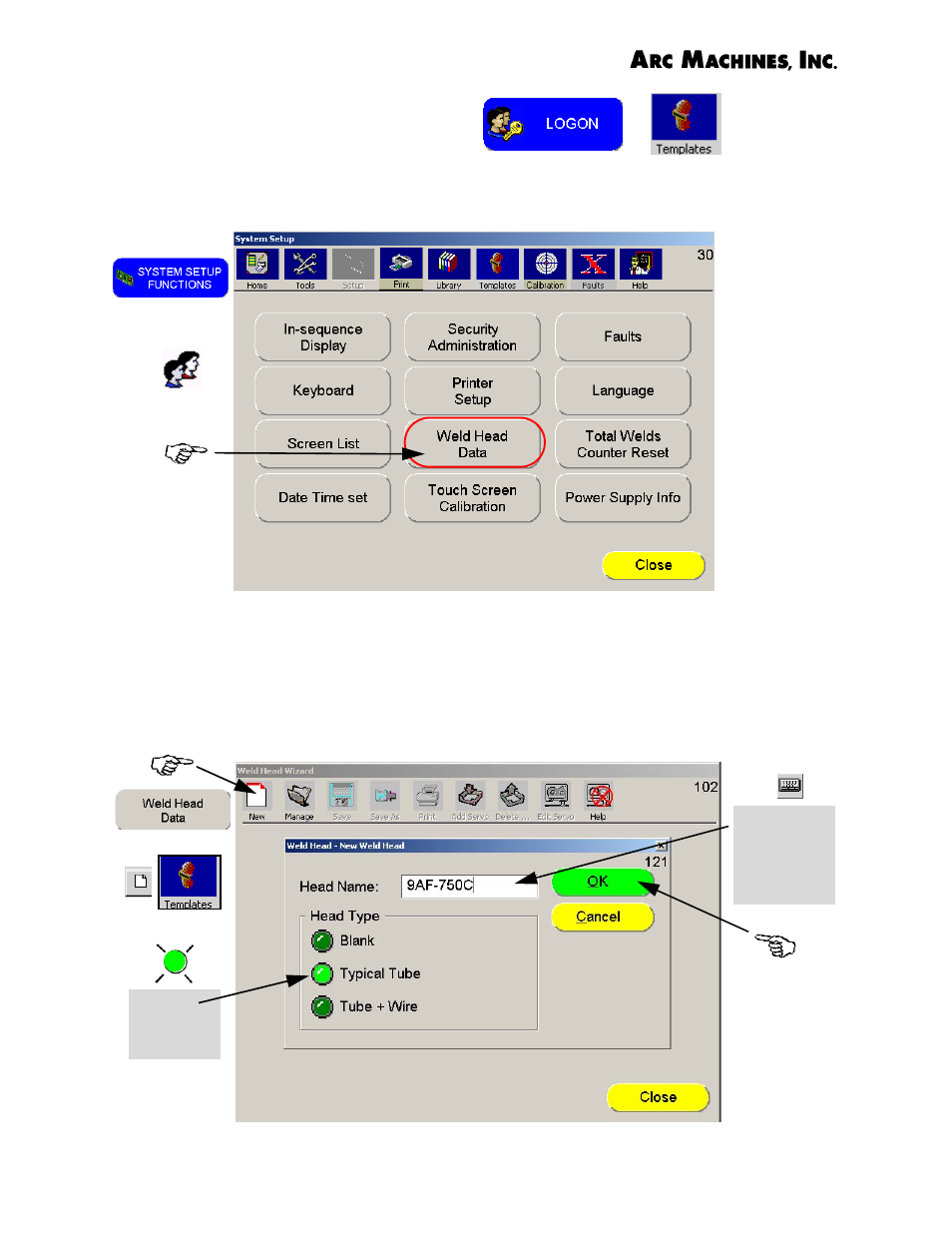

Weld Head Wizard
Weld head definitions for AMI weld heads shown on Templates are read-only
files and can not be changed by the user. The Weld Head Wizard allows the
user to create a new weld head definition by either copying and modifying an
existing definition or to create a new one from scratch. Touch Weld Head
Data on the System Setup screen and then touch New on the Weld Head
Wizard screen.
Select
weld head
type
Type in new
or modified
weld head
name then
touch OK
