Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 4. Page 15.
Rev. A
diagonally as shown below. Insert the paper straight into the printer until
the auto-paper feeder engages the thermal paper. If the paper becomes
misaligned during loading, raise the head and reset the paper.
Cleaning Printer Head
Do not clean the head immediately after printing. Allow enough time for
the head and pressure unit to cool. Do not use rough materials such as
sandpaper for cleaning.
To clean the print head lift the head up/down lever. Clean the heat ele-
ments with a cotton swab moistened with isopropyl alcohol. Allow the
alcohol to evaporate before lowering the print head.

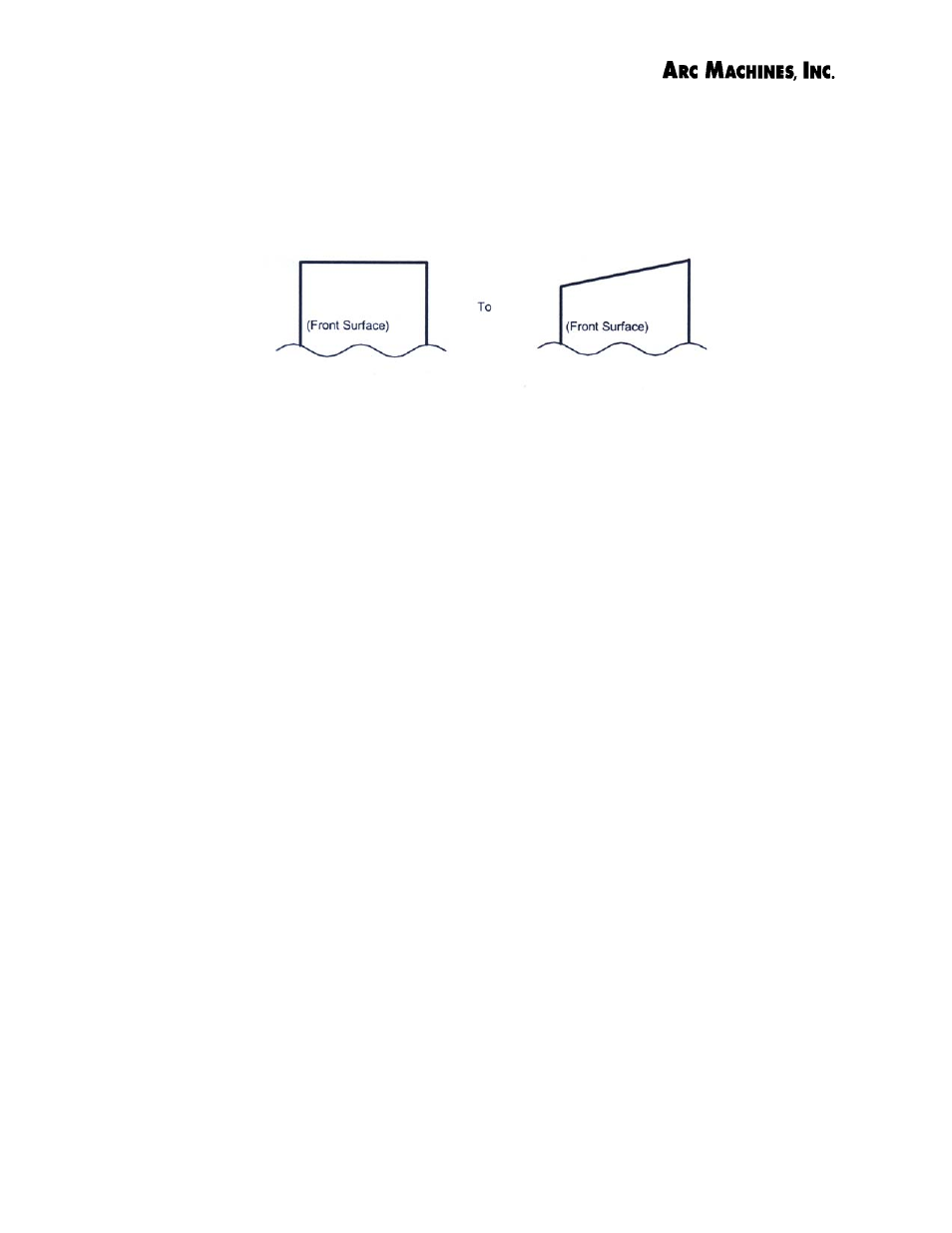

Cut paper edge as shown before loading printer paper.
Note that sensors for automatic paper feed are on the
same side as the head up lever. If the paper is not cut as
shown, the paper will not feed.
WRONG RIGHT
