Touching the Faults icon on the toolbar displays fault
settings.
Touching the Calibration icon brings up a screen with
directions for calibrating the weld head to the Model 307
Power Supply. The Icon will be greyed out if there is no
weld head connected to the power supply.
Touching the Help icon brings up the 307 Help informa-
tion.
The Stop USB icon is visible from the Weld Schedule
Library screen. Press the Stop USB icon prior to removing
a USB memory stick from the Model 307 or saved files
may be lost.
Touching the Continuous Icon initiates the autogenera-
tion of a weld schedule in which the rotation is continuous
(Primary RPM only).
Touching the Step icon initiates the autogeneration of a
weld schedule with STEP rotation mode in which the elec-
trode moves only during the background current pulse.
Touching the Tack icon initiates the autogeneration of a
weld schedule for making orbital tack welds.

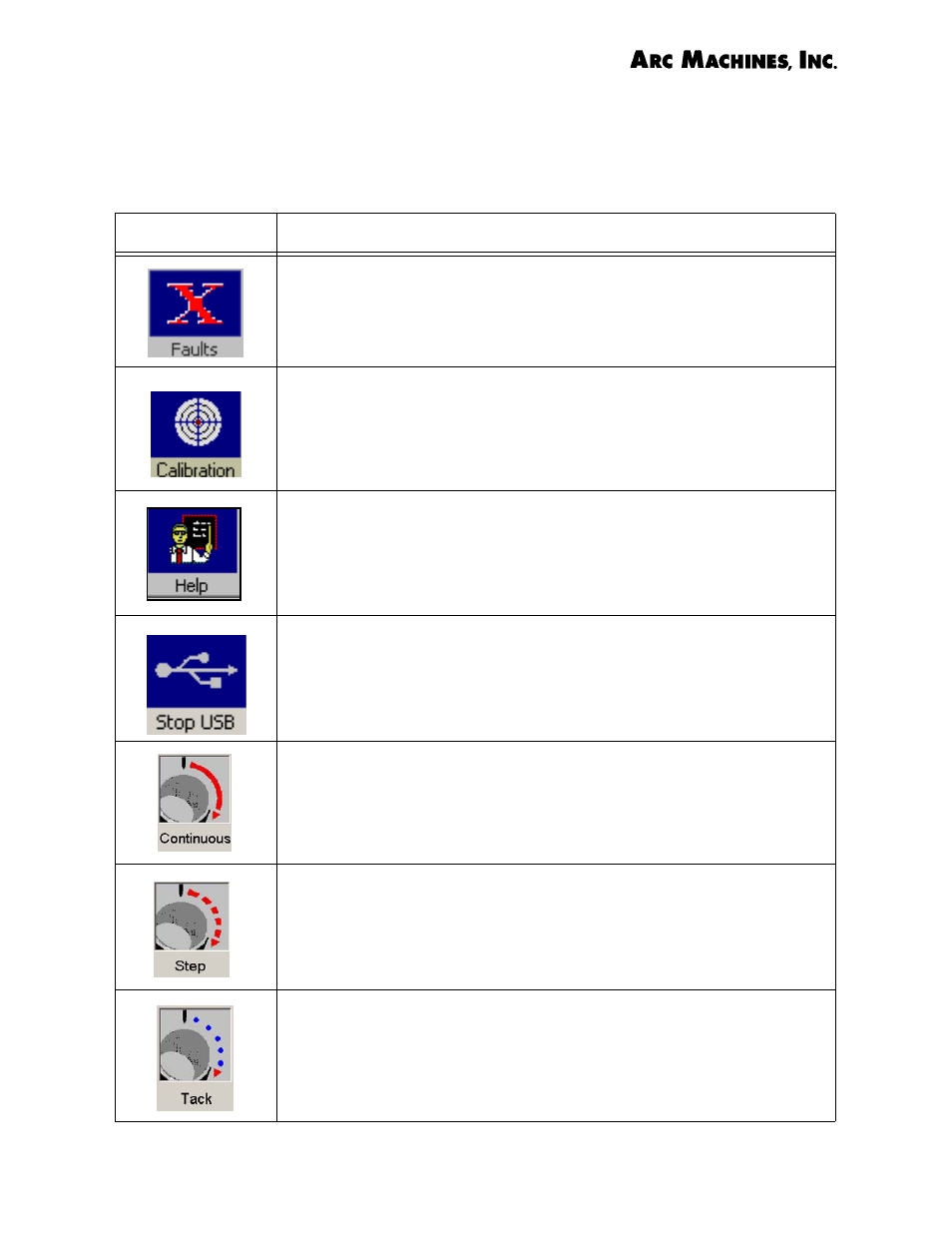

Table I. Model 307 TOOLBAR ICONS
ICON FUNCTION
