Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 4. Page 10.
Rev. A

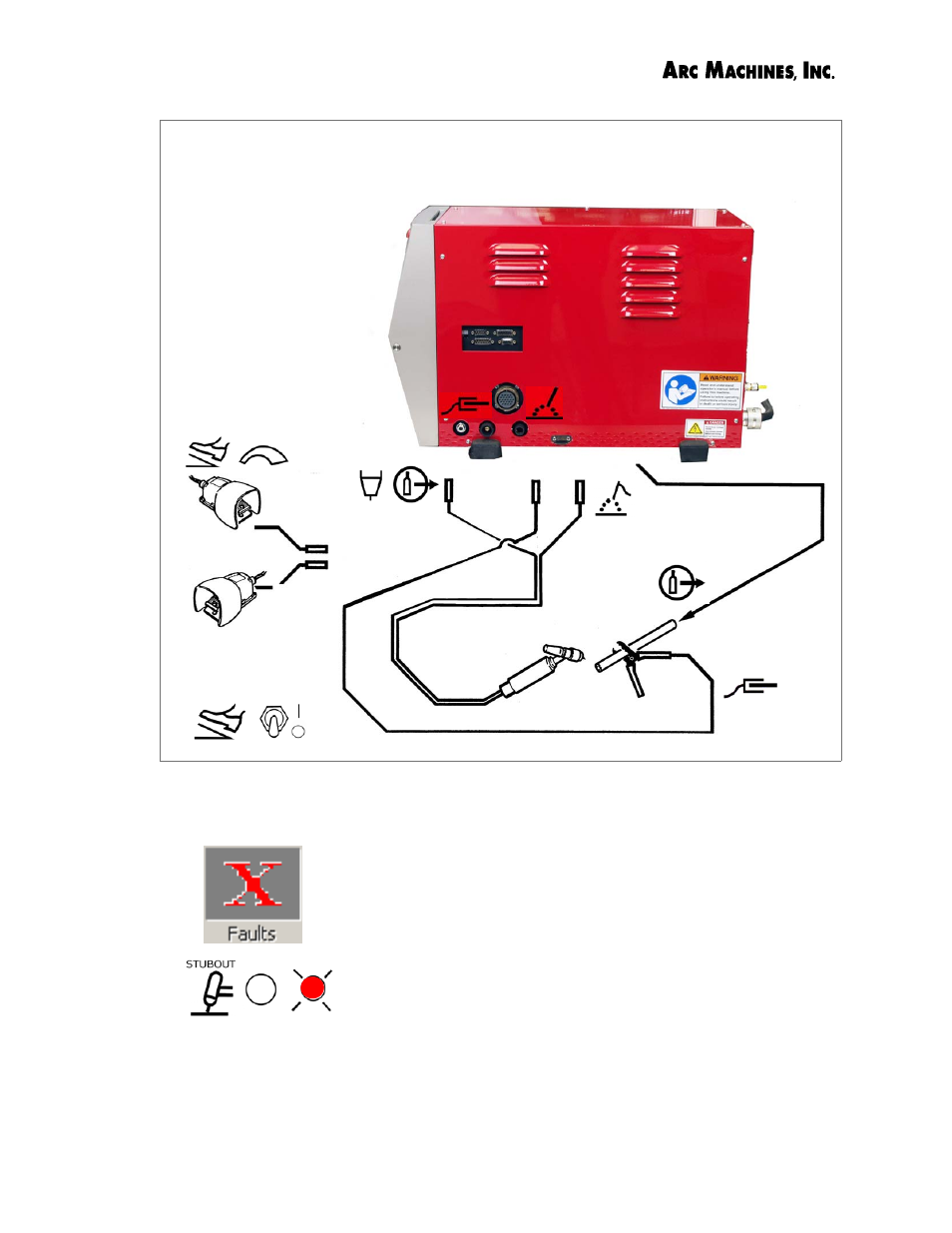

M-307 to MANUAL TORCH HOOK-UP
(OPTIONAL)
M307-FS
FOOT SWITCH
CONNECT TO
REGULATOR/FLOWMETER
GROUND ELECTRODE
ARC GAS
ID PURGE LINE
M307-FC
MANUAL TORCH
FOOT CONTROLLER
AIR-COOLED.
MANUAL TORCH
WORK GROUND
ARC GAS IN WELD HEAD
M-307 POWER SUPPLY CONNECT PANEL
AC INPUT
