Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 4. Page 2.
Rev. A
electrical performance is based on a maximum weld head
distance of 50 feet (15.4 m) from the Model 307.
A System Stop Button is located on the front of the Power
Supply and on the Operator Pendant. Pressing System Stop shuts
down welding operations.
Weld Current Output. Current type is continuous or pulsed out-
put DC Straight Polarity for GTAW (TIG) welding only. The pro-
grammable range is from 3 to 200 amperes (± 1% of pro-
grammed setting or ± 1.0 ampere, whichever is greater
) while
maintaining a maximum average current of 150 amps at 100%
duty cycle. Programmable increments can be user-defined in the
weld program in units of 1 or 0.1 AP. Maximum recommended
amps (from a weld head template) can be programmed after a
warning of the "recommended limit" is displayed on the screen.
Note: Not all circuits are capable of delivering the rated
amperage. When possible, use a 220 VAC power source, or a
dedicated circuit for 110 VAC to avoid fluctuations in power.

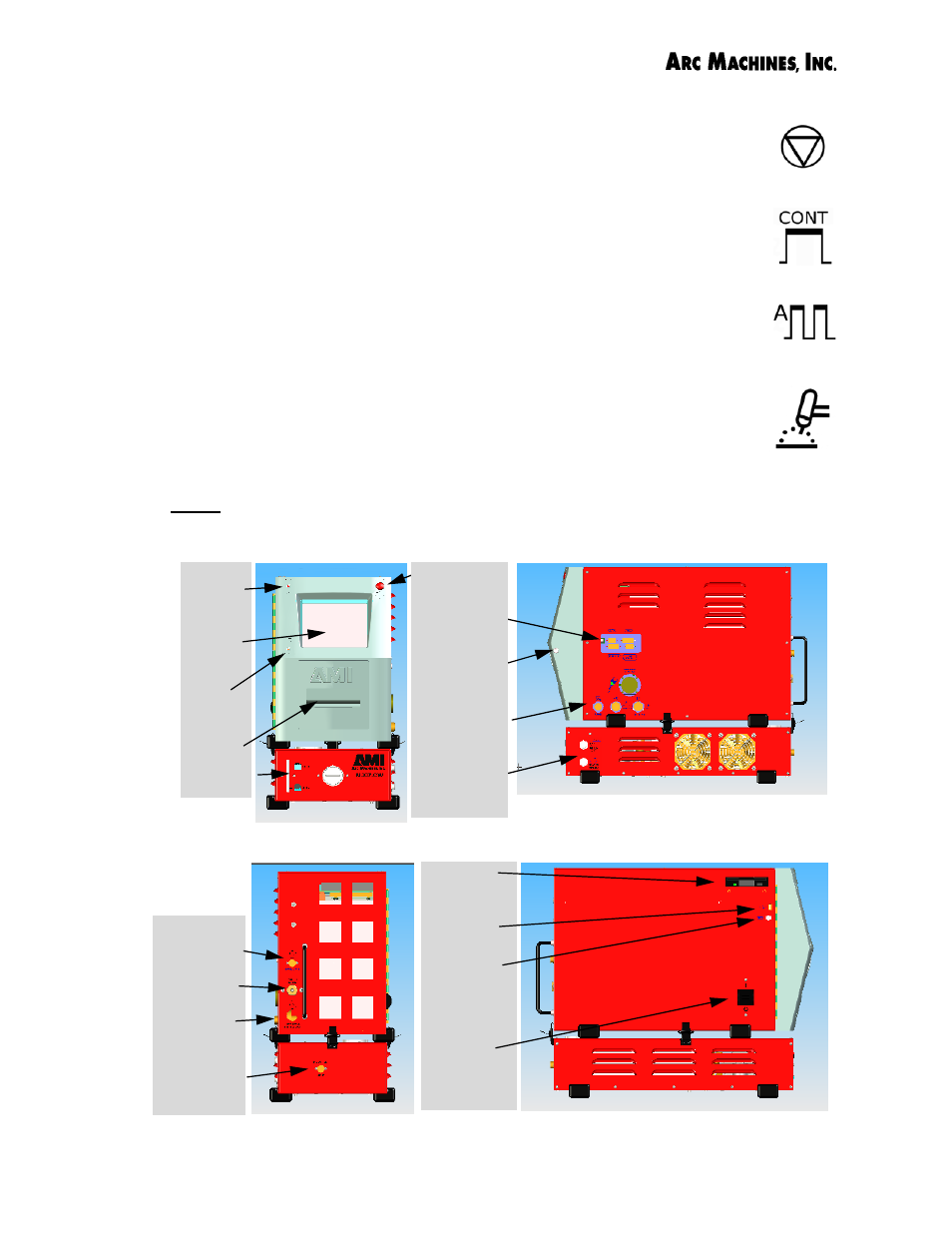

Manual
purge
indicator
Touch
screen
Power
ON
indicator
Printer
307-CW
307 Front
307 Right Side
307 Back 307 Left Side
Floppy
disk drive
USB Port
PS2
Keyboard
connector
Circuit
breaker
(Power
ON/OFF)
307-CW
connector
Input Gas
AC Input
307-CW
power input
connector
System
Stop button
Accessory
connectors
Paper door
release
Adapter
cable
connectors
Coolant in
and out
