Arc Machines, Inc. Model 307 Orbital Tube Welder Training
Document No. 740096 Chapter 3. Page 14
Rev.A
53 Disturbance (or
change)
To Signify a Disturbance
in the Proper Run of a
Procedure, or Fault Con-
dition
ISO 7000-0228
54 Fast To Signify Fast Action or
Operation
SAE
55 Slow To Signify Slow Action or
Operation
SAE
56 Travel Speed To Signify Travel or Run
Speed
SAE
57 Electrode Travel
Speed
To Signify Travel Speed
of the Electrode or Torch
SAE
ANSI/NEMA
AMI
58 Direction of
electrode travel
To Signify Direction of
Electrode Travel
ANSI/NEMA
/AMI
59 Electrode Travel
Start Delay
To Signify the Time after
Arc Start that the Elec-
trode Begins to Move
ANSI/NEMA
/AMI
60 ALL STOP To Signify shut down of
Power Supply
ANSI/NEMA
AMI
61 Sequence STOP To Signify stopping of the
weld sequence
ANSI/NEMA
AMI
62 START
Sequence
To Signify initiation of
weld sequence
ANSI/NEMA
AMI
63 Start Delay
Time
To Signify a Timed Delay
in Starting a Function
ANSI/NEMA
AMI
64 Stop Delay Time To Signify a Timed Delay
in Stopping a Function
ANSI/NEMA
AMI

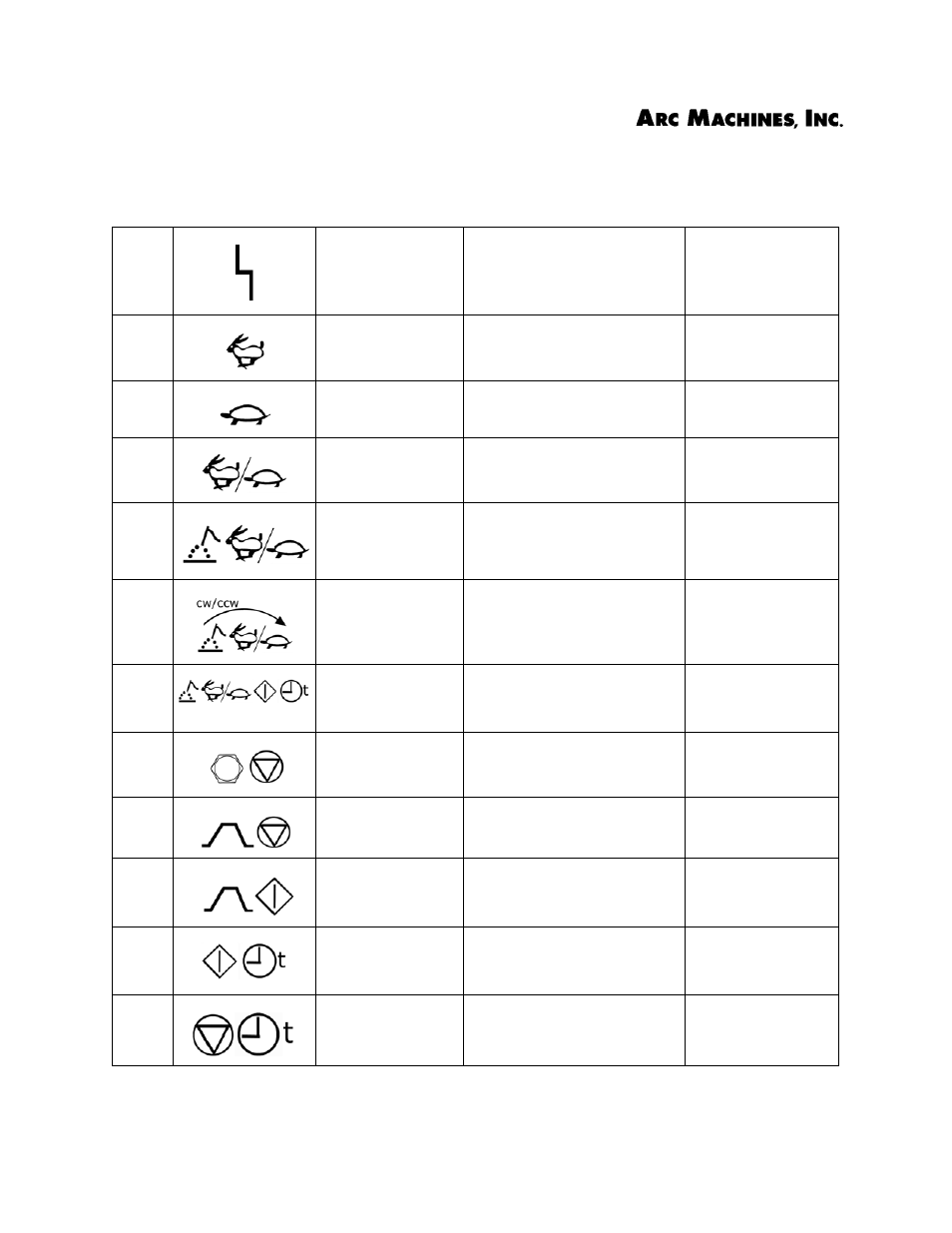

Table 4. Graphical Symbols used in this Manual
