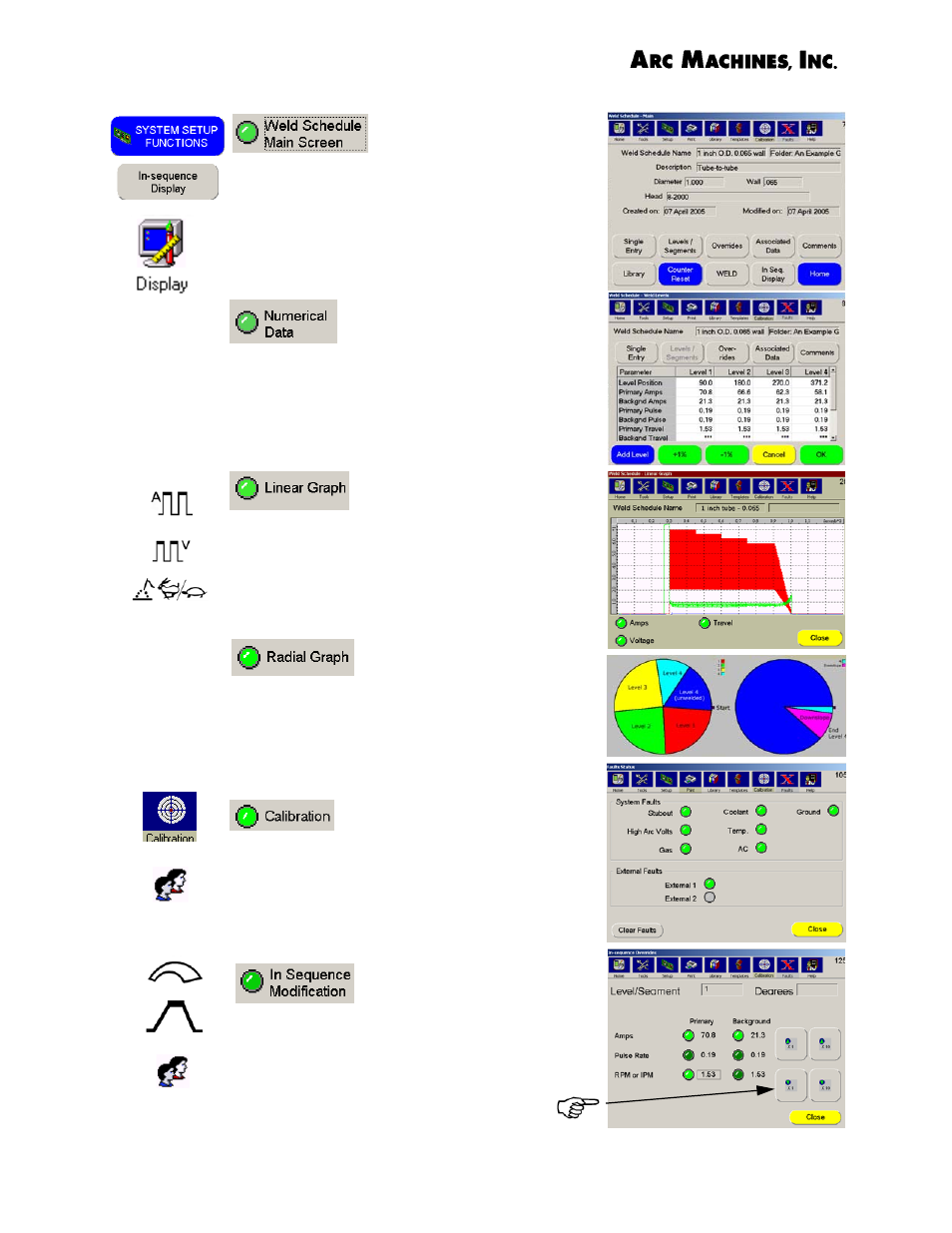

Displays Weld Schedule - Main
screen of active weld schedule during
weld sequence.
Displays program Levels screen and
displays a graph showing progress of
weld levels.
Displays values of amps, volts, and
travel speed as digital streaming data
during weld. Plots numerical data as a
linear graph after the end of weld
sequence.
Displays a radial graph showing
electrode position and location of level
changes on weld circumference during
Weld and Test sequences.
Displays the calibration values for
travel speed, wire feed, and other
functions. Caution - these settings
should not be modified by untrained
personnel.
Permits modification of selected weld
parameters during the weld sequence.
Use buttons to increase or decrease
Amps, Pulse Rate, or RPM (IPM).
