3-12
LIFEPAK 15 Monitor/Defibrillator Operating Instructions
Front View
Connecting and Disconnecting the Therapy Cable
IMPORTANT! The LIFEPAK 15 monitor/defibrillator QUIK-COMBO therapy cable and standard
(hard) paddles have the same type of connector and connect to the defibrillator at the same
location. These therapy cables are not compatible with other LIFEPAK defibrillator/monitors.
To connect a therapy cable to the defibrillator:

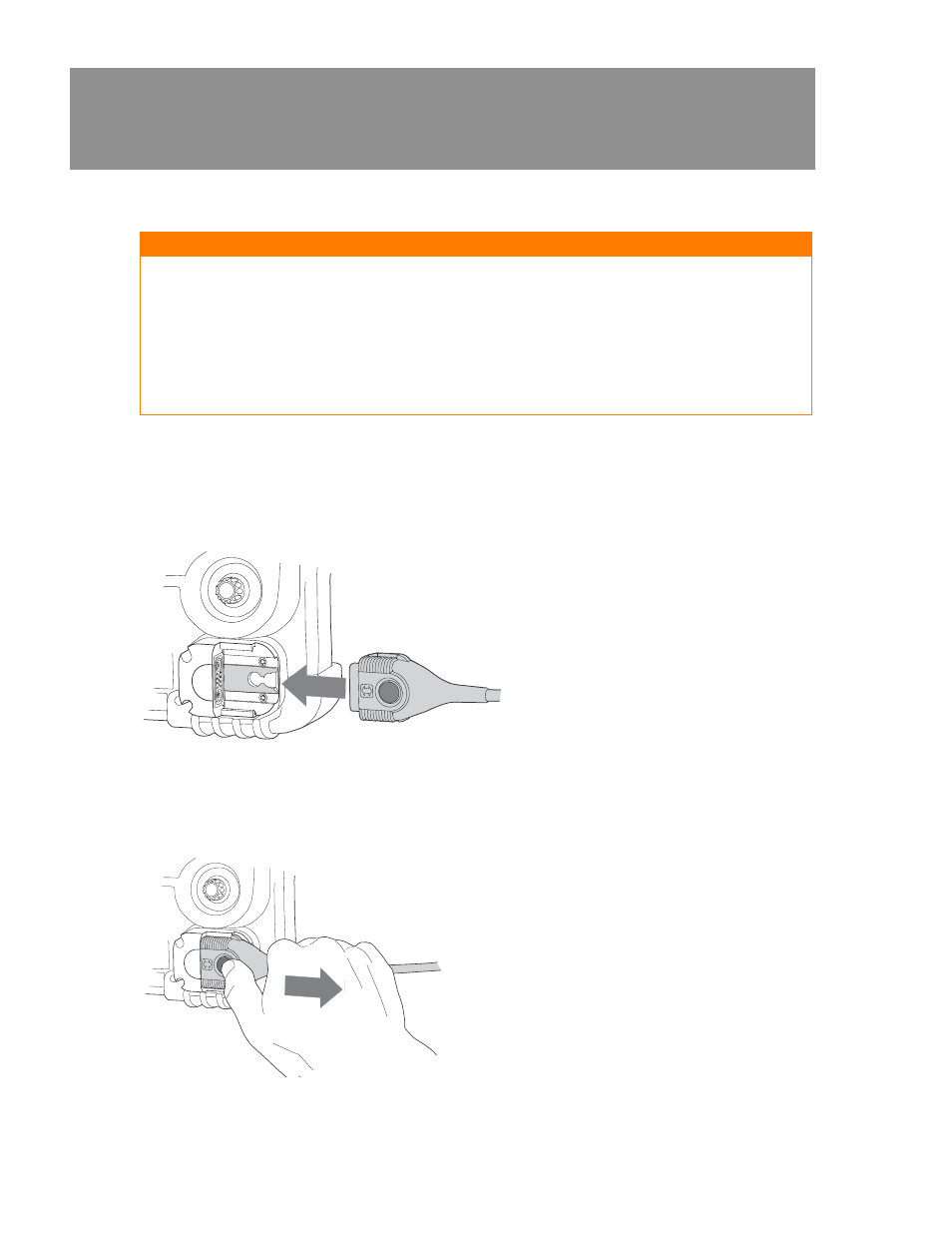

Figure 3-9 Connect Therapy Cable
To disconnect the therapy cable from the defibrillator:
Figure 3-10 Disconnect Therapy Cable
WARNING
POSSIBLE EQUIPMENT DAMAGE AND INABILITY TO DELIVER THERAPY
To help protect the therapy cable connector from damage or contamination, keep
therapy cable connected to the defibrillator at all times. Inspect and test the therapy
cable daily according to the Operator’s Checklist in the back of this manual. Physio-
Control recommends replacement of therapy cables every three years to reduce the
possibility of failure during patient use.
1. Align the therapy cable connector with the
receptacle.
2. Slide the therapy cable until you feel the
connector lock in place. You will also hear a
“click.”
1. Press the release button on the therapy
cable connector.
2. Slide the therapy cable connector out.
