LIFEPAK 15 Monitor/Defibrillator Operating Instructions
Standard Paddles
Standard Paddles
Adult Standard Paddles
Standard paddles are hard, hand-held paddles that are applied to the patient’s chest to briefly
monitor the ECG or to deliver defibrillation shocks. Figure 6-4 describes the features of the
standard paddles.

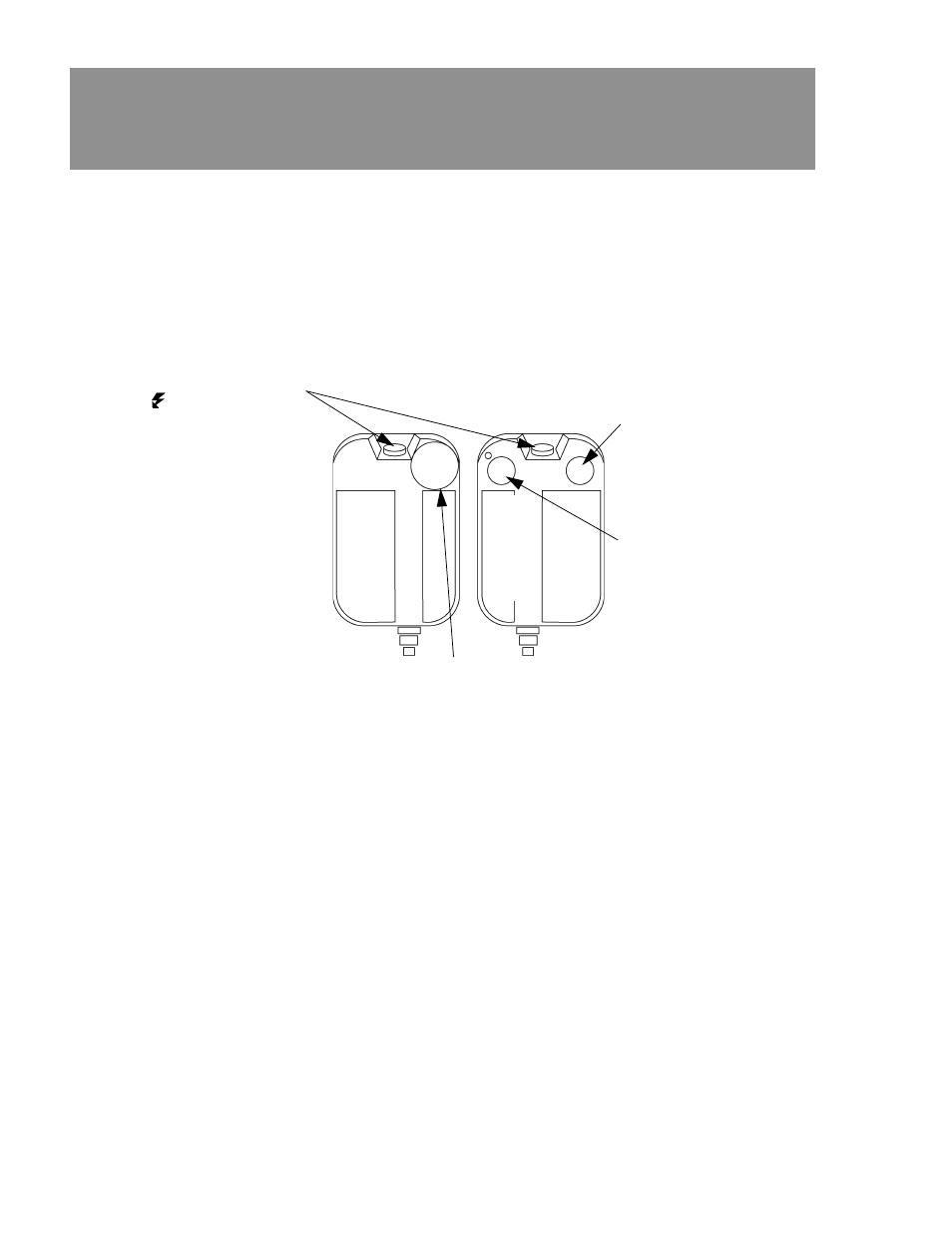

Figure 6-4 Standard Paddles
A standard paddle set:
• Can be used instead of QUIK-COMBO therapy electrodes.
• Provides Lead II monitoring signal when held in the anterior-lateral position.
• Is used for defibrillation, synchronized cardioversion, and QUIK-LOOK ® ECG checks.
To help prevent standard paddles damage:
• Handle with care to prevent damage to paddle surfaces.
• Store in paddle wells on the device to protect the electrode surface.
• Clean dried or wet gel from the electrode surface after each use.
Cleaning Standard Paddles
After each use:
1. Wipe standard paddle electrodes, handles, paddle wells, cables, and connector with mild
disinfectant or soap and water solution. Do not immerse or soak.
2. Dry thoroughly.
A
P
E
X
( SHOCK) BUTTONS
Discharge the defibrillator.
Both buttons must be
pressed simultaneously to
deliver energy. PRINT BUTTON
Activates printer. Function
is identical to PRINT button
on front panel.
CHARGE BUTTON
Charges the defibrillator.
Adjacent CHARGE indicator
flashes when device is
charging and glows steadily
when fully charged.
ENERGY SELECT DIAL
Rotary dial changes energy levels
displayed on the screen.
ENERGY
SELECT
S
T
E
R
N
U
M
CHARGE PRINT
