APPENDIX B NOTES ON TARGET SYSTEM DESIGN
User’s Manual U15331EJ4V1UD
376

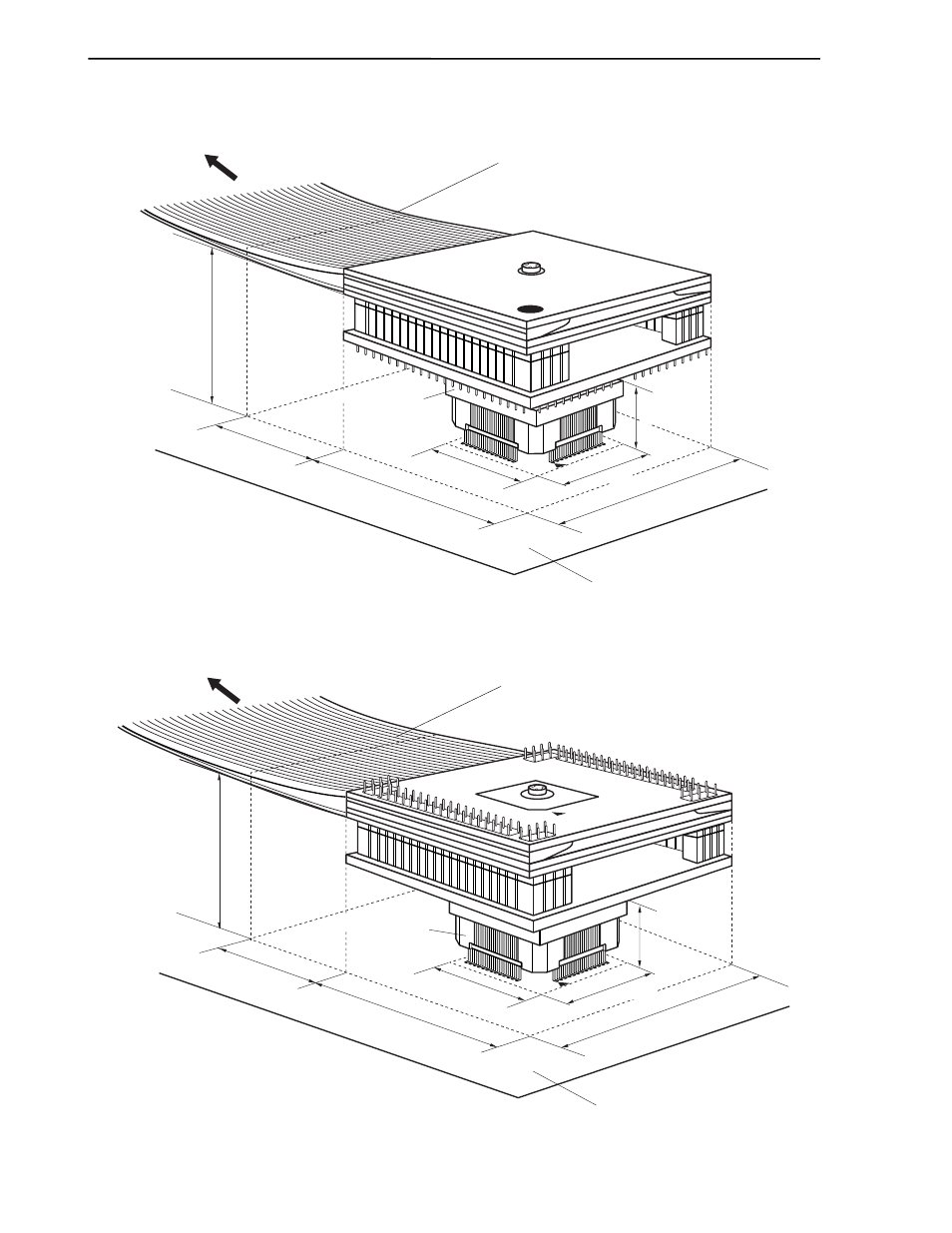

Figure B-2. Connection Conditions of Target System (When NP-80GC-TQ Is Used)
Emulation probe
NP-80GC-TQ
Emulation board
IE-789488-NS-EM1
24.8 mm
25 mm
40 mm
34 mm
Target system
21 mm
Pin 1
11 mm
21 mm
Conversion adapter
TGC-080SBP
Figure B-3. Connection Conditions of Target System (When NP-H80GC-TQ Is Used)
Emulation probe
NP-H80GC-TQ
Emulation board
IE-789488-NS-EM1
25.3 mm
25 mm
42 mm
45 mm
Target system
21 mm
Pin 1
11 mm
Conversion adapter
TGC-080SBP
21 mm
