SPARC Enterprise T5440 Server Service Manual • July 2009

3. Disconnect the CMA.

Pull out the retention pin that secures the cable management arm (CMA) to the
rack rail (

FIGURE: Removing the Server From the Rack on page 68

). Slide the

CMA out of the end of the inner glide. The CMA is still attached to the cabinet,
but the server is now disconnected from the CMA.

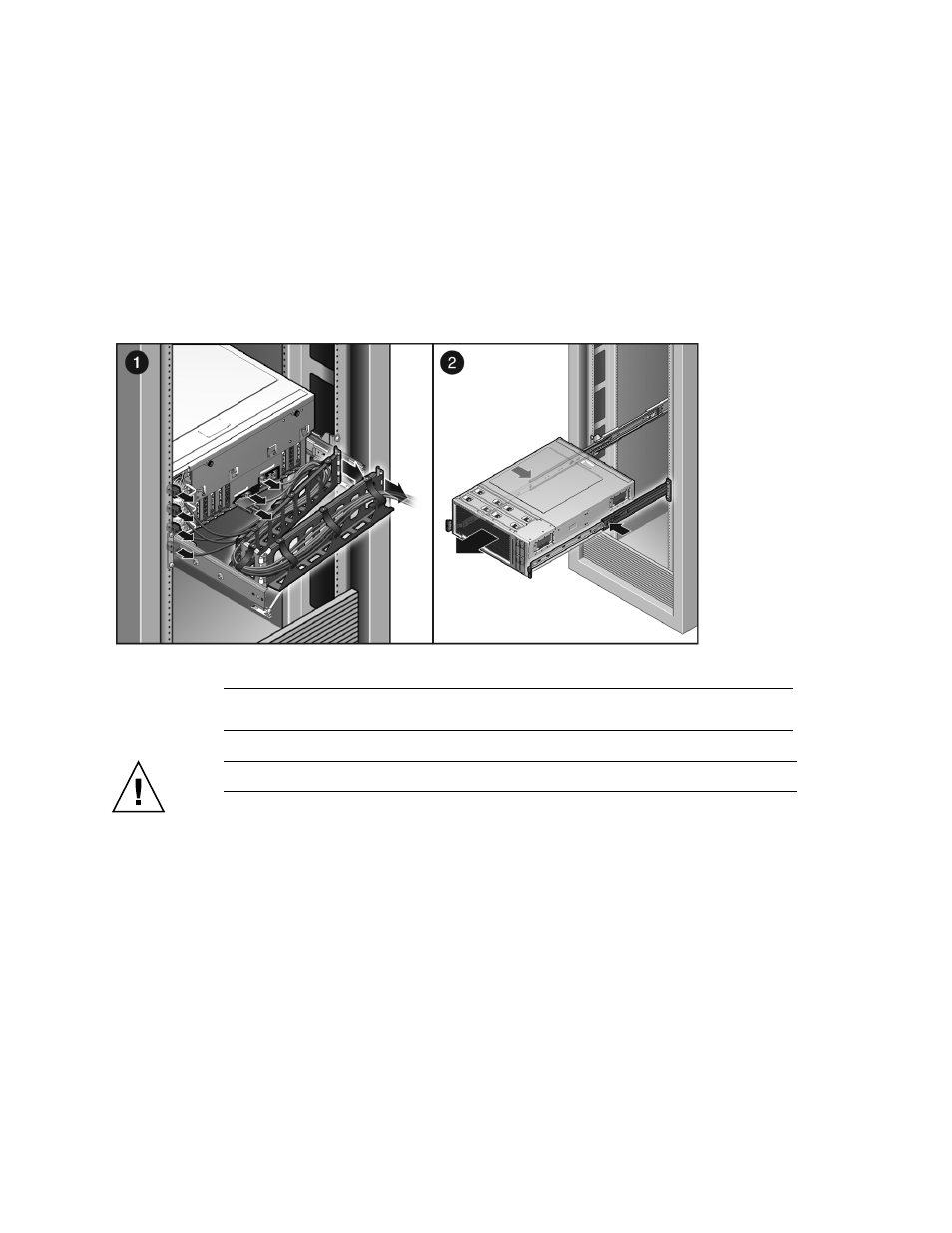

FIGURE:

Removing the Server From the Rack

Caution –

Use two people to dismount and carry the chassis.

4. From the front of the server, press inner rail release buttons and pull the server

forward until it is free of the rack rails.

5. Set the server on a sturdy work surface.

Figure Legend

1

Disconnect system cables and CMA.

2

Press inner rail release buttons to remove the server from the rack.
