Servicing Customer-Replaceable Units 95
■ “Perform Electrostatic Discharge – Antistatic Prevention Measures” on page 69
■ “Remove the Top Cover” on page 69
1. Identify the correct slot for installation.
See “PCIe Device Identifiers” on page 96 and “PCIe Slot Configuration
Guidelines” on page 97 .
2. Open the PCIe card latch.
3. Remove the PCIe filler panel.
4. Insert the PCIe card into its slot.

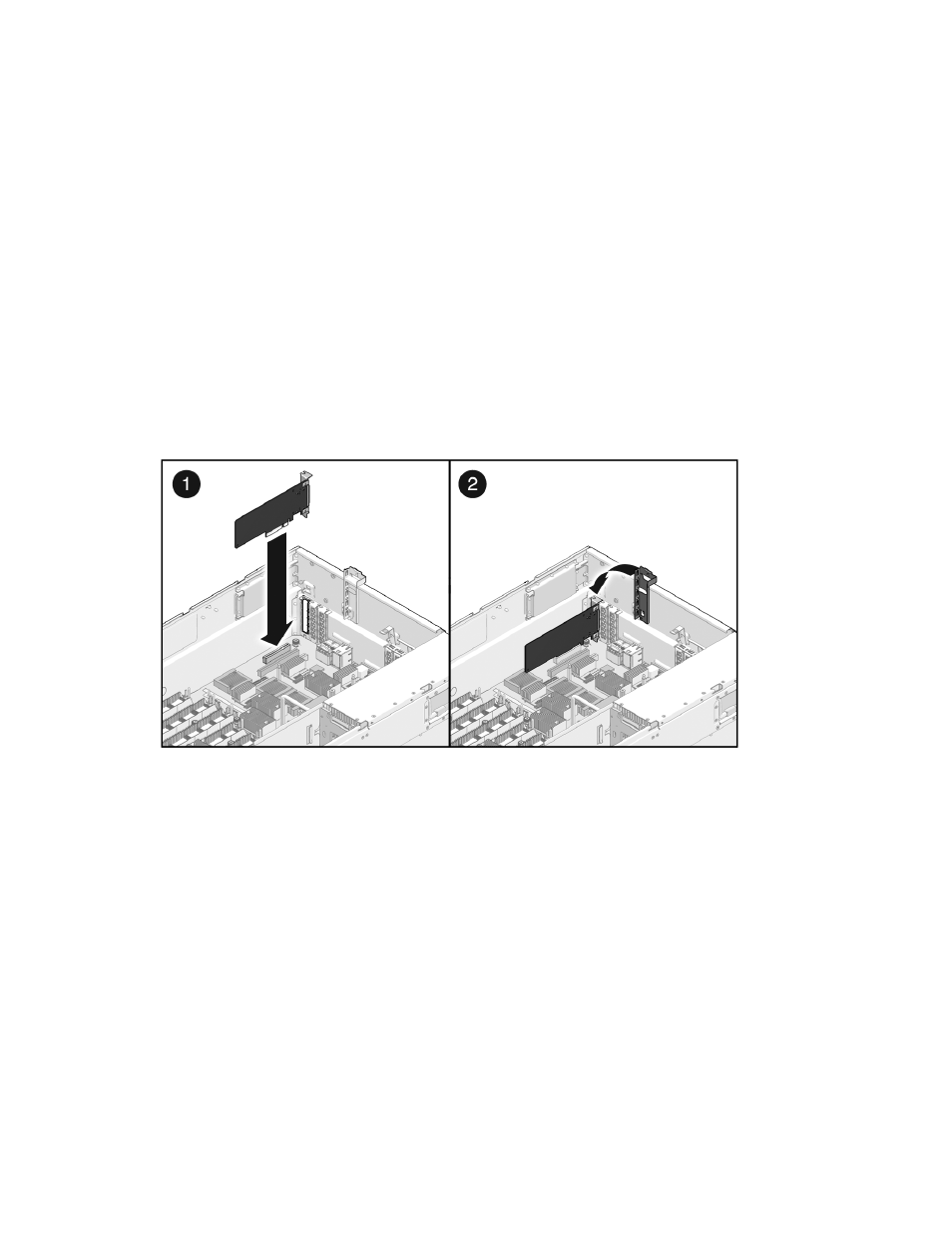

FIGURE: Installing a PCIe Card
5. Close the PCIe card latch.
Next Steps
■ “Install the Top Cover” on page 150
■ “Slide the Server Into the Rack” on page 151
■ “Power On the Server” on page 153
