168 SPARC Enterprise T5440 Server Service Manual • July 2009

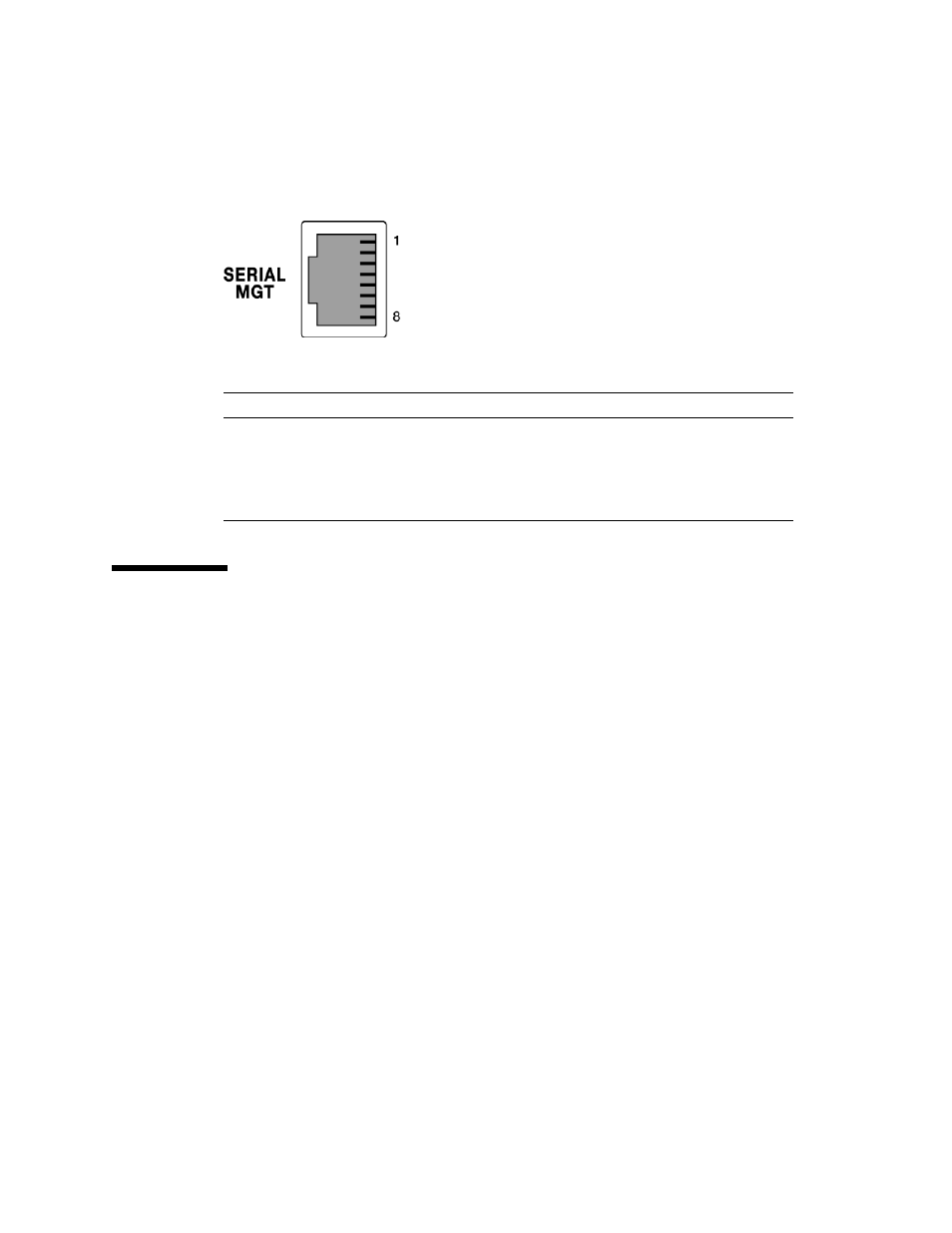

FIGURE: Serial Management Connector Diagram
Network Management Port Connector
Pinouts
The network management connector (labeled NET MGT) is an RJ-45 connector
located on the motherboard and can be accessed from the back panel. This port
needs to be configured prior to use.
TABLE: Serial Management Connector Signals
Pin Signal Description Pin Signal Description
1 Request to Send 5 Ground
2 Data Terminal Ready 6 Receive Data
3 Transmit Data 7 Data Set Ready
4 Ground 8 Clear to Send
