94 SPARC Enterprise T5440 Server Service Manual • July 2009
▼ Install a PCIe Card
1. Identify the correct slot for installation.
2. Open the PCIe card latch.

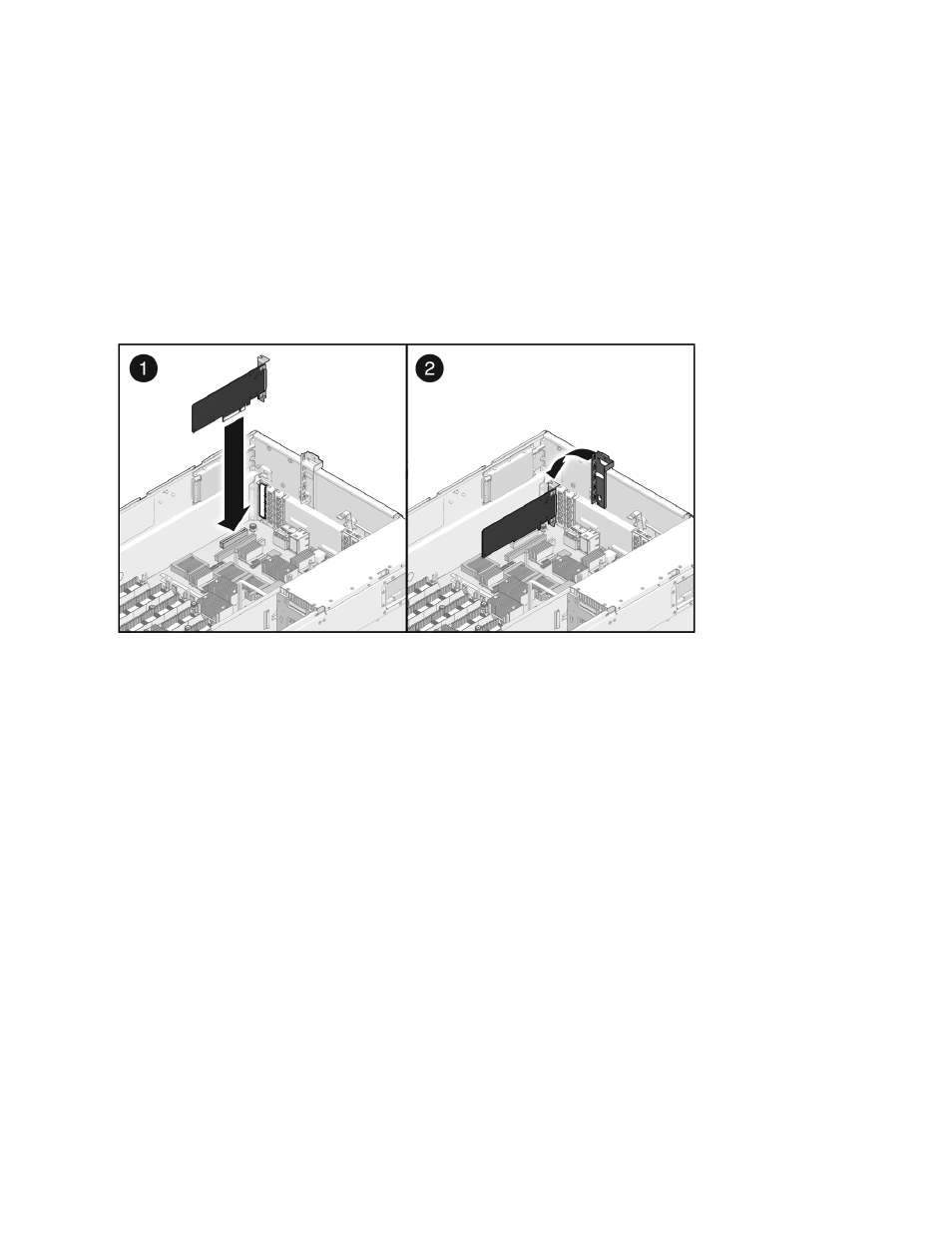

FIGURE: Installing a PCIe Card
3. Insert the PCIe card into its slot.
4. Close the PCIe card latch.
Next Steps
■ “Install the Top Cover” on page 150
■ “Slide the Server Into the Rack” on page 151
■ “Power On the Server” on page 153
▼ Add a PCIe Card
Before you begin, complete these tasks:
■ Read the section, “Safety Information” on page 59 .
■ Power off the server, using one of the methods described in the section, “Powering
Off the System” on page 63 .
■ “Disconnect Power Cords From the Server” on page 65
■ “Extend the Server to the Maintenance Position” on page 66
