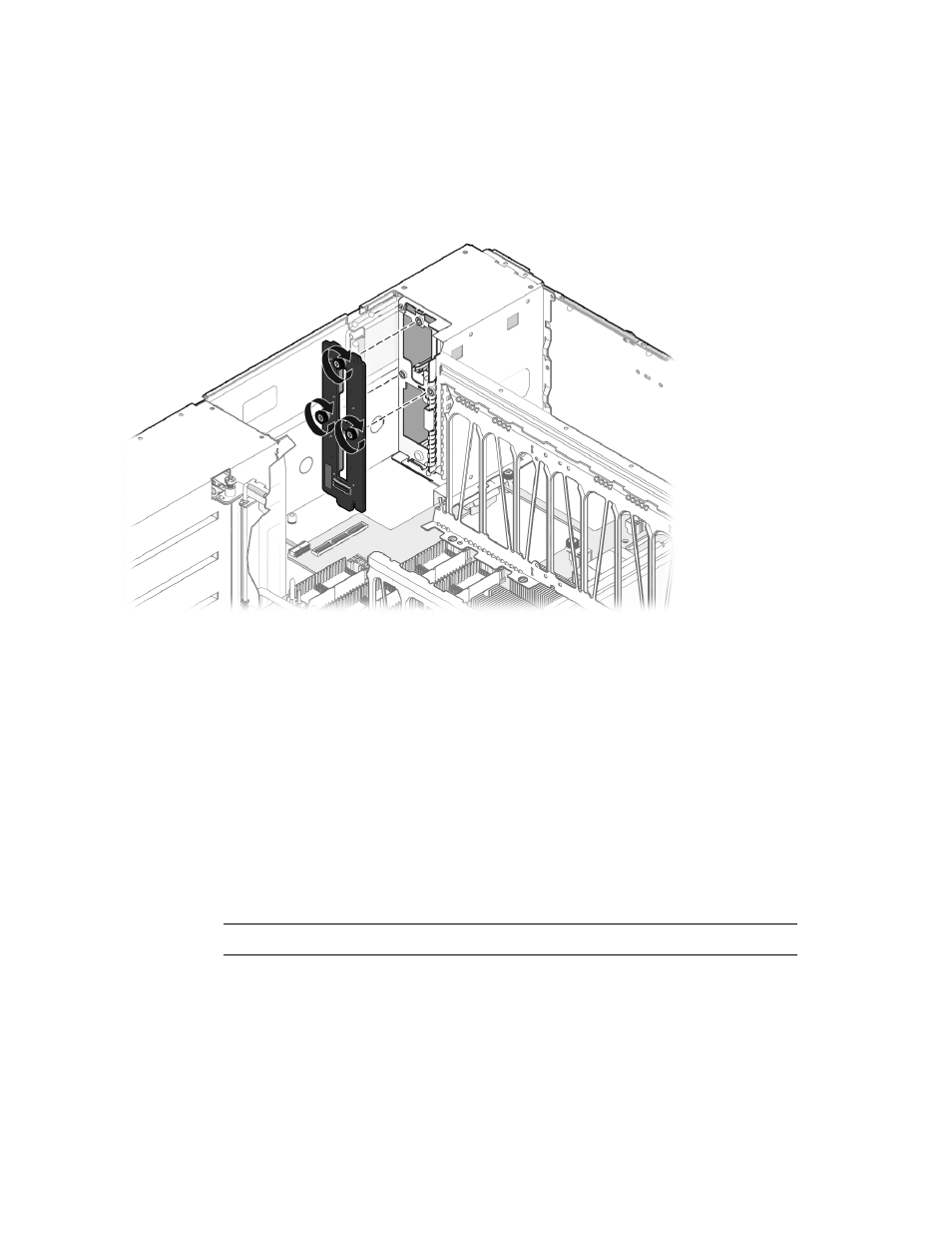

FIGURE: Installing the Hard Drive Backplane
2. Tighten the three captive No. 2 Phillips screws.
3. Plug the cable into its connector on the backplane.
4. Install the flex cable retainer.
Place the retainer into position and tighten the captive No.2 Phillips screw.
Next Steps
■ “Install the Fan Tray Carriage” on page 131
■ “Install a Fan Tray” on page 84
■ “Install a CMP/Memory Module” on page 100
■ “Install the Top Cover” on page 150
■ “Install a Hard Drive” on page 78
Note – You must install the hard drives in the correct slots.
■ “Slide the Server Into the Rack” on page 151
■ “Power On the Server” on page 153
