Related information, Servicing the flex cable assembly – FUJITSU SPARC T5440 User Manual
Page 166
140
SPARC Enterprise T5440 Server Service Manual • July 2009

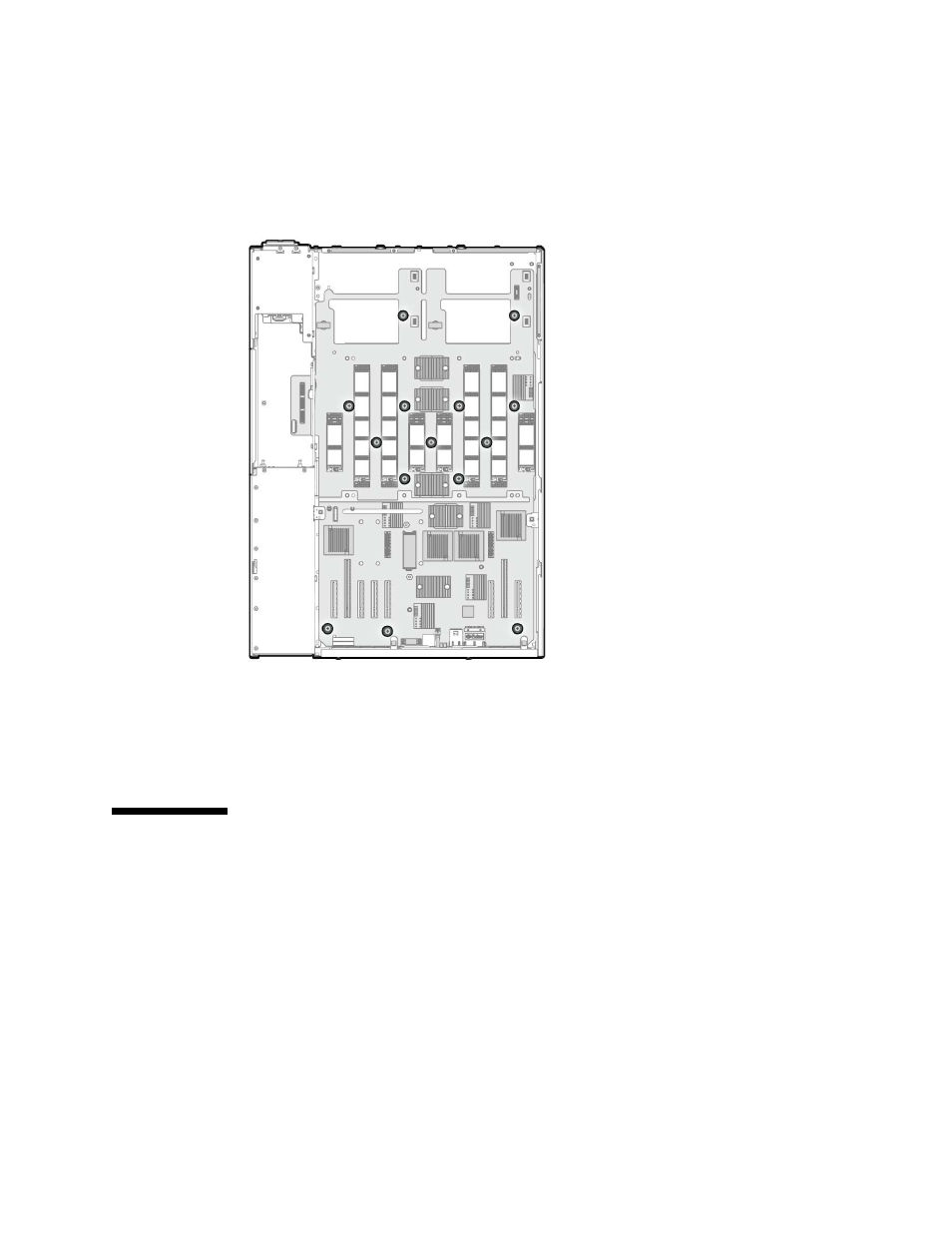

FIGURE:
Motherboard Fastener Locations
Related Information
■
“Servicing the Motherboard” on page 135
Servicing the Flex Cable Assembly
The flex cable assembly provides the power and data connection between the power
supply backplane, hard drive backplane, and motherboard.
Related Information
■
“Safety Information” on page 59
■
