98

SPARC Enterprise T5440 Server Service Manual • July 2009

Servicing CMP/Memory Modules

Up to four CMP/memory modules can be installed in the system. Each CMP module
is paired with a memory module. CMP modules and memory modules are keyed
uniquely to prevent incorrect insertion into the wrong type of slot.

A faulty CMP or memory module is indicated with an alluminated fault LED. An
alluminated module LED also might indicate a faulty FB-DIMM on that module.

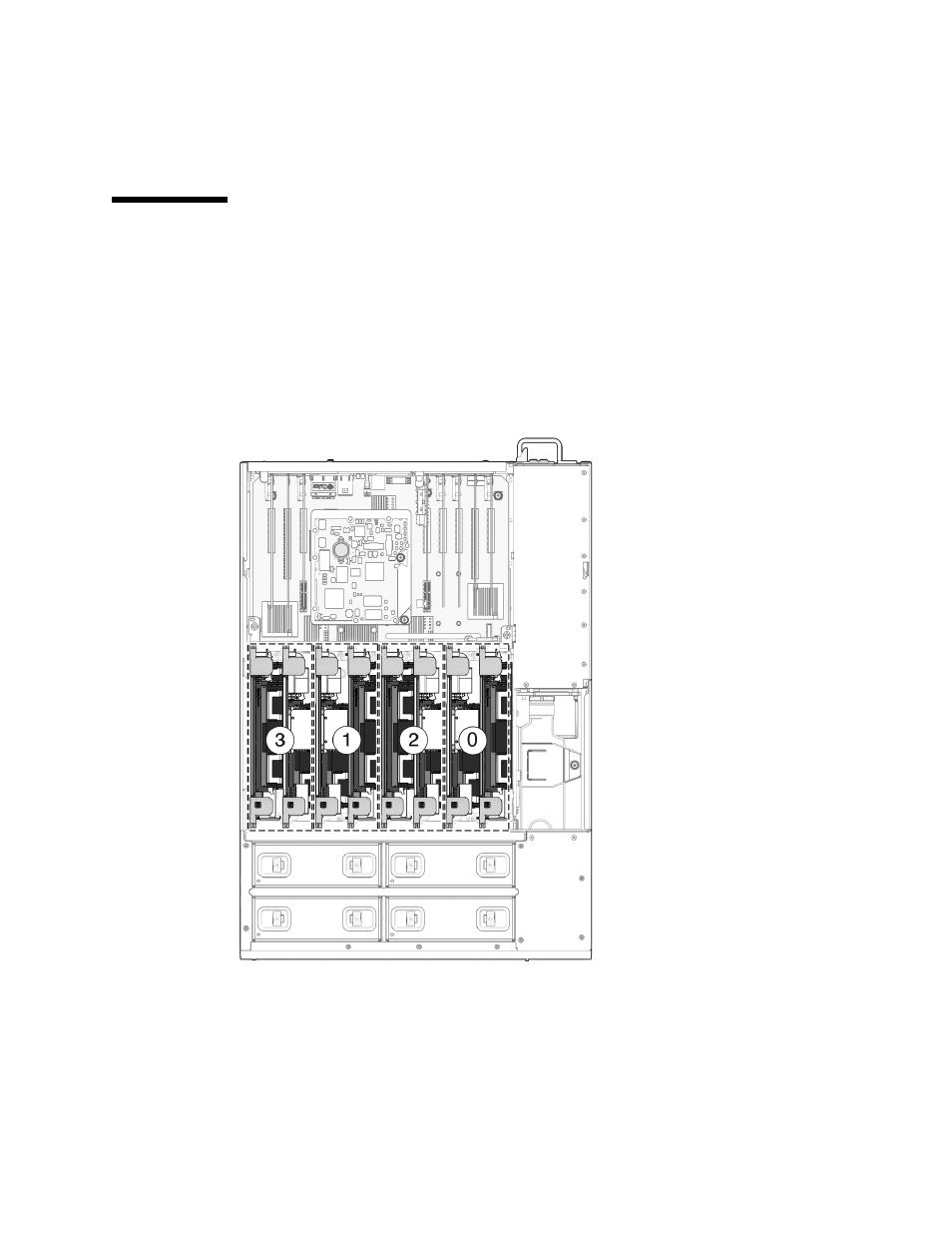

FIGURE:

CMP/Memory Module Pairs
