Install the flex cable assembly – FUJITSU SPARC T5440 User Manual

Page 168

background image

142

SPARC Enterprise T5440 Server Service Manual • July 2009

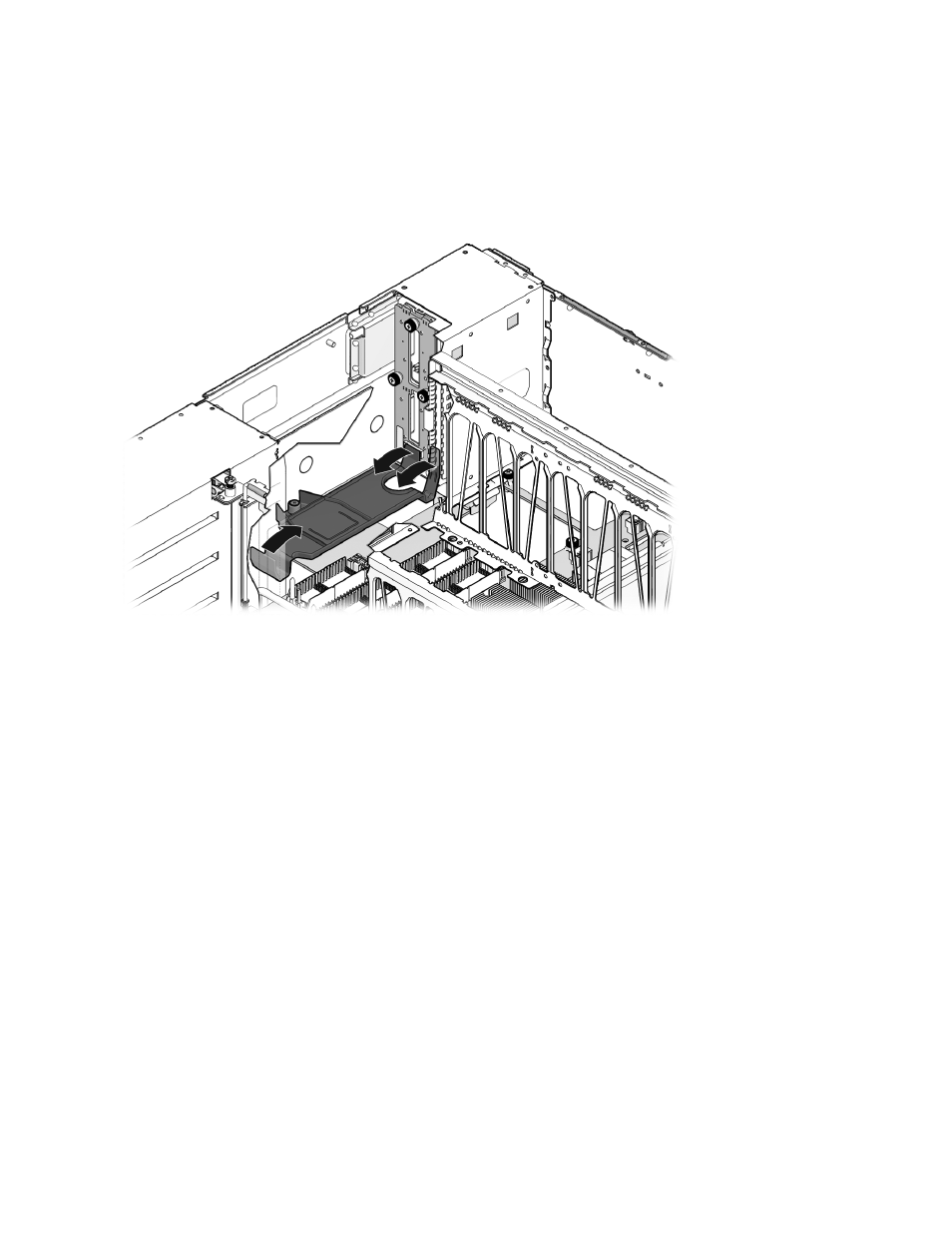

FIGURE:

Removing the Flex Cable Retainer

3. Unplug the flex cable-to-power supply backplane connection.

4. Unplug the flex cable-to-hard drive backplane connection.

5. Unplug the flex cable-to-DVD-ROM drive connection.

6. Unplug the flex cable-to-motherboard connection.

7. Lift the flex cable up and out of the system.

▼ Install the Flex Cable Assembly

1. Ensure the power cables are unplugged.

2. Plug in the motherboard connector.

3. Plug in the hard drive backplane connector.

4. Plug in the DVD-ROM drive connector.

5. Plug in the power supply backplane connector.
