138 SPARC Enterprise T5440 Server Service Manual • July 2009
2. Lower the motherboard down into the chassis.
Guide the flex cable connector through the midwall partition.

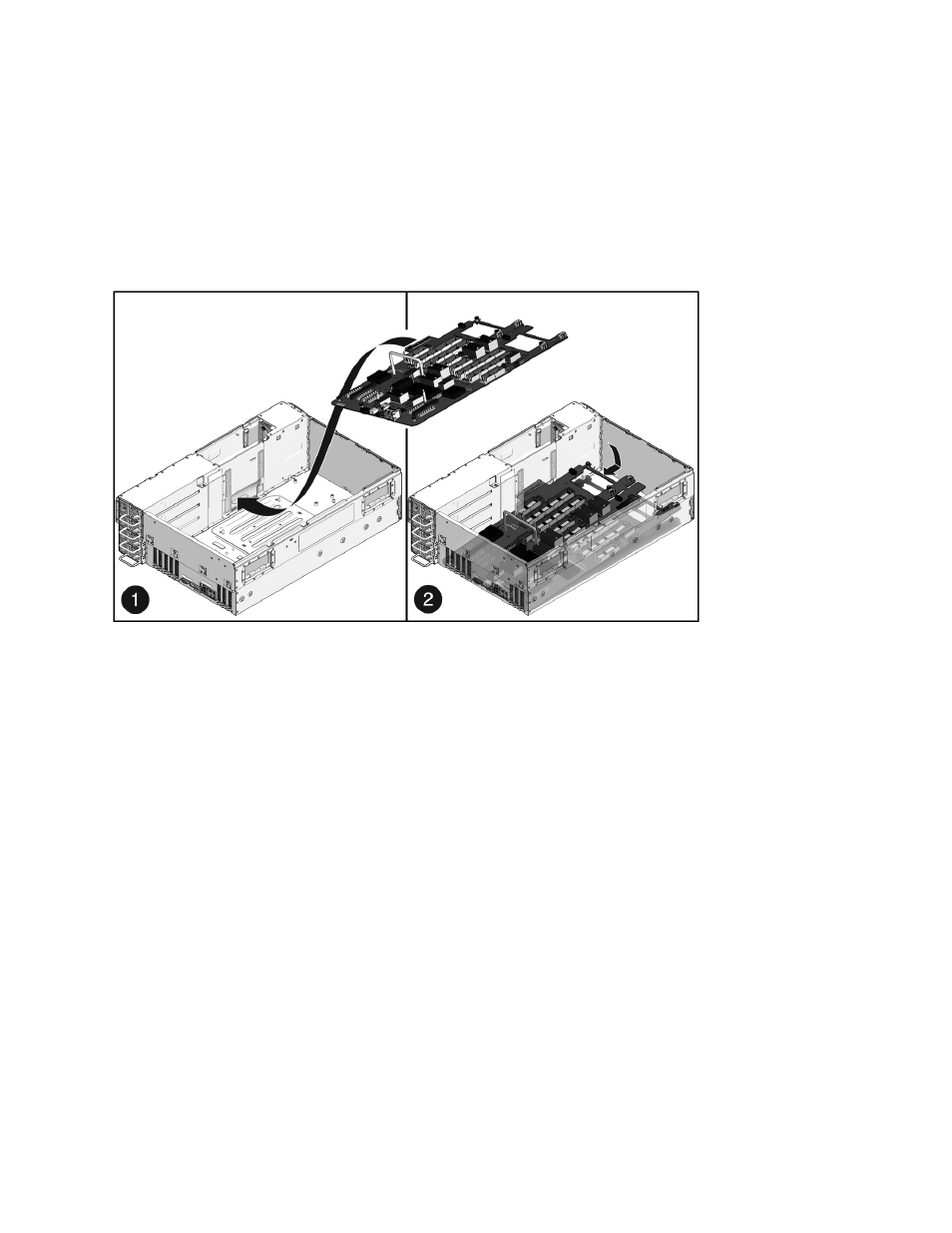

FIGURE: Installing the Motherboard
3. Secure the No. 2 captive Phillips screws.
Ensure that all fasteners are secured. (See FIGURE: Motherboard Fastener
Locations on page 140 .)
4. Lower and secure the midwall partition.
5. Install the six No. 2 Phillips screws that secure the bus bar assembly to the
motherboard.
6. Install the CMP/memory module bracket.
The bracket is secured with six No. 2 Phillips screws.
7. Plug in the auxiliary power cable to J9803.
8. Plug in the flex cable connector to J9801.
9. Install the flex cable retainer.
Place the retainer into position and tighten the captive No. 2 Phillips screw.
10. Plug in the front I/O cable to J9901.
