82 SPARC Enterprise T5440 Server Service Manual • July 2009

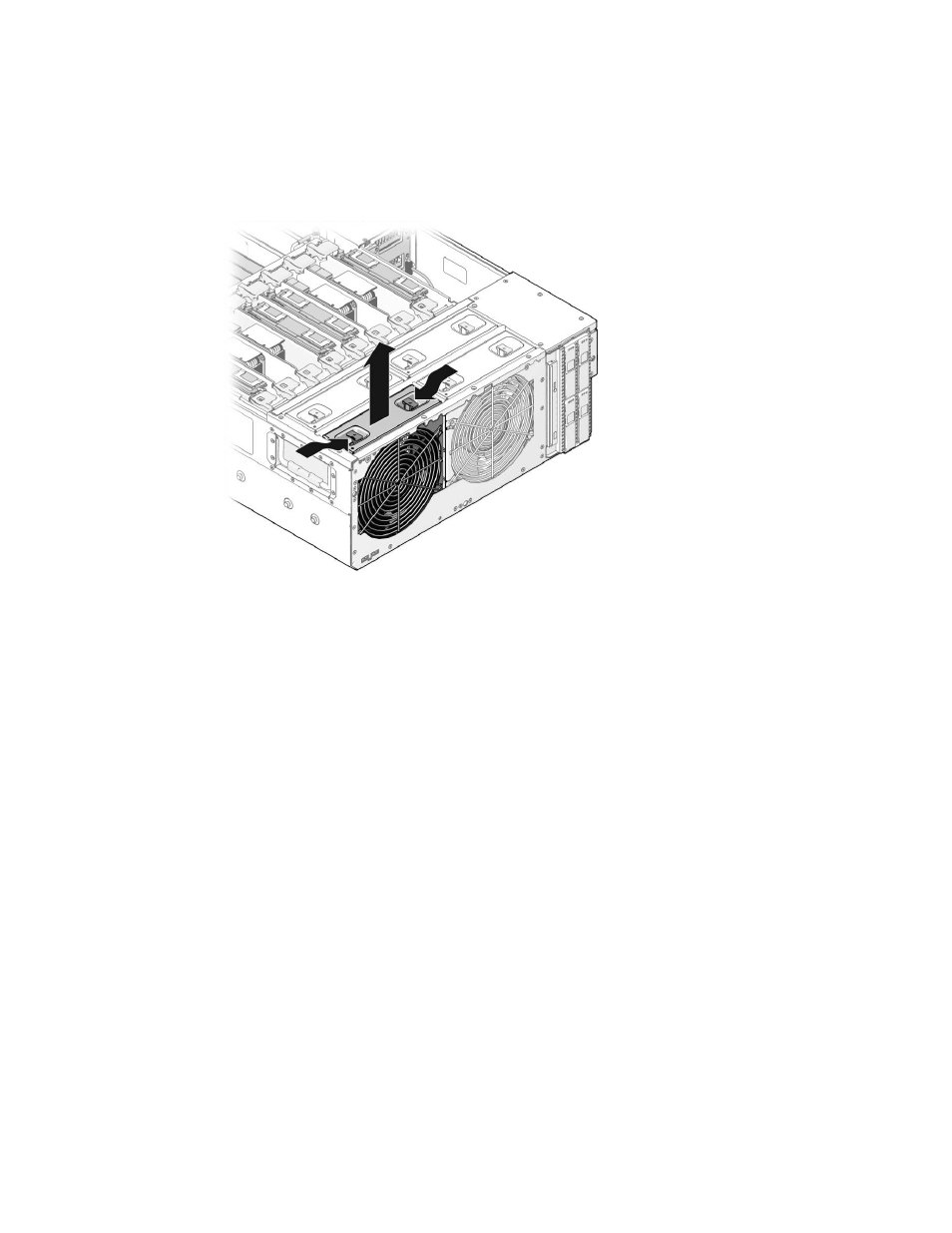

FIGURE: Removing a Fan Tray
▼ Install a Fan Tray (Hot-Swap)
1. Slide the fan tray into its bay until it locks into place.
Ensure that the fan tray is oriented correctly. Airflow in the system is from front to
back.
2. Verify proper fan tray operation.
See “Fan Tray Fault LED” on page 84 .
Next Steps
If you are replacing a faulty fan tray due to an overtemperature condition, monitor
the system to ensure proper cooling.
■ “Slide the Server Into the Rack” on page 151
■ If you performed any additional service procedures, see “Power On the Server” on
page 153 .
