146 SPARC Enterprise T5440 Server Service Manual • July 2009

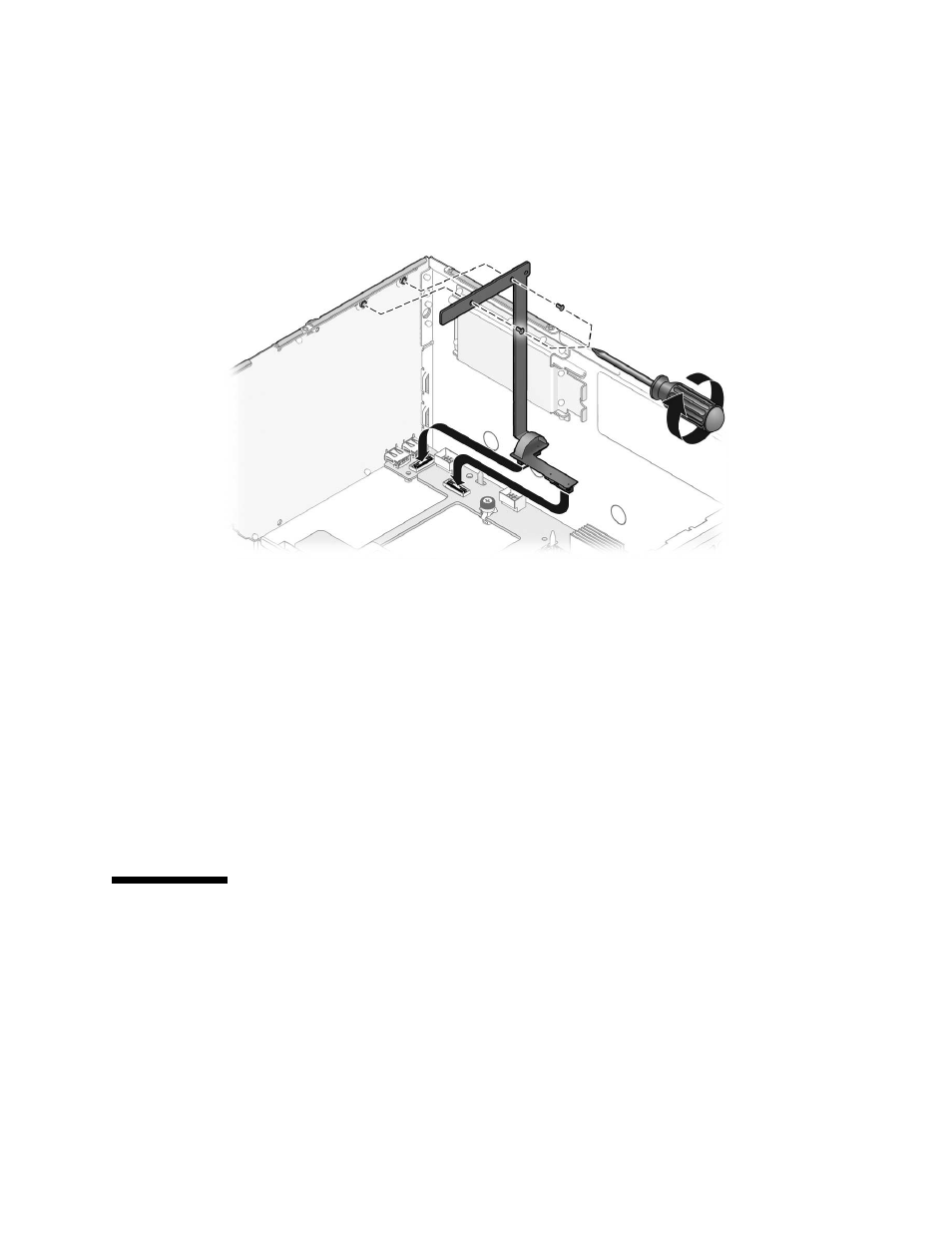

FIGURE: Installing the Front Control Panel
2. Install the two No. 2 Phillips screws.
3. Plug the front control panel connector into the front I/O board.
4. Plug the front control panel connector into J9901 on the motherboard.
Next Steps
■ “Install the Fan Tray Carriage” on page 131
■ “Install a Fan Tray” on page 84
■ “Install the Top Cover” on page 150
■ “Install the Server Into the Rack” on page 150
■ “Connect the Power Cords to the Server” on page 153
■ “Power On the Server” on page 153
Servicing the Front I/O Board
The front I/O board contains two USB connectors. You must remove the front control
panel to service the front I/O board.
