Page 148

122

SPARC Enterprise T5440 Server Service Manual • July 2009

■

Install the IDPROM onto the new service processor. See

▼ Install the Service Processor

1. Ensure that the power cords are disconnected from the system.

2. Lower the service processor into position.

Ensure that the service processor is oriented correctly over the motherboard
connector and the two snap-on standoffs.

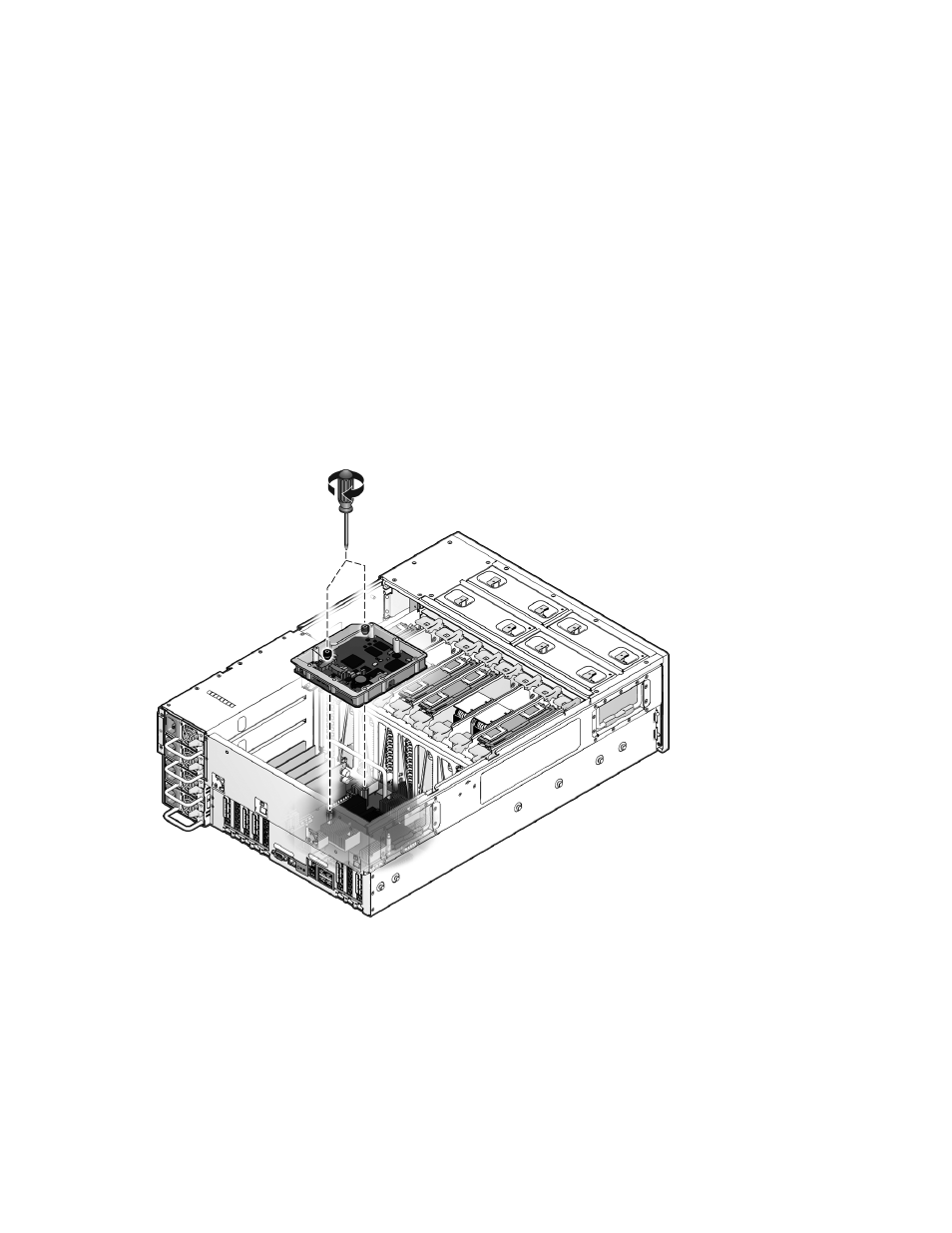

FIGURE:

Installing the Service Processor

3. Press down evenly to plug the service processor into the motherboard.

4. Secure the service processor with the two captive No.2 Phillips screws.
