FUJITSU SPARC T5440 User Manual
Page 197
Connector Pinouts
171
FIGURE:

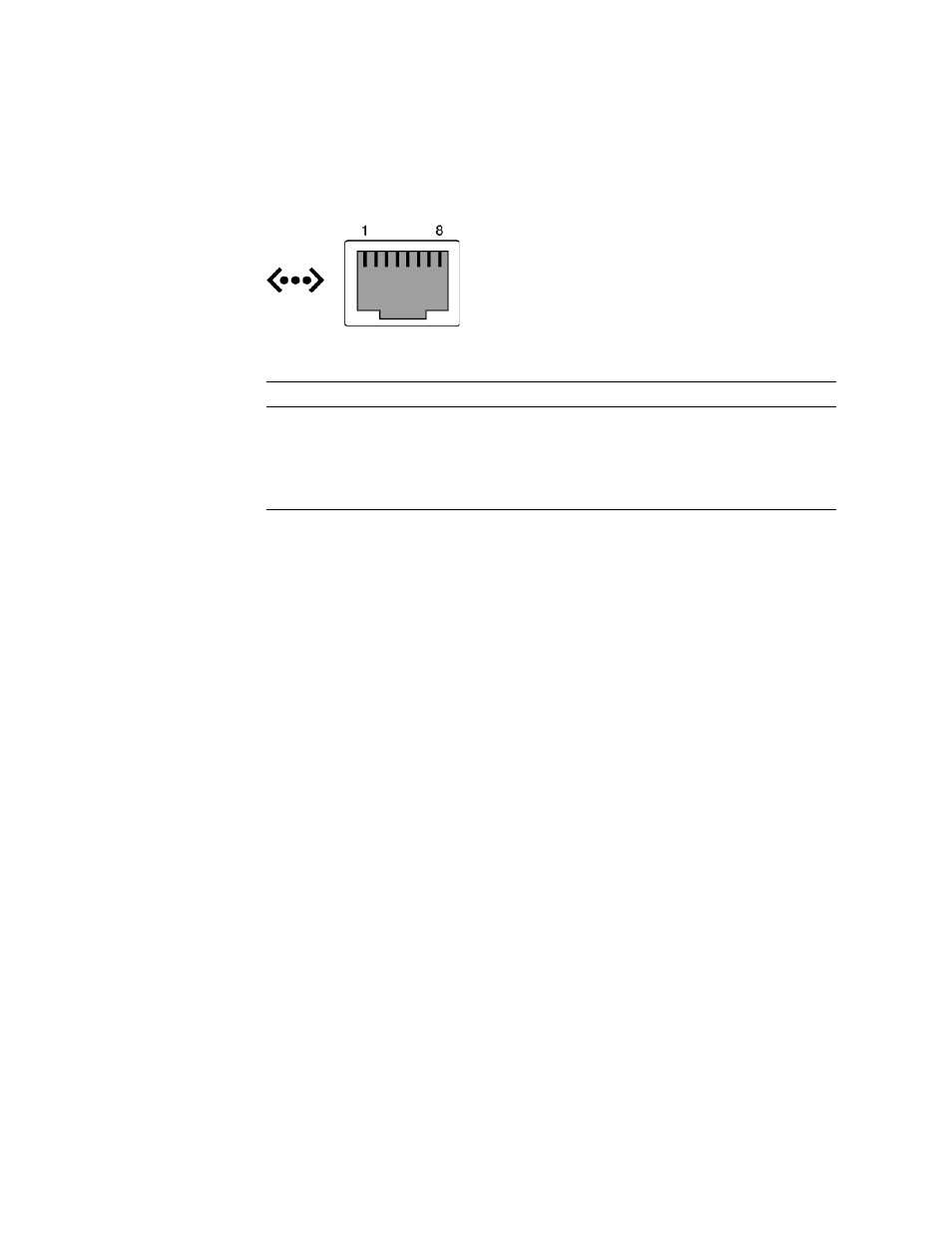

Gigabit Ethernet Connector Diagram
TABLE:
Gigabit Ethernet Connector Signals
Pin
Signal Description
Pin
Signal Description
1
Transmit/Receive Data 0 +
5
Transmit/Receive Data 2 –
2
Transmit/Receive Data 0 –
6
Transmit/Receive Data 1 –
3
Transmit/Receive Data 1 +
7
Transmit/Receive Data 3 +
4
Transmit/Receive Data 2 +
8
Transmit/Receive Data 3 –
