4.14.5 Neighbor

This page provides a status overview for all LLDP neighbors. The displayed table contains a row for each port on which an LLDP

neighbor is detected. The LLDP Neighbor Information screen in

Figure 4-14-4

appears.

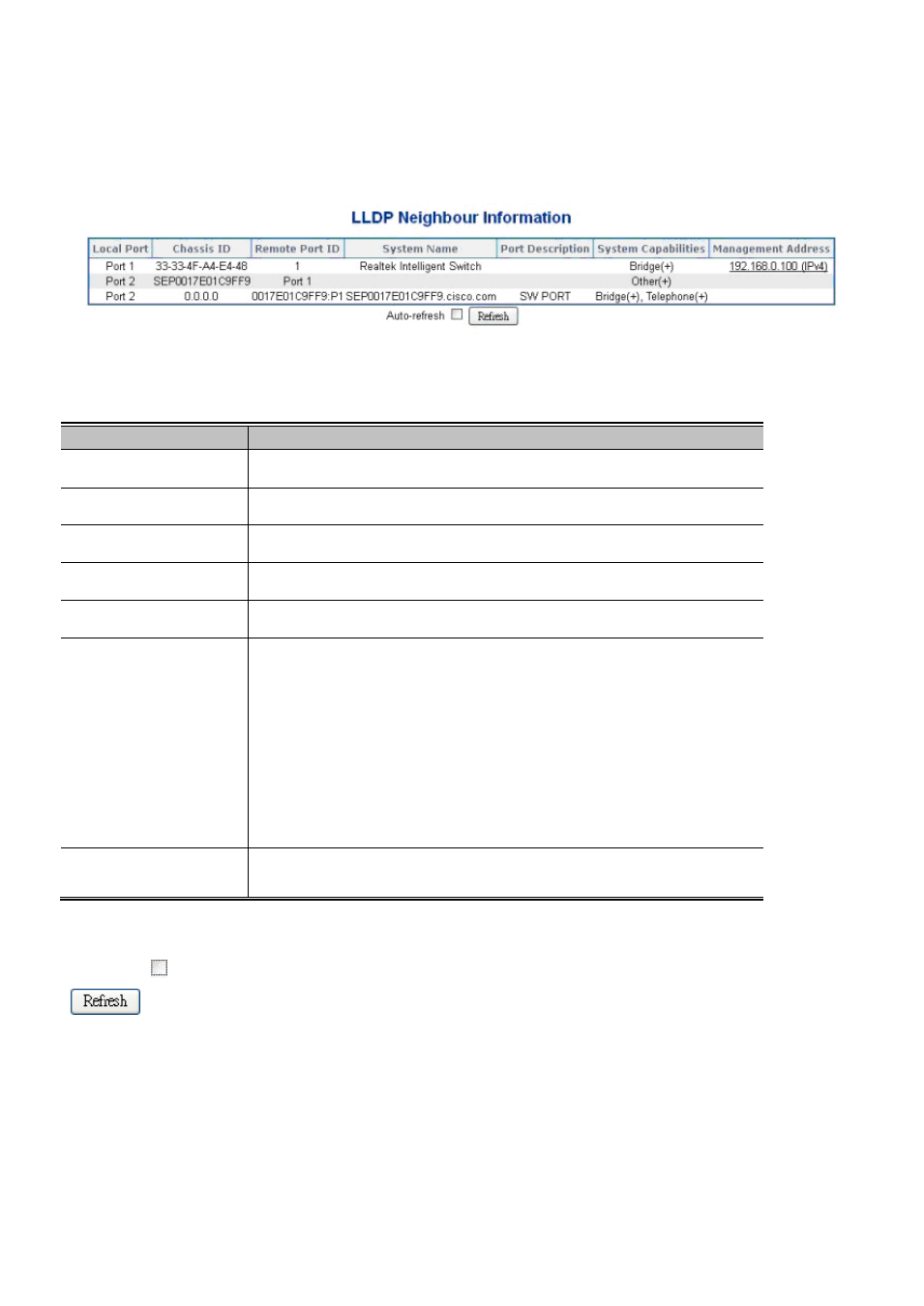

Figure 4-14-4: LLDP Neighbor Information Page Screenshot

The page includes the following fields:

Object

Description

Local Port

The port on which the LLDP frame was received.

Chassis ID

The Chassis ID is the identification of the neighbor's LLDP frames.

Remote Port ID

The Remote Port ID is the identification of the neighbor port.

System Name

System Name is the name advertised by the neighbor unit.

Port Description

Port Description is the port description advertised by the neighbor unit.

System Capabilities

System Capabilities describes the neighbor unit's capabilities. The possible
capabilities are:

1. Other
2. Repeater
3. Bridge
4. WLAN Access Point
5. Router
6. Telephone
7. DOCSIS cable device
8. Station only
9. Reserved

When a capability is enabled, the capability is followed by (+). If the capability is
disabled, the capability is followed by (-).

Management Address

Management Address is the neighbor unit's address that is used for higher layer
entities to assist the discovery by the network management. This could for
instance hold the neighbor's IP address.

Buttons

Auto-refresh

: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.

: Click to refresh the page immediately.

4.14.6 Port Statistics

This page provides an overview of all LLDP traffic. Two types of counters are shown. Global counters are counters that refer to

the whole stack, switch, while local counters refer to counters for the currently selected switch. The LLDP Statistics screen in

Figure 4-14-5

appears.
