 Static:
The Managed Switch always uses the specified port as an IGMP
Router port. Use this mode when you connect an IGMP multicast
server or IP camera which applied with multicast protocol to the port.
 None:
The Industrial Managed Switch will not use the specified port as an IGMP Router
port. The Managed Switch will not keep any record of an IGMP router being
connected to this port. Use this mode when you connect other IGMP multicast
servers directly on the non-querier Managed Switch and don’t want the multicast
stream to be flood to uplink switch through the port that connected to the IGMP
querier.
• Fast Leave Enable the fast leave on the port.
• Throtting
The Configuration All with available values will assign to whole items.
Enable to limit the number of multicast groups to which a switch port can belong.
All means all ports will have one specific setting.
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.8.3 IGMP Snooping VLAN Configuration
Each page shows up to 99 entries from the VLAN table, default being 20, selected through the "entries per page" input field.
When first visited, the web page will show the first 20 entries from the beginning of the VLAN Table. The first displayed will be the
one with the lowest VLAN ID found in the VLAN Table.
The "VLAN" input fields allow the user to select the starting point in the VLAN Table. The IGMP Snooping VLAN Configuration
screen in Figure 4-8-6 appears.

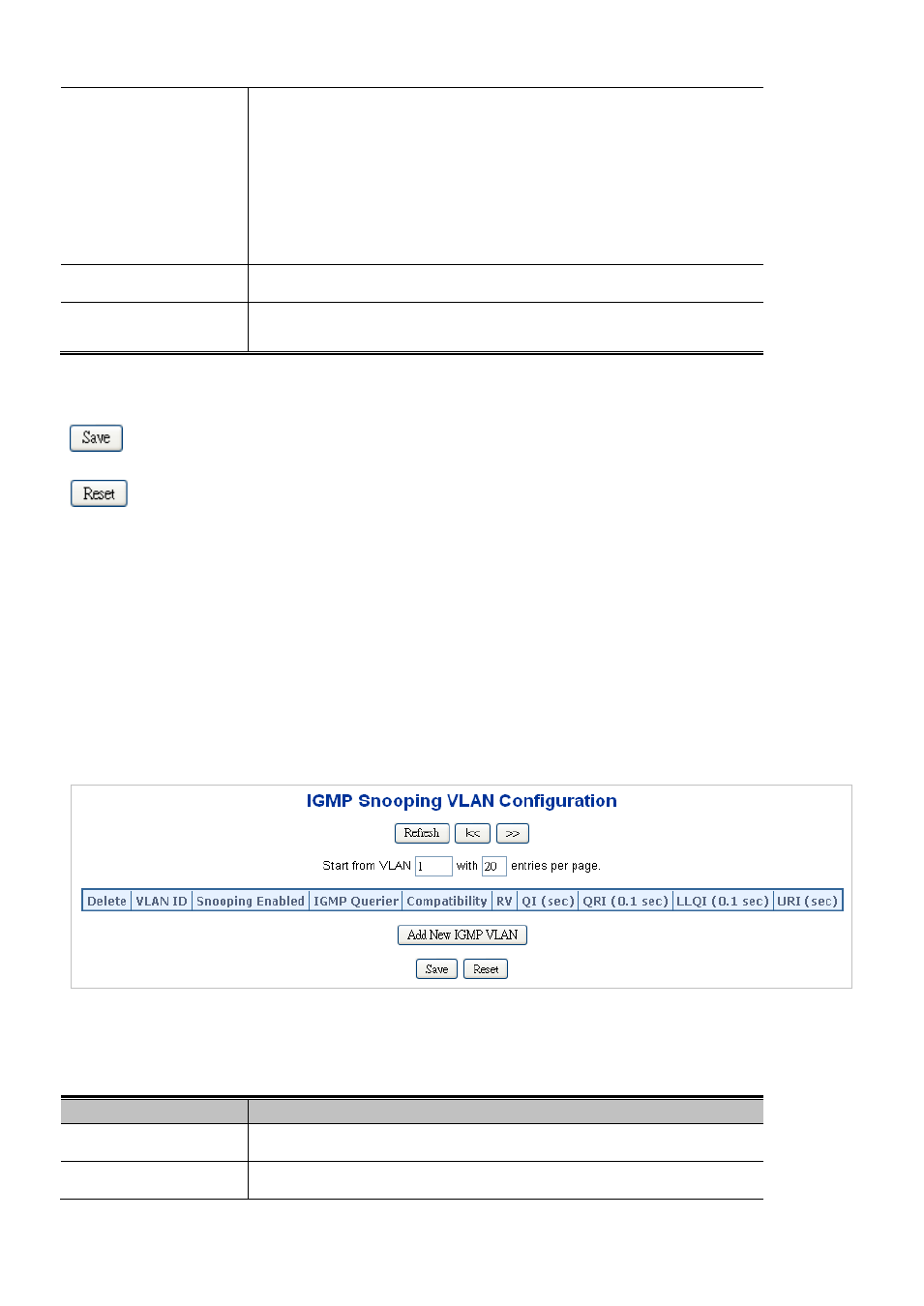

Figure 4-8-6: IGMP Snooping VLAN Configuration Page Screenshot
The page includes the following fields:
Object Description
•
VLAN ID The VLAN ID of the entry.
• IGMP Snooping Enable
Enable the per-VLAN IGMP Snooping. Only up to 64 VLANs can be selected.
