4.5.4 LACP Port Status
This page provides a status overview for LACP status for all ports. The LACP Port Status screen in
Figure 4-5-6
appears.

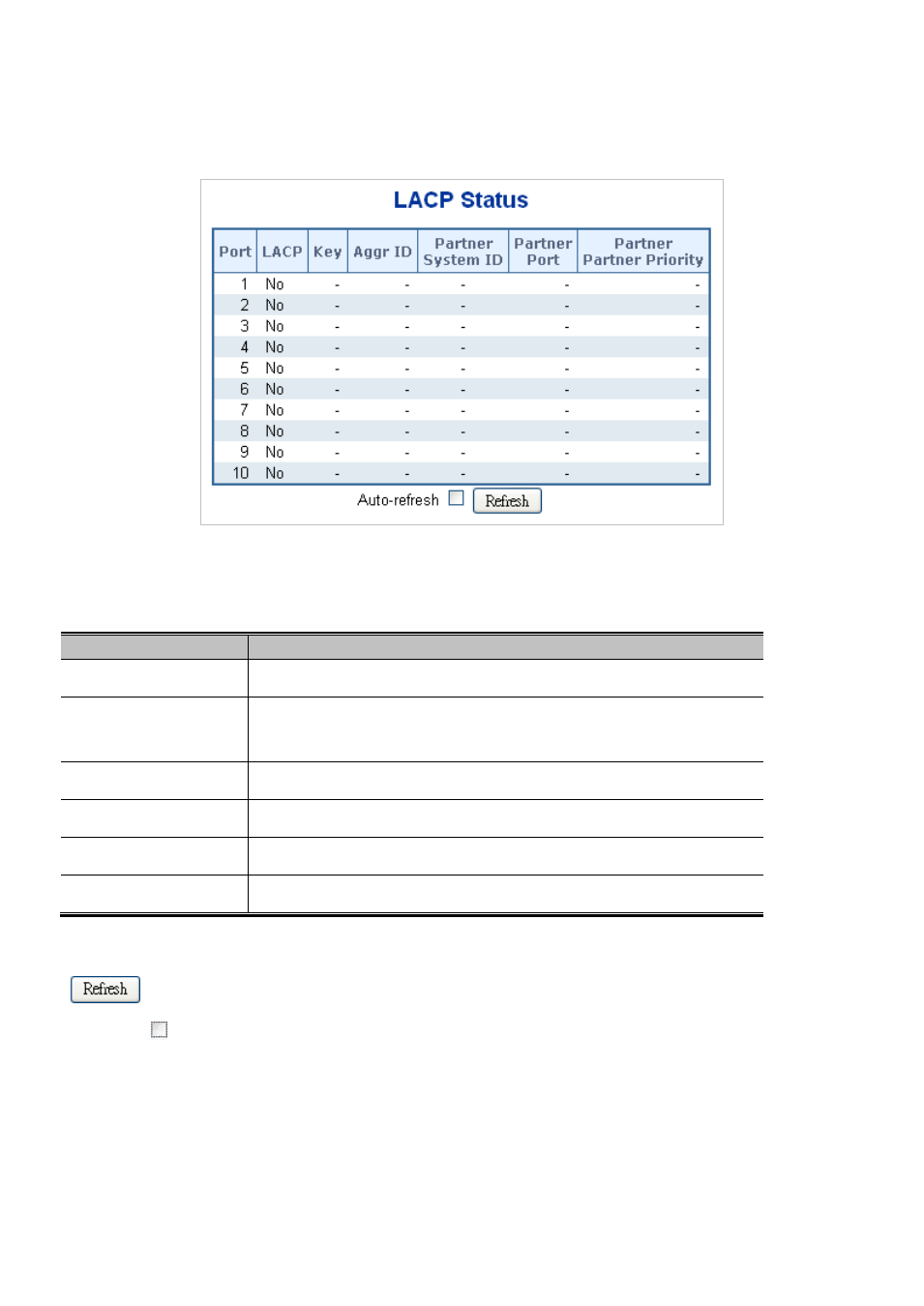

Figure 4-5-6: LACP Status Page Screenshot
The page includes the following fields:
Object
Description
•
Port
The switch port number.
•
LACP
'Yes' means that LACP is enabled and the port link is up.
'No' means that LACP is not enabled or that the port link is down.
'Backup' means that the port could not join the aggregation group but will join if
other port leaves. Meanwhile it's LACP status is disabled.
•
Key
The key assigned to this port. Only ports with the same key can aggregate
together.
•
Aggr ID
The Aggregation ID assigned to this aggregation group.
IDs 1 and 2 are GLAGs while IDs 3-14 are LLAGs.
•
Partner System ID
The partners System ID (MAC address).
• Partner Port
The partner port number connected to this port.
Buttons
: Click to refresh the page immediately.
Auto-refresh
: Automatic refresh occurs every 3 seconds.
4.5.5 LACP Port Statistics
This page provides an overview for LACP statistics for all ports. The LACP Port Statistics screen in
Figure 4-5-7
appears.
