Root Port

The switch port currently assigned the root port role.

Root Cost

Root Path Cost. For the Root Bridge this is zero. For all other Bridges, it is the sum
of the Port Path Costs on the least cost path to the Root Bridge.

Topology Flag

The current state of the Topology Change Flag for this Bridge instance.

Topology Change Last

The time since last Topology Change occurred.

Buttons

Auto-refresh

: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.

: Click to refresh the page immediately.

4.7.4 CIST Port Configuration

This page allows the user to inspect the current STP CIST port configurations, and possibly change them as well. The CIST Port

Configuration screen in

Figure 4-7-6

appears.

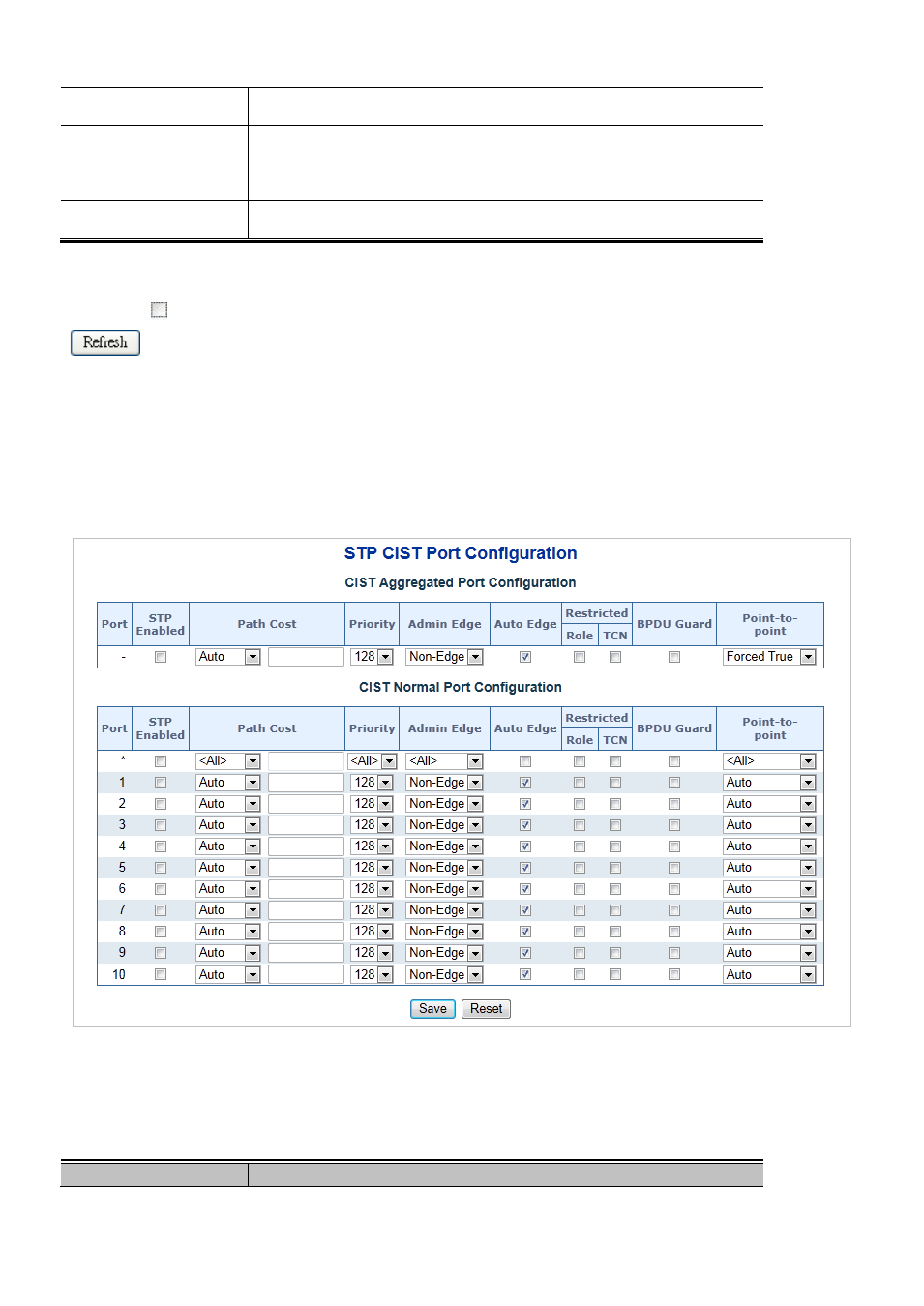

Figure 4-7-6 : STP CIST Port Configuration Page Screenshot

The page includes the following fields:

Object

Description
