IFS NS3552-8P-2S AND NS3550-2T-8S User Manual
136
4.6.7 VLAN Port Status
This page provi
Figure 4-6-5
appears.

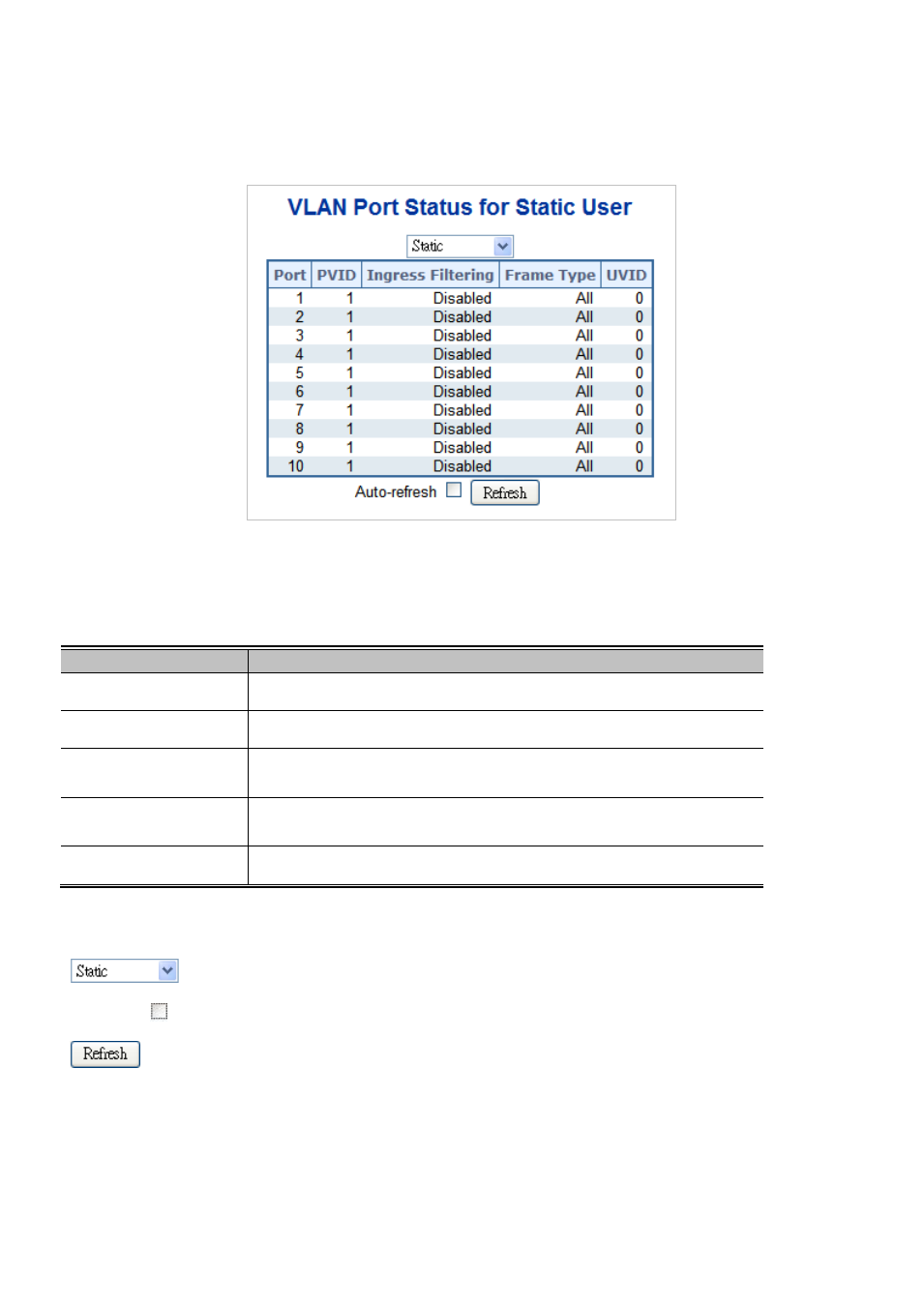

Figure 4-6-5: VLAN Port Status for Static User Page Screenshot
The page includes the following fields:
Object
Description
• Port
The logical port for the settings contained in the same row.
• PVID
Shows the VLAN identifier for that port. The allowed values are 1 through 4095.
The default value is 1.
• Ingress Filtering
Shows the ingress filtering for a port. This parameter affects VLAN ingress
processing. If ingress filtering is enabled and the ingress port is not a member of
the classified VLAN of the frame, the frame is discarded.
• Frame Type
Shows whether the port accepts all frames or only tagged frames. This parameter
affects VLAN ingress processing. If the port only accepts tagged frames,
untagged frames received on that port are discarded.
• UVID
Shows UVID (untagged VLAN ID). Port's UVID determines the packet's behavior
at the egress side.
Buttons
: Select VLAN Users from this drop down list.
Auto-refresh
: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the page immediately.
