5-34
Chapter 5 Function Settings
5

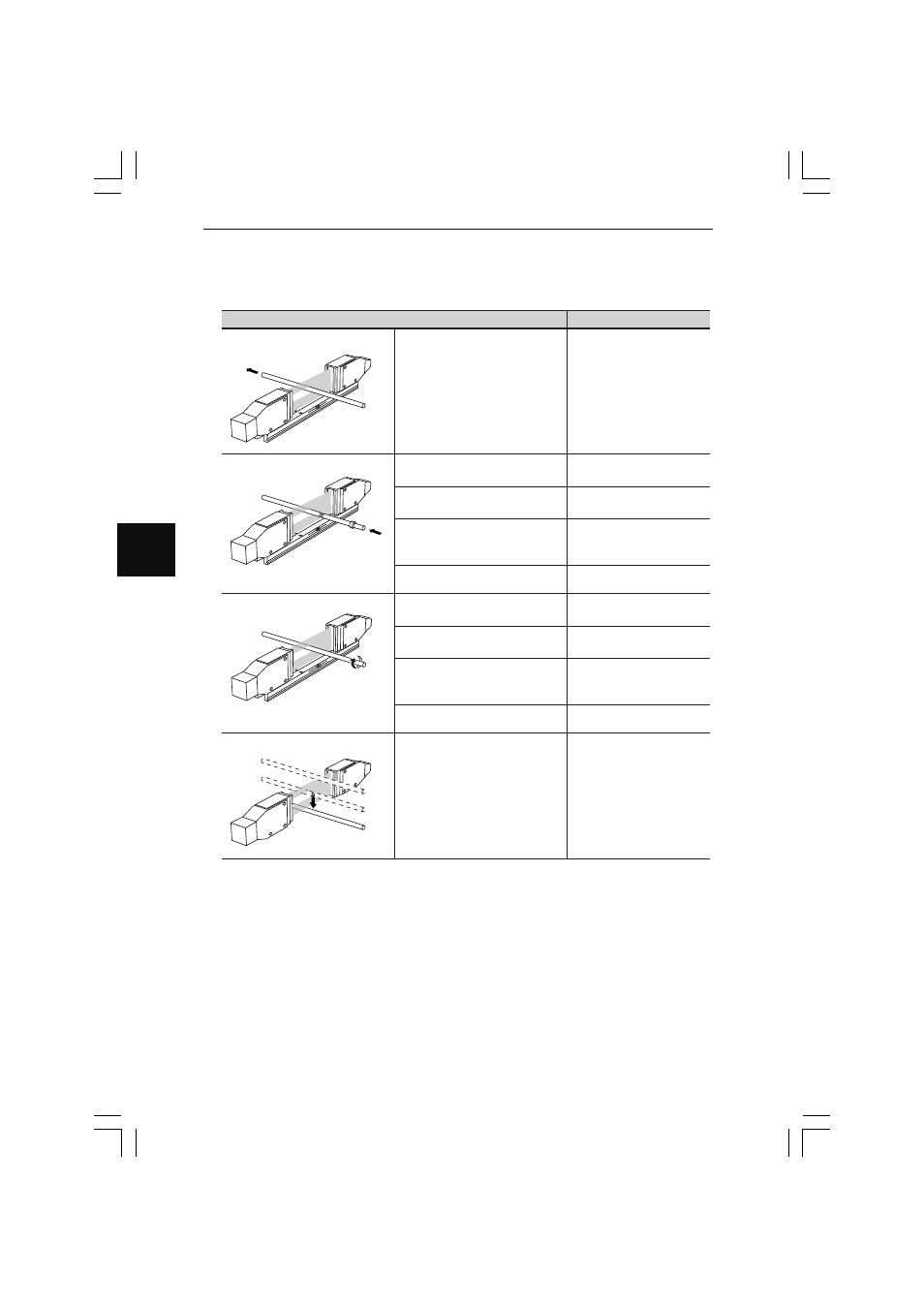

Application Example of Measuring modes
Select the measurement mode according to the type of target and measuring condition.
The following applications are typical examples of measurement in a variety of Measur-
ing modes.
Application Applicable RUN mode
Normal
Continuous measurement of
wire, tube, or fiber.
Peak Hold
Auto Peak Hold Measurement of maximum
value within specified period.
Bottom Hold
Auto Bottom Hold Measurement of minimum
value within specified period.
Peak-to-peak Hold
Auto Peak-to-peak Hold
Measurement of maximum-to-
minimum value within specified
period.
Average Hold Measurement of average
values within specified period.
Peak Hold
Auto Peak Hold Measurement of maximum
value per rotation.
Bottom Hold
Auto Bottom Hold Measurement of minimum
value per rotation.
Peak-to-peak Hold
Auto Peak-to-peak Hold Measurement of maximum-to-
minimum fluctuation or
eccentricity per rotation.
Average Hold Measurement of average value
per rotation.
Sample Hold 1
Sample Hold 2
Self-timing Hold
Single workpiece
measurement.
