Chapter 2 Basic Operation of the LS-7600 Series

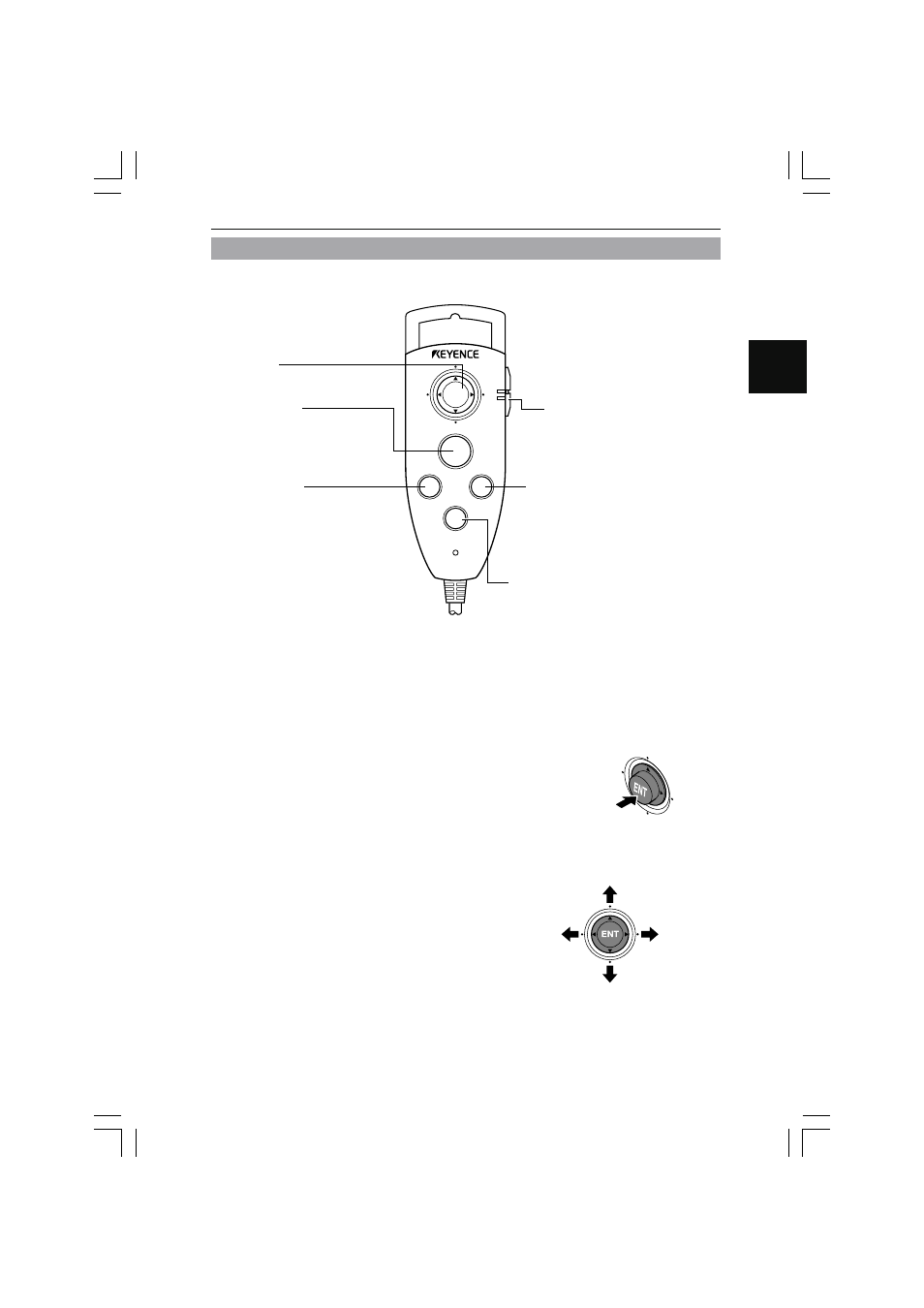

Remote Control Console Functions and Nomenclature
[SCREEN] key
Press this key to change the
screen display.
(Page 4-2, Section 4-1 Switching
Display Screen)
[Mode selection slide switch]
key
Slide this key upward or
downward to set the LS-7600
Series to RUN mode or PROG
mode. [ESCAPE] key
Press this key to quit or abort the
set item. When in the Run mode,
this key has the same function as
the RESET input terminal on the
rear panel.
[ENT] key
Use this key to move the cursor
or input the set value change.
[ZERO] key
Press this key to use the automatic zero
function. The key has the same function
as the ZERO input terminal of the rear
panel.
(Page 4-10, Section 4-4 Automatic Zero
Function)
[HOLD] key
Press this key to hold the measured
value. The key has the same function
as the TIMING input terminal on the
rear panel.
(Page 4-9, Section 4-3 Hold
Function)
ENT
RUN
PROG
ESCAPE
SCREEN HOLD
ZERO
POWER
Press
Moving right Moving left
Moving up
Moving down
■
ENT Key
● Pressing Key at Center Position
• To select menu items.
• To input entered values.
● Moving Key in Arrow Directions
Press the key upward, downward, left, or
right for either of the following purposes.
• To move between items.
• To input numeric values, such as toler-
ance values.
