8-8
Chapter 8 RS-232C
8
Commands in Detail
The following section provides information on commands and responses that the LS-7600
Series returns when commands are correctly processed. For error responses, refer to
Outline of Command Formats on page 8-6.
Refer to Timing Chart on page 8-24 for response delays.
■ Measured Value Output
The LS-7600 Series can output a measured value.
The following types of measured value output are possible.
• Measured value output:
The measured value is output.
• Statistical processing result output: The response is output when the statistical
processing function is turned OFF. Statistically
processed data will be output with R/O com-
mands.
• Measured value re-output: The previous measured value is output again.

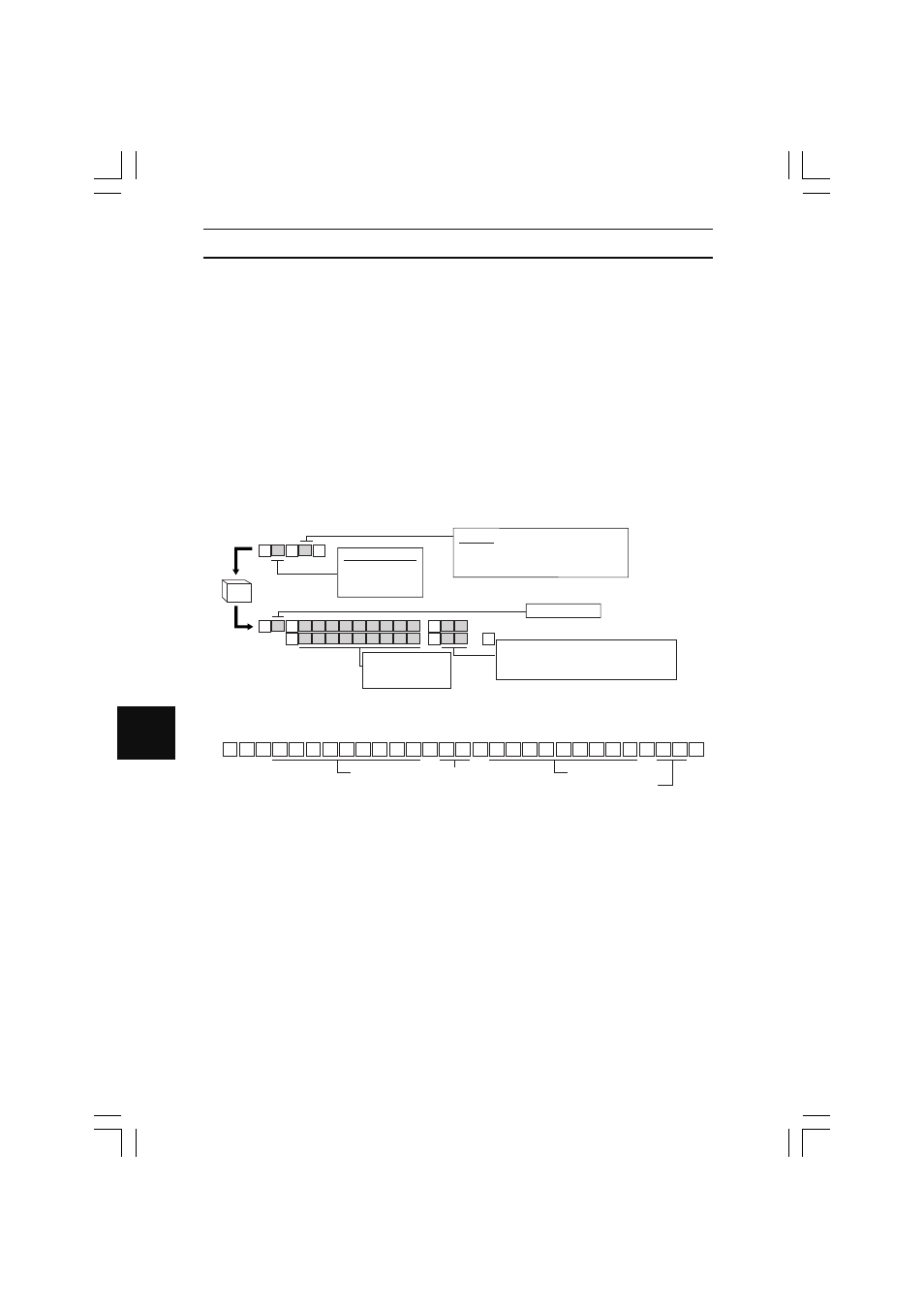

● Measured Value Output
LS
Output set number
0: OUT1+OUT2
1: Only OUT1
2: Only OUT2
Output type
0 : Measured value
1 : Measured value + Comparator result
2 : Statistically processed data
Output number
Comparator result: HH, HI, GO, LO, or LL
Added if the output value is 1. Omitted if the
output value is 0.
Command
Response (in case of measured value output)
M q , r cr
M q
[
, s s s s s s s s s t t [ ]
, s s s s s s s s s t
,
,
t cr [ ] ]
Measured value
format
(See page 8-7)
Example: The following data will be output if the output set number is 0 and the output
value is 1.
M 0 , + 0 1 . 3 4 5 0 , H I , + 2 4 . 6 2 3 4 0 , L O 2 cr
OUT1 measured
value OUT1 comparator
result OUT2 measured value
OUT2 comparator result
The same format is used for group processing output.
The result of group processing is always output as OUT2.
