4-7
Chapter 4 Operation Control
4

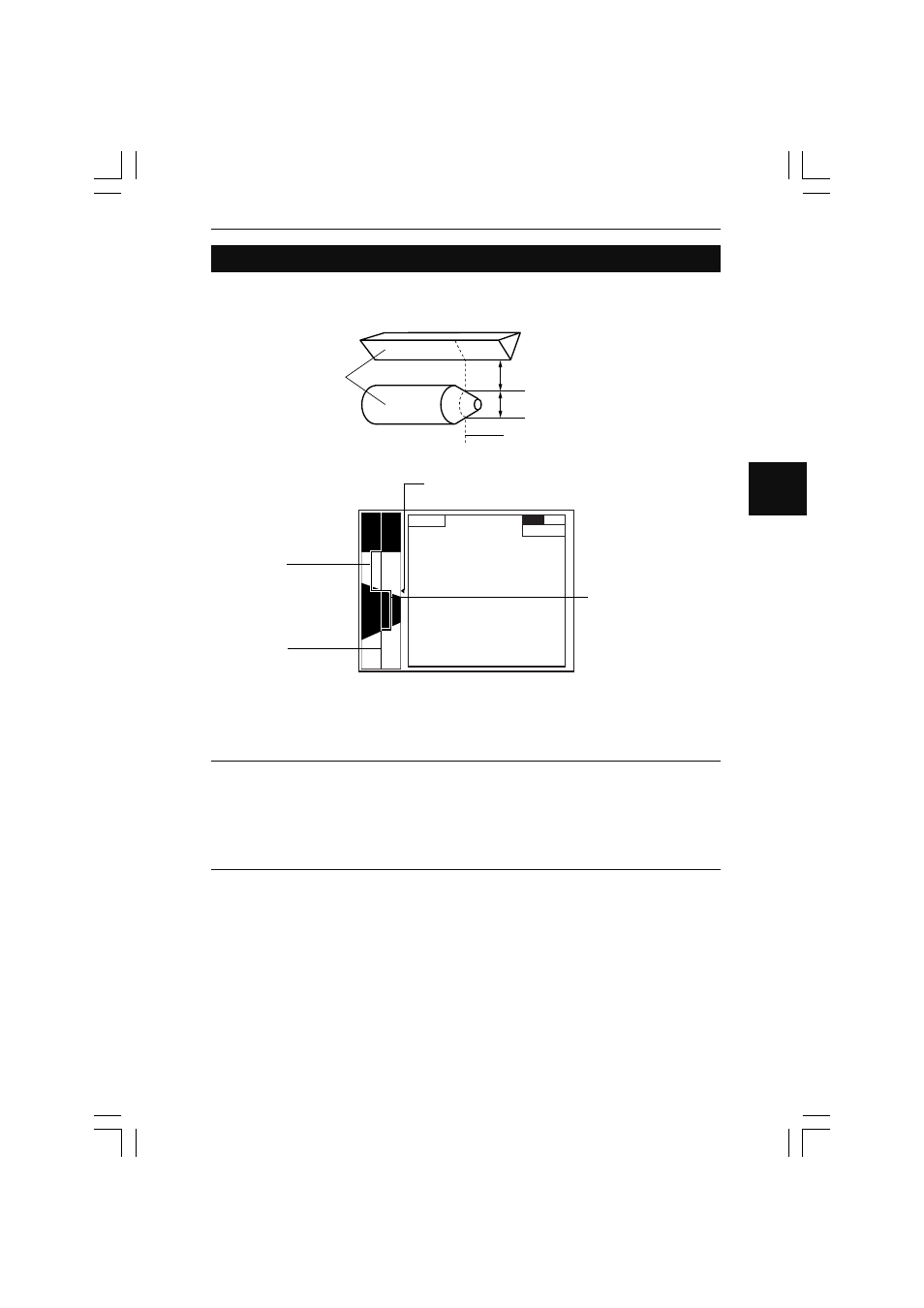

Target Viewer Function
A visual check on the image of each target is possible at a glance through the built-in
image sensor camera of the measuring head.
Clearance (AREA1) Target
Outer diameter (AREA2)
Measuring point
OUT1
12.34560
UPPER 1.00000
STANDARD 12.00000
LOWER
–1.00000
CAM1
RUN
P – 00
01/02/18
17:50:42
AREA1 Cursor
Displays the set
measurement range in
AREA1.
Scanning Line
Measures the dimensions of
targets arranged in line.
AREA2 Cursor
Displays the set
measurement range in
AREA2.
Center of measuring area
Displays the center of the measuring area.
Refer to Area Settings on page 5-9 for area settings in detail.
Note: • The display screen will be all black if the camera cable is not connected. The
scanning line, AREA1 cursor, AREA2 cursor, and center of the measuring
area will be, however, displayed.
• The display position of the scanning line varies for a few pixels to the left or
right with the measuring head.
• The image is refreshed 60 times a second. The cursor is refreshed 10 times
a second.
