1-13
1
Chapter 1 Getting Started

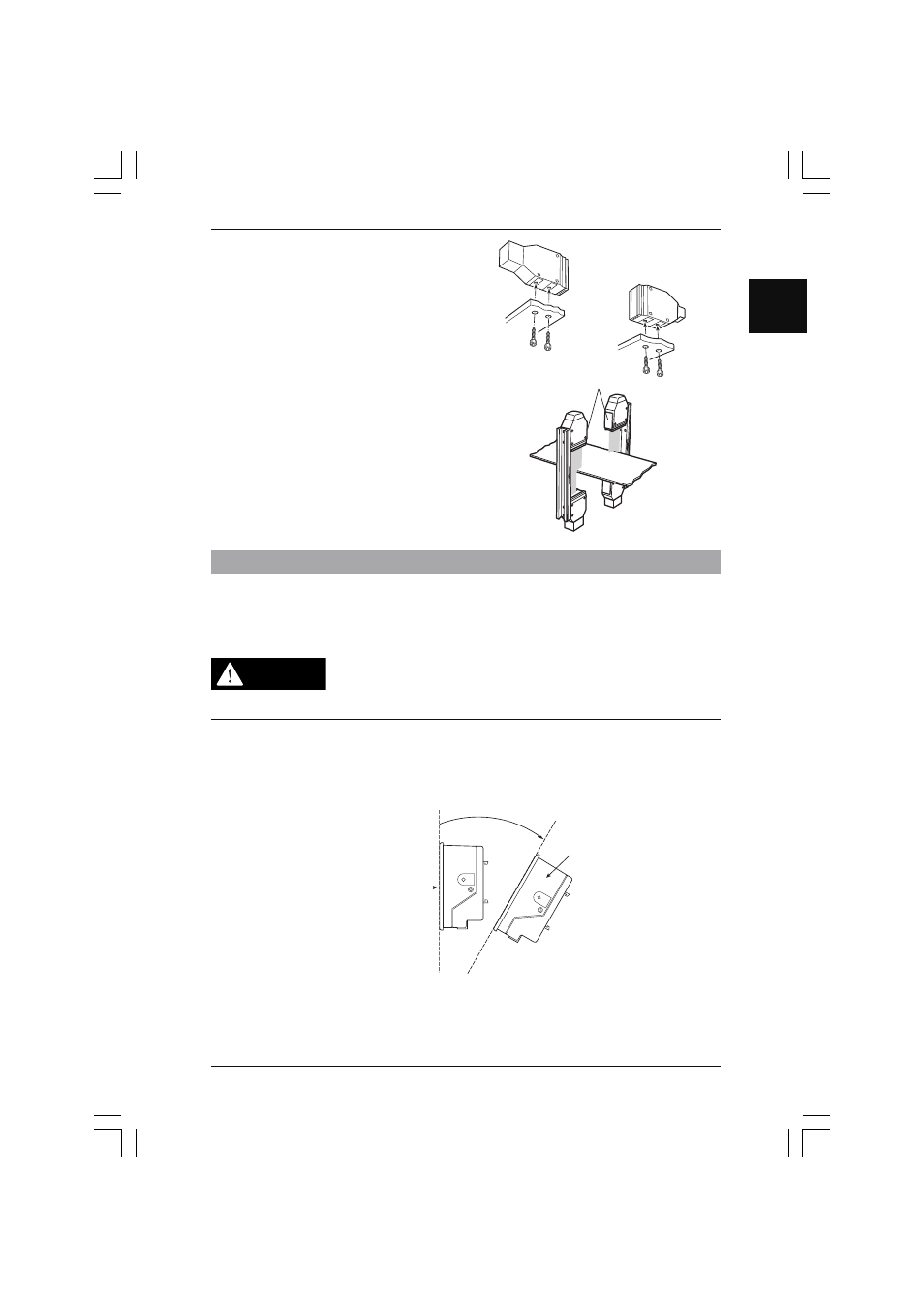

Use the 5-mm-deep M4 bottom mounting
holes of the transmitter and receiver as
shown in the illustration.
CAUTION
Mounting the Controller
■ Mounting Restrictions
Be aware of the following items when mounting the controller.
• Do not install the controller upside down.
• Do not block the ventilation louver. Otherwise, the interior heat
may cause the controller to malfunction.
Note: • For the maintenance, operability, and ventilation of the LS-7600
Series, separate the controller as far as possible from periph-
eral structures or parts.
• The mounting angle must abide by the following restrictions.
30˚
Display
panel
Side
• Check that the controller will not be exposed to the heat radia-
tion of peripheral devices.
• Separate the controller as much as possible from devices with
arc generation, such as electromagnetic switches or non-fuse
breakers.
■ When Using the Dual Head
Function
When using the dual head function, mount
the two measuring heads so that their top
sides face each other.
Top
