3-6
3
Chapter 3 Easy Setting Guide

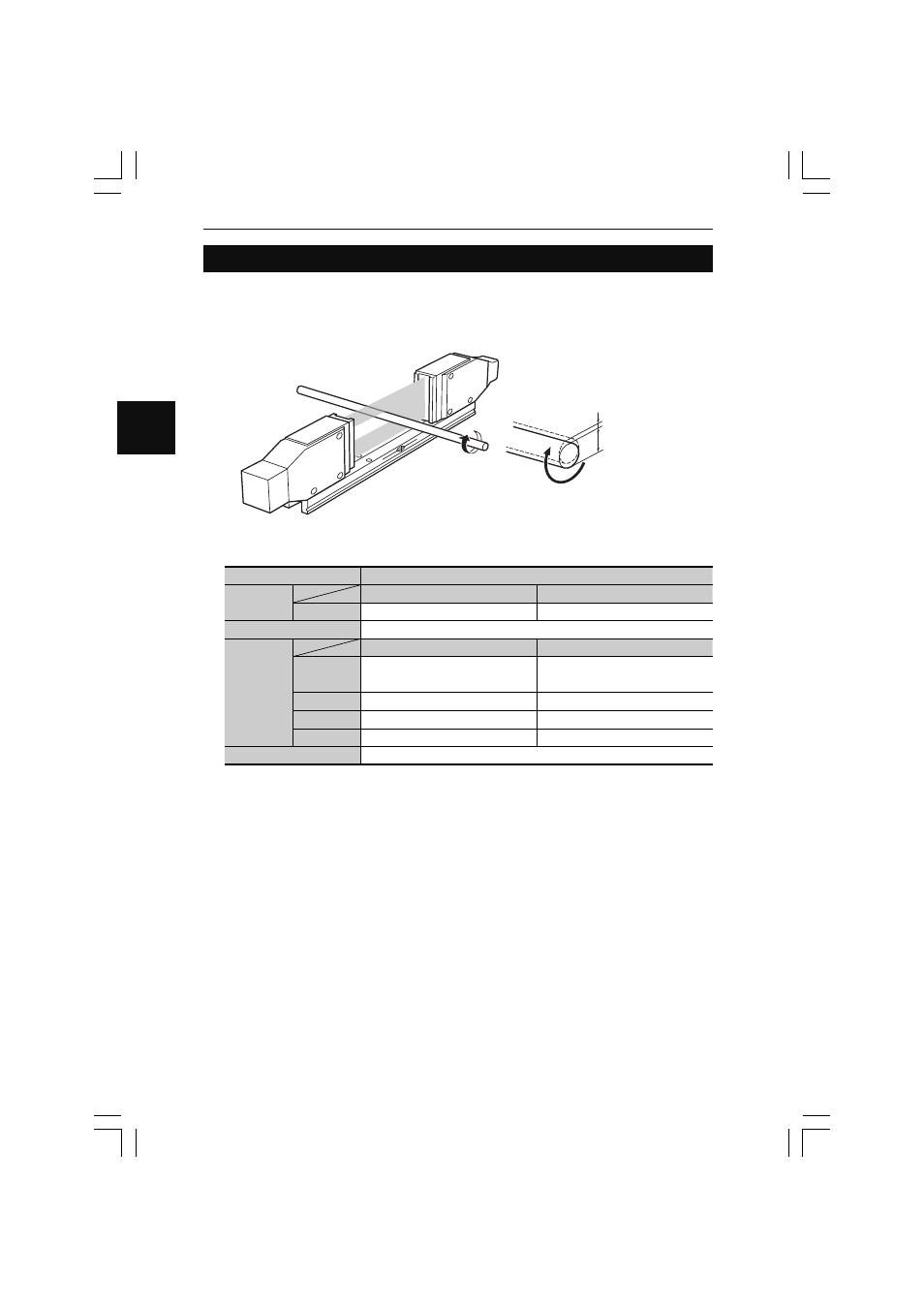

Measurement of Outer Diameter and Eccentricity
In the following example, the outer diameter and eccentricity of the roller is measured while
the roller moves. The outer diameter is displayed as OUT1, and the eccentricity is dis-
played as OUT2.
Eccentricity
Outer diameter
■
Set Values
Set item
Calibration
Tolerance setting
Area setting
Output
setting
AREA
Operation
Averaging
RUN mode
Offset
Set value
AREA 1
Head 1 DIA Head 1 T-EDGE
Make settings if required.
A1: 1
A2: 0
1
Average hold
A1: 0
A2: 1
Select the value according to the rpm.
Peak-to-peak hold
No settings are required. No settings are required.
Set the upper and lower limit values.
AREA 2
OUT 1 OUT 2
■ Reference
Area Settings (Page 5-9)
Calibration Settings (Page 5-22)
Output Settings (Page 5-29)
Tolerance Settings (Page 5-49)
