Measuring head – KEYENCE LS-7600 User Manual
Page 23
1-9
1
Chapter 1 Getting Started

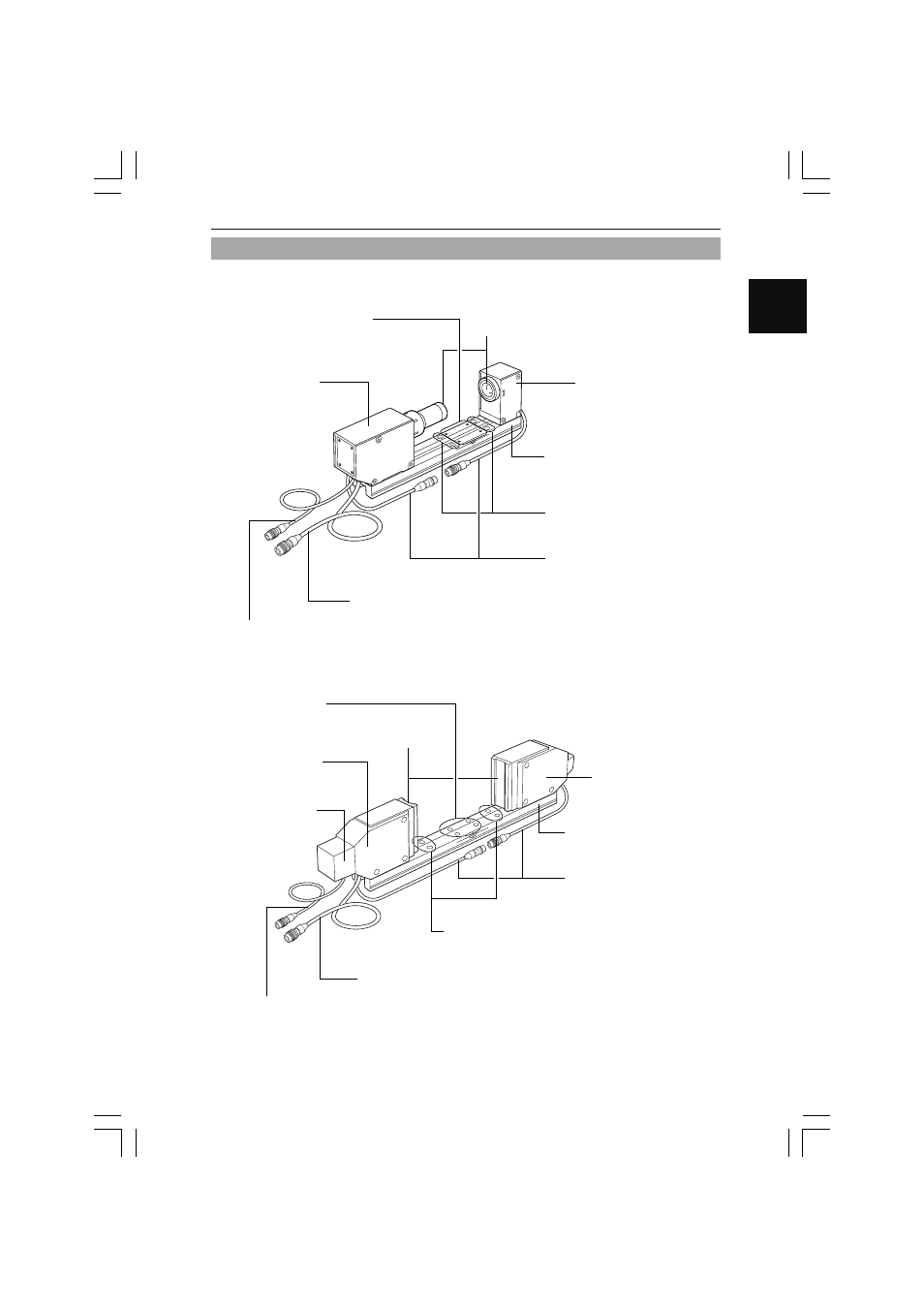

Measuring Head
LS-7010M
Multi-purpose
Mounting Holes
A fixture for targets can
be attached.
Transmitter (T Head)
Emits light for
measurement.
Receiver (R Head)
Receives light from
the transmitter.
Cover Glass
Mounting Holes
Used to mount the
measuring head.
Extension Cable
Connected to the controller.
TR Base
Used to mount the
transmitter and receiver.
TR Cables
Used to connect the transmitter
Camera Cable
Connected to the controller.
LS-7030M
Multi-purpose
Mounting Holes
A fixture for targets can
be attached.
Transmitter (T Head)
Emits light for
measurement.
Receiver (R Head)
Receives light from
the transmitter.
Cover Glass
Camera Unit
TR Cables
Used to connect the
transmitter and receiver.
Camera Cable
Connected to the controller.
Extension Cable
Connected to the controller.
TR Base
Used to mount the
transmitter and receiver.
Mounting holes
Used to mount the measuring
head.
