Check on Fluctuation of Light Intensity Due to Dirt or Dust
100%
100%
95%
95%
90%
90%
90%
95%

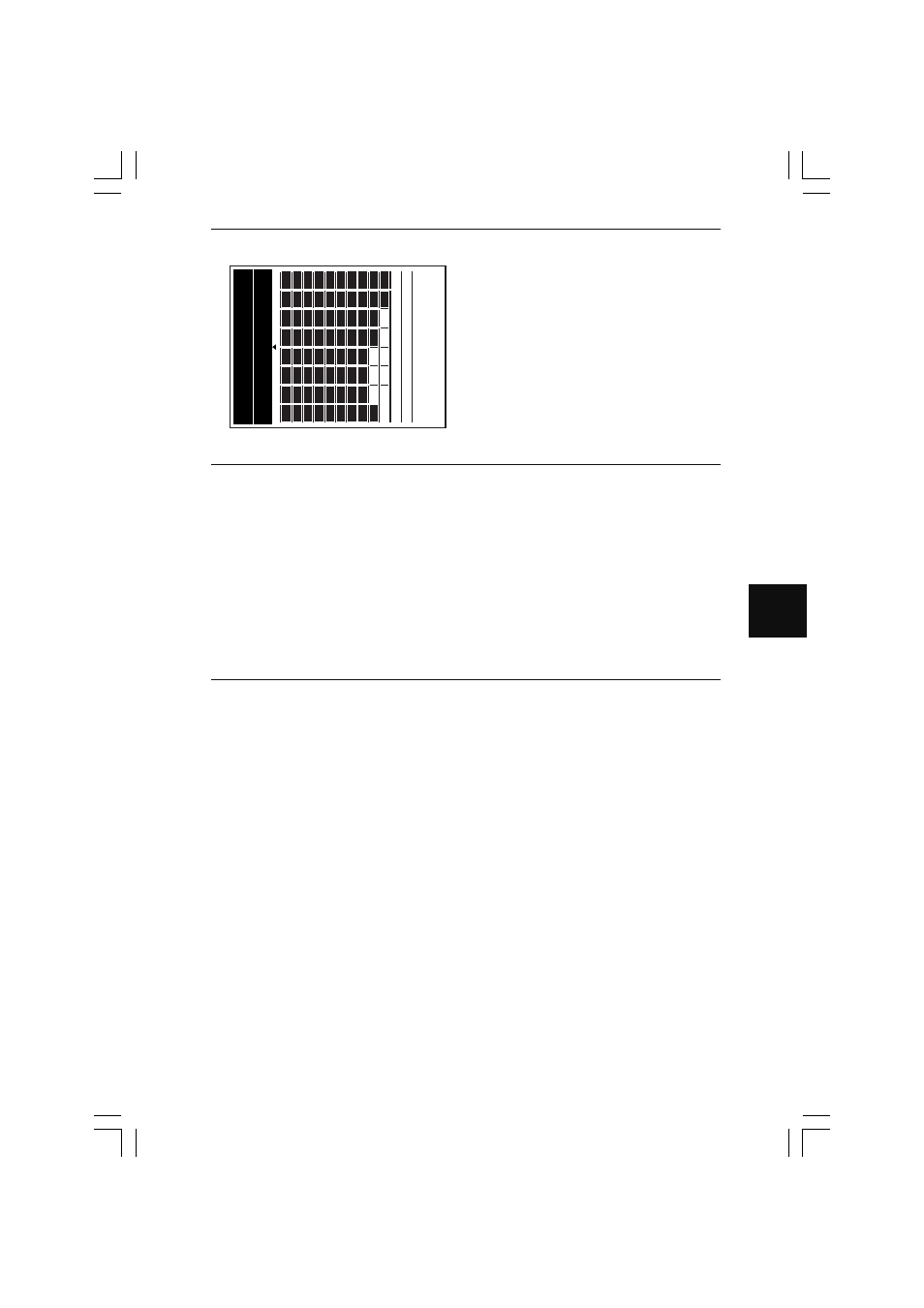

The distribution of light has fluctuation.
In the above case, refer to page 3 and clean the cover glass.
Note: LED Inspection Function
• The function operates correctly, provided that the position of the measuring
head remains the same before, while, and after the intensity of light is
checked. The intensity of light fluctuates if the mounting position shifts.
• This function cannot be used to check errors in the mounting position of the
measuring head.
• This function is not intended to guarantee the measurement accuracy of the
LS-7600 Series. Use master workpieces such as pin gauges to check the
measurement accuracy.
• The intensity of light displayed will decrease by approximately 6% if the
mutual interference prevention function is used. Furthermore, the intensity of
light displayed will decrease by approximately 11% if the cable between the
controller and measuring head is extended to 40 m. They are not errors.
Check the intensity of LED light source based on the displayed value.
1
Press the [Up or Down] key and select L-INSPCT.
2
Press the [ENT] key.
The cursor moves to the setting item.
3
Press the [Up or Down] key and select the measuring head number.
4
Press the [ENT] key.
The distribution of light of the designated measuring head is displayed.
5
Press the [ENT] key.
The environment setup screen appears again.
