1-16
1
Chapter 1 Getting Started

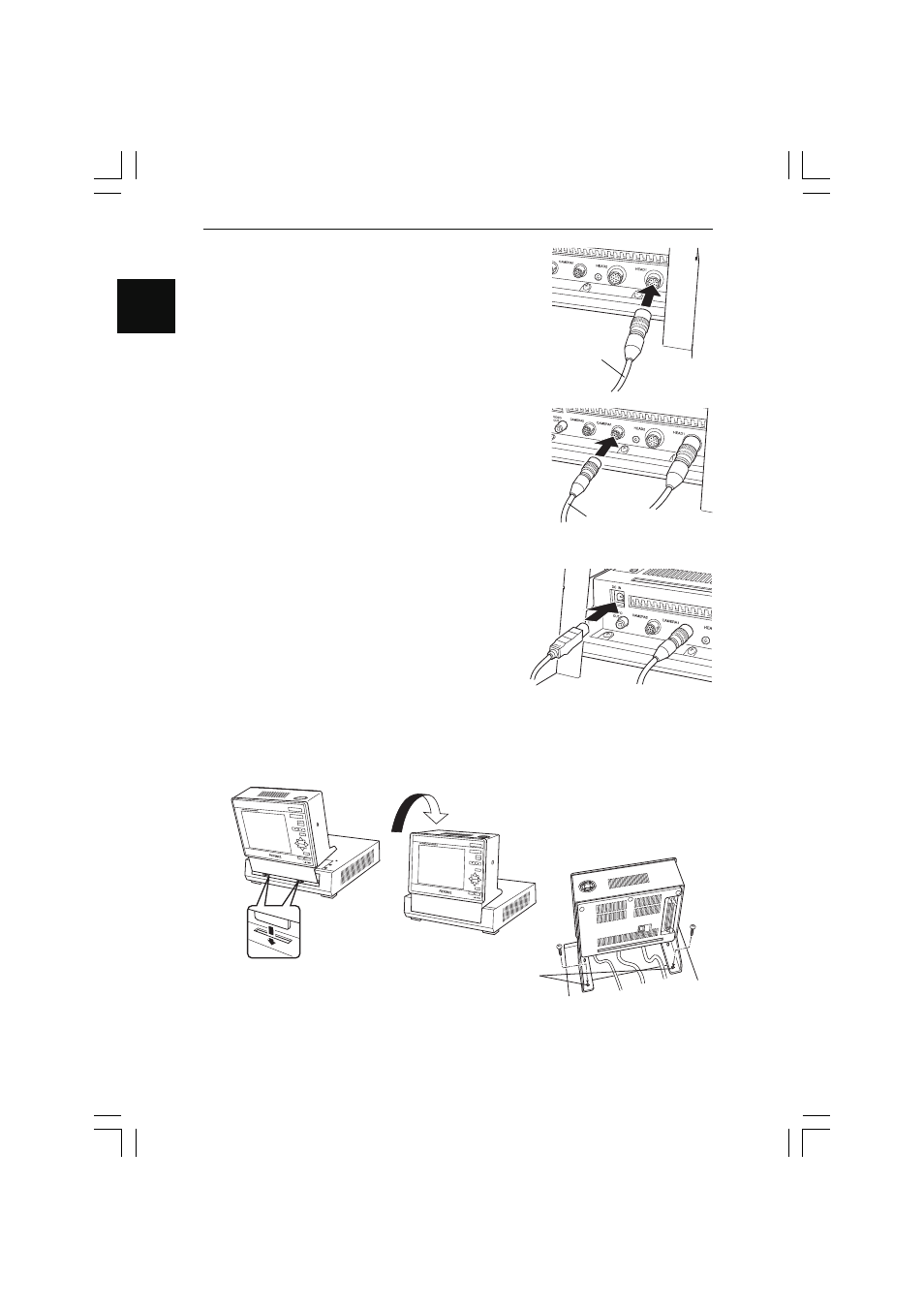

Cable between
controller and
measuring head
Camera cable
3
Connect the cable between the con-
troller and measuring head.
If only a single measuring head is used,
connect the cable to the HEAD1 connec-
tor.
4
Connect the camera cable to the
controller.
If only a single measuring head is used,
connect the cable to the CAMERA1
connector.
5
Connect the power supply cable of
the AC power supply stand to the
controller.
6
Mount the stand unit to the base unit.
Mount the stand unit with the two screws provided with the package.
(1) Lean the stand unit in the front
direction and insert the tab.
(2) Lean the stand unit in the direction
indicated by the arrow. Pay utmost
attention so that the connected cable will
not be caught by the stand unit.
(3) Secure these portions
with screws.
