1-18
1
Chapter 1 Getting Started
Receiver side
Transmitter side
Controller side
Measuring
head side
Controller side
Measuring
head side

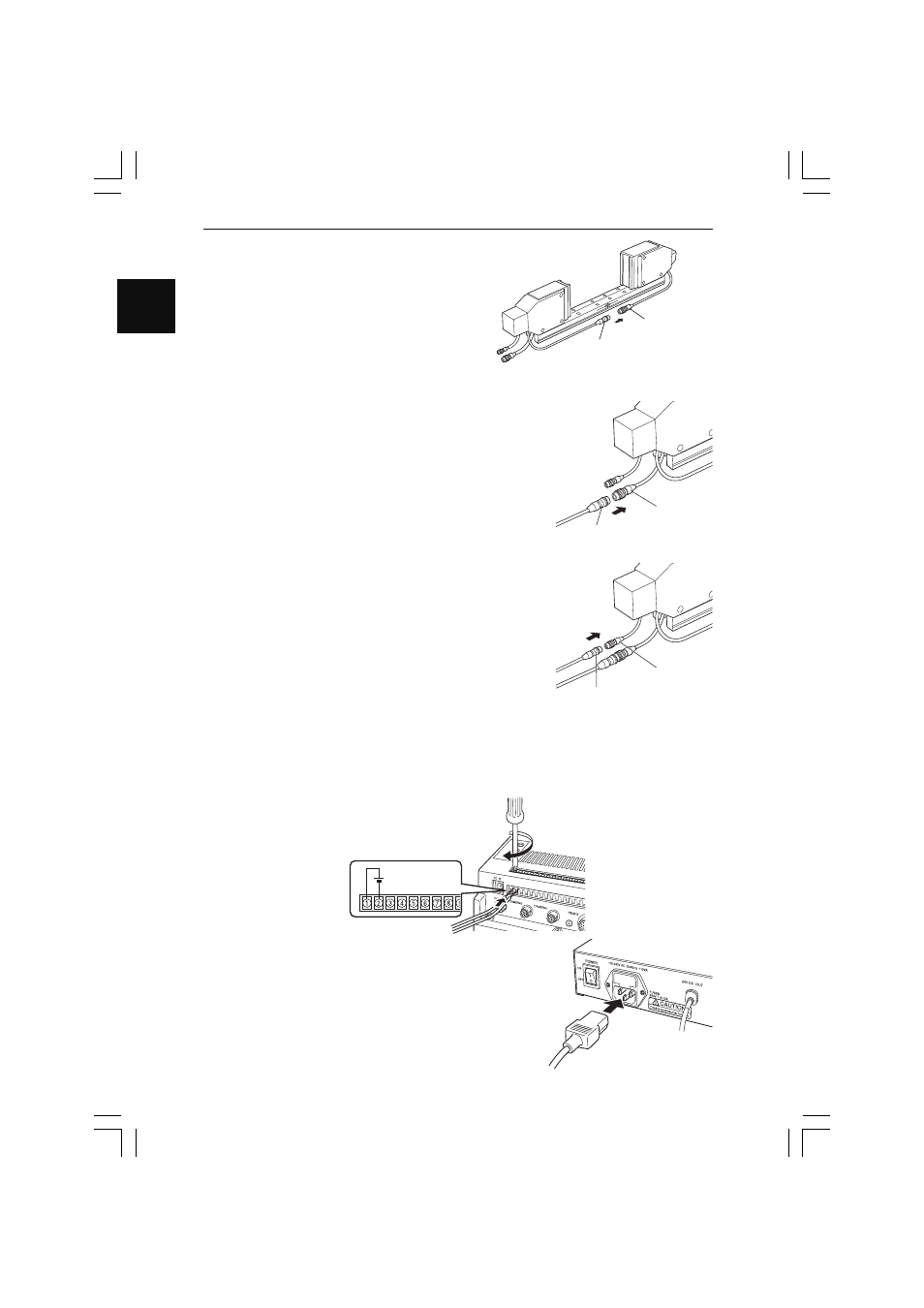

■ Transmitter and Receiver
Connect the cables of the transmitter
and receiver respectively.
Connect both connectors so that the
notched part of each connector will coincide
with each other in position.
■ Measuring Head and Controller
Connect the cables of the controller and
the measuring head.
Connect both connectors so that the
notched part of each connector will coincide
with each other in position.
■ Camera Unit and Controller
Connect the camera cable to the camera
unit cable.
Connect both connectors so that the
notched part of each connector will coincide
with each other in position.
■ Power Supply Cable
Supply 24 VDC to the controller through I/O terminals 1 and 2 on the rear panel of
the controller. Secure the wires to the terminals with a Phillips screwdriver.
24 VDC
● Using AC Power Supply Stand (Sold
Separately):
Connect the output cable of the AC
power supply stand to the DC IN
connector of the controller. Then
connect the AC cord provided with
the AC power supply stand to the
electric outlet.
