COM Express Interfaces
2.9.1.3. USB 3.0 connector

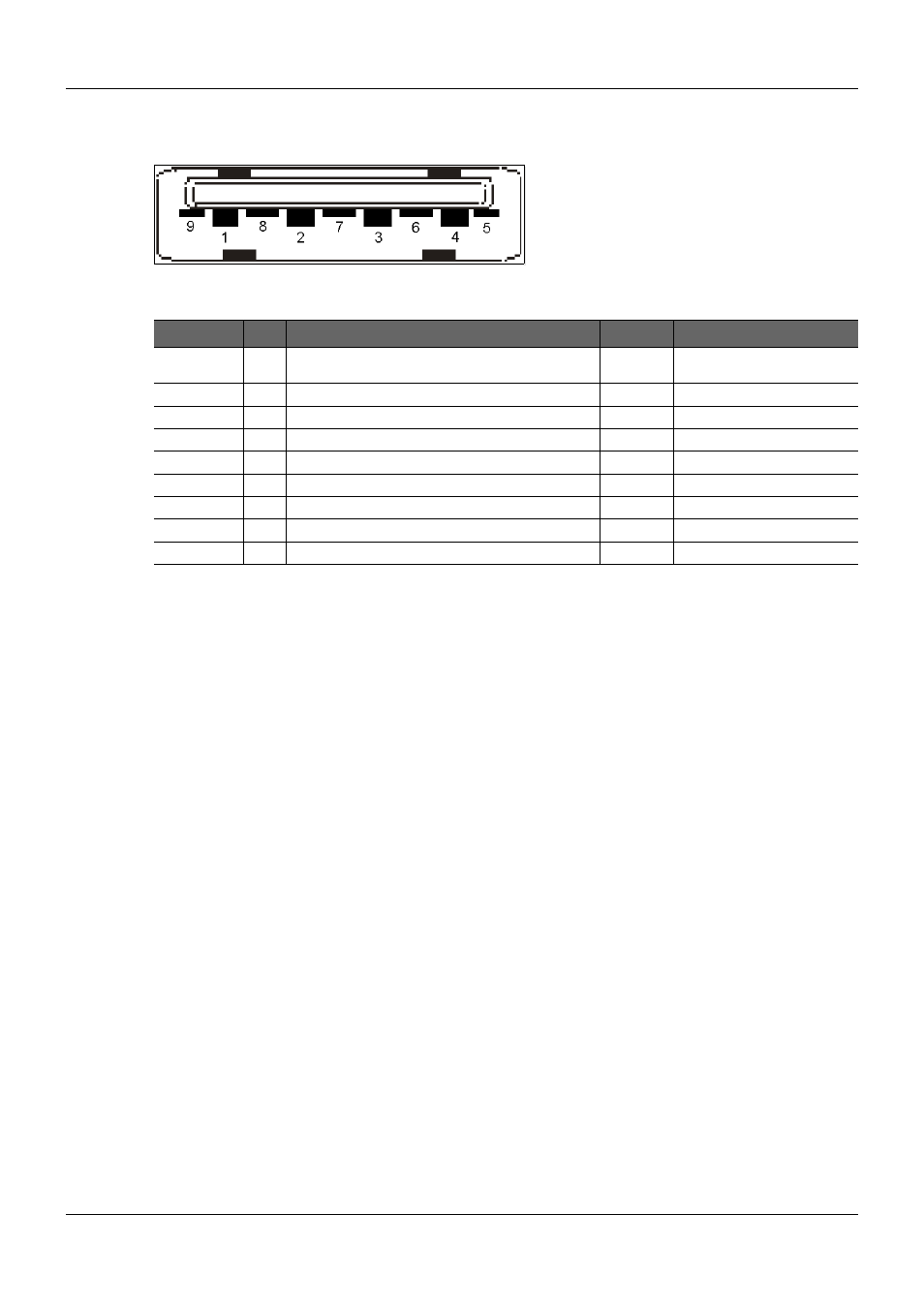

Figure 30: USB 3.0 Connector
Table 23: USB 3.0 Connector Signal Description
Signal Pin Description I/O Comment
VCC 1 +5V Power Supply P 5V Must be current-limited for
external devices
-DATA 2 Universal Serial Bus Data, negative differential signal. I/O USB
+DATA 3 Universal Serial Bus Data, positive differential signal. I/O USB
GND 4 Ground P
SS_RX- 5 SuperSpeed Data Receive - I PCIE
SS_RX+ 6 SuperSpeed Data Receive + I PCIE
GND 7 Ground P
SS_TX- 8 SuperSpeed Data Receive - O PCIE
SS_TX+ 9 SuperSpeed Data Receive + O PCIE
PICMG ® COM Express ® Carrier Board Design Guide Rev. 2.0 / December 6, 2013
83/218
