COM Express Interfaces
Table 8: Support Signals for ExpressCard
Signal Pin Description I/O
EXCD0_CPPE# A49 ExpressCard capable card request, slot 0. I 3.3V
CMOS
EXCD1_CPPE# B48 ExpressCard capable card request, slot 1. I 3.3V
CMOS
EXCD0_PERST# A48 ExpressCard reset, slot 0. O 3.3V
CMOS
EXCD1_PERST# B47 ExpressCard reset, slot 1. O 3.3V
CMOS

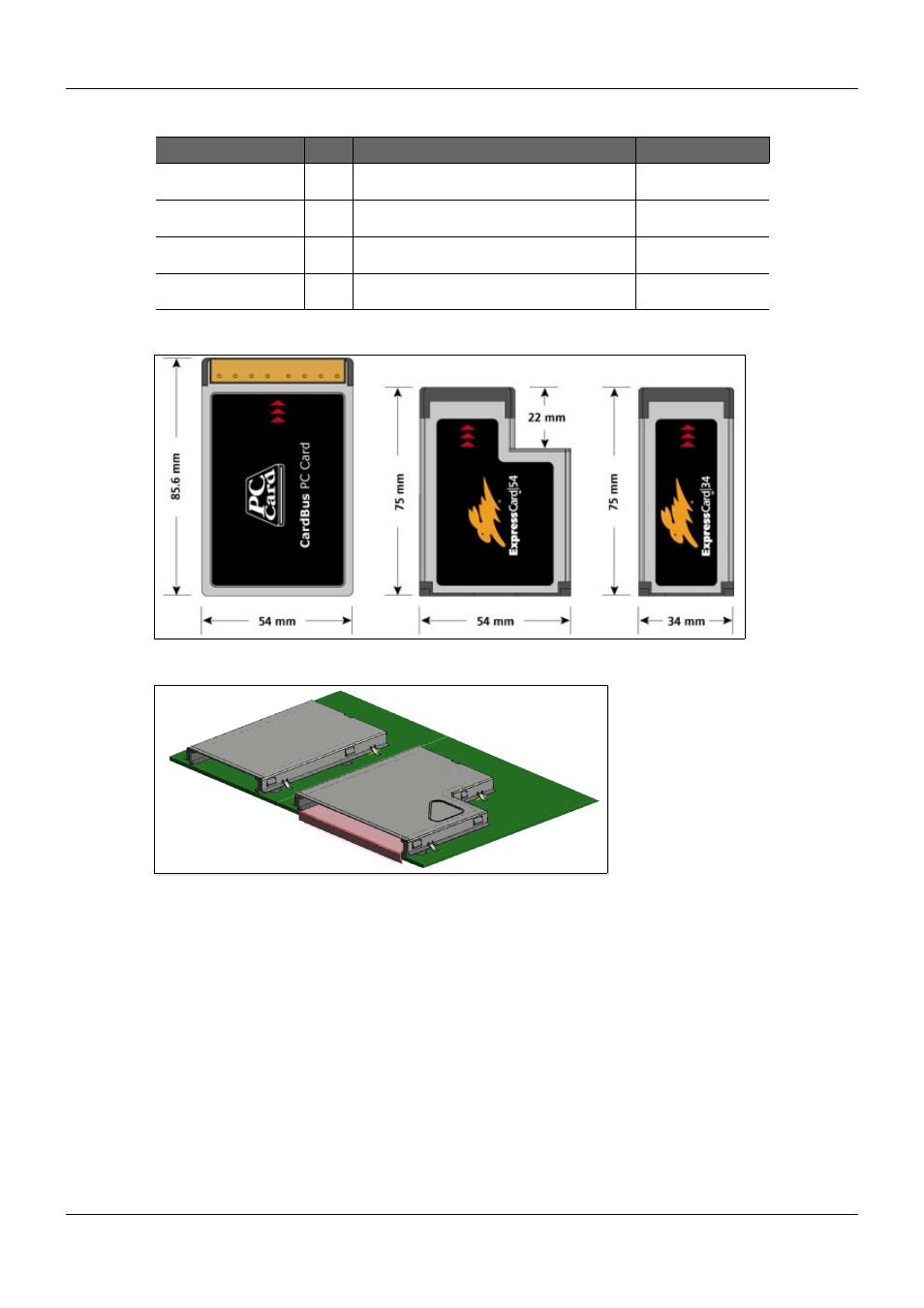

Figure 15: ExpressCard Size
Figure 16: ExpressCard Sockets
PICMG ® COM Express ® Carrier Board Design Guide Rev. 2.0 / December 6, 2013
45/218
