COM Express Interfaces

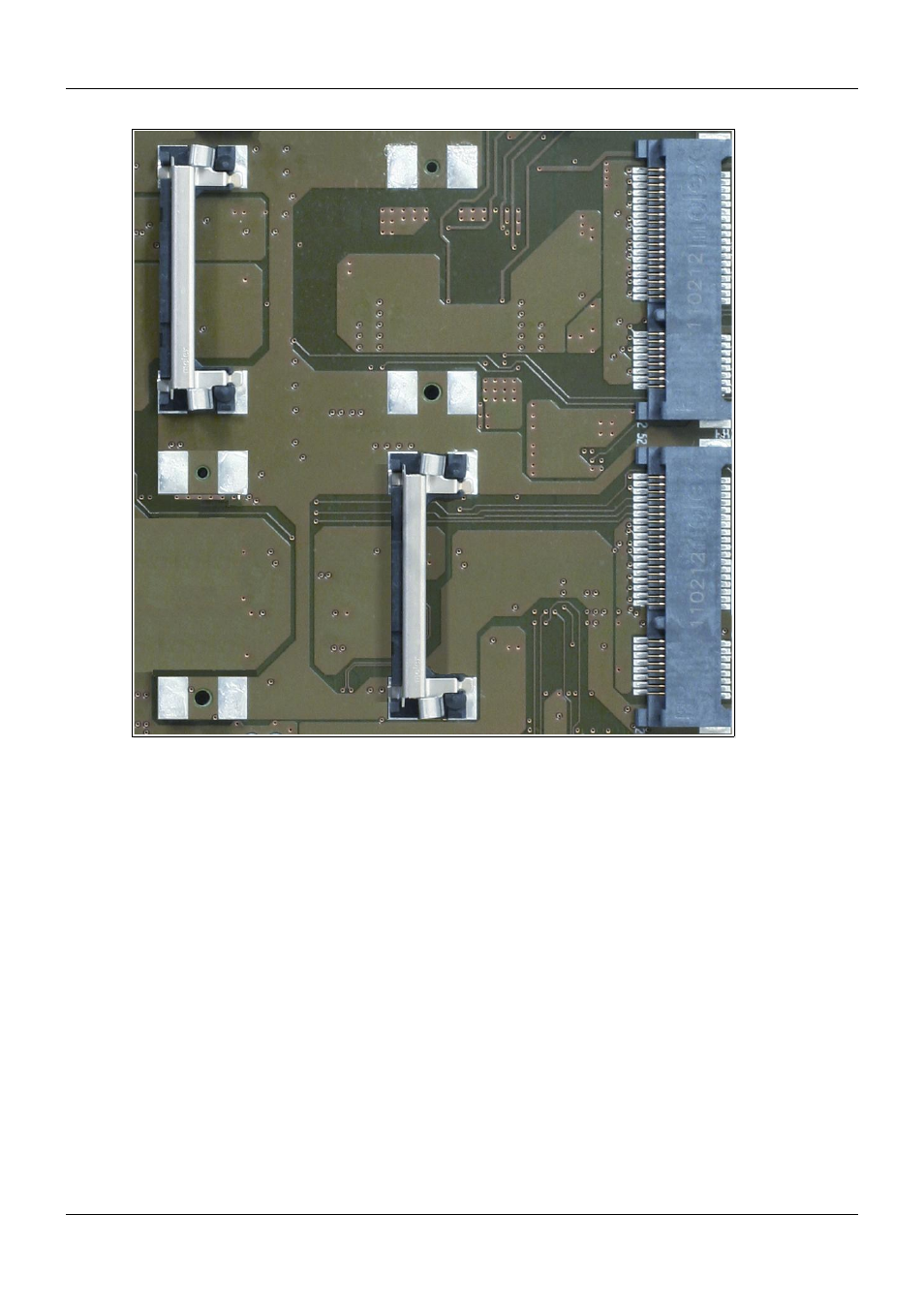

Figure 13: PCI Express Mini Card Connector on COM Express Carrier Board
The different card sized can be easily handled on the Carrier Board by having the latches
optionally placed on the full size position or on the half size position as shown in Figure 13
above.
