Configuring the Speed/Voltage Loop 5-9
5.2.3 Configuring the Pulse Encoder Feedback
You only need to configure the pulse encoder feedback parameters if you have the
Pulse Encoder (Tachometer) kit installed. If you have a regenerative drive, you must
use a quadrature pulse encoder.

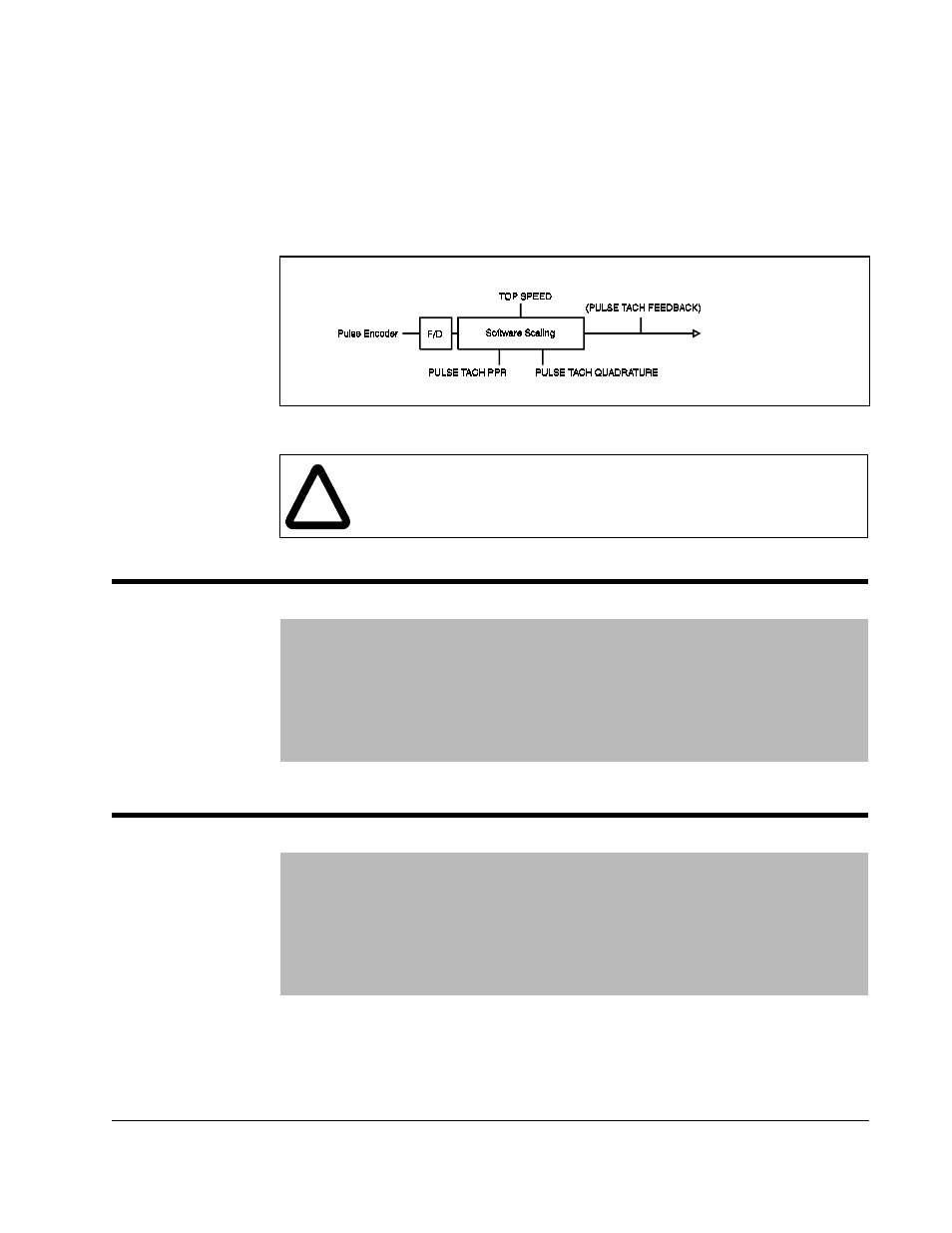

The pulse encoder block diagram is shown in figure 5.4.
Figure 5.4 – Pulse Encoder Feedback Block Diagram
!
ATTENTION: The incorrect configuration of these parameters can cause
an overspeed condition. These parameters must be set by a qualified
person who understands the significance of setting them. Failure to
observe this precaution could result in bodily injury.
To Figure 5.1, Speed
Loop Block Diagram
PULSE TACH FEEDBACK (P.292)
The digital value from
the pulse encoder
after hardware and
software scaling. For
use with pulse
encoder feedback
only. Parameter Range: n/a
Default Setting: n/a
Parameter Type: Output
OIM Menu Path(s): Speed/Voltage Loop ( SPD ) - Speed/Voltage Loop
( SPD ) Test Points
PULSE TACH PPR
(P.207)
Pulse encoder pulses
per revolution (
PPR )
from the pulse
encoder nameplate.
Parameter Range: 18 to 2500 PPR
Default Setting: 18 PPR
Parameter Type: Configurable
OIM Menu Path(s): Speed/Voltage Loop ( SPD ) - Speed/Voltage Loop
( SPD ) Feedback
