11-2 FlexPak 3000 DC Drive Software Reference
11.1 Configuring the Digital Outputs
The I/O Expansion kit includes two digital outputs.
If you use these outputs, you need to set parameters that select the source that drives
the output and whether the output is normally open or normally closed.
!
ATTENTION: These outputs are intended for use as an indication. Failure
to observe this precaution can result in severe bodily injury or loss of life.

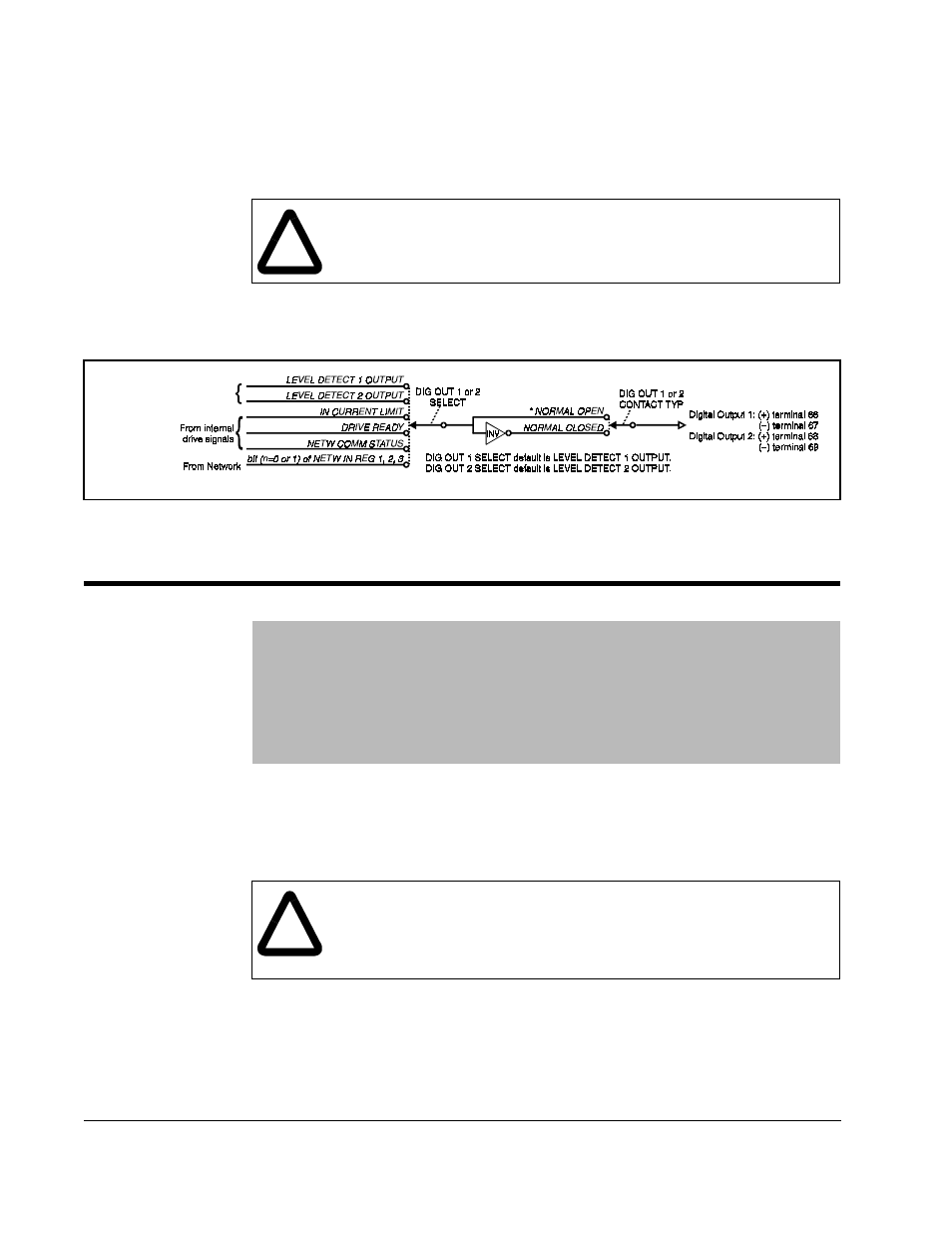

Figure 11.1 – Digital Outputs Block Diagram
DIG OUT 1 CONTACT TYP (P.410)
Selects whether
digital output 1
(terminals 66 and 67
on I/O Expansion kit)
is normally open or
normally closed. Parameter Range: NORMAL OPEN
NORMAL CLOSED
Default Setting: NORMAL OPEN
Parameter Type: Configurable
OIM Menu Path(s): Input/Output - Digital I/O
If NORMAL OPEN is selected, digital output 1 is open when the signal selected by DIG
OUT 1 SELECT (P.409) is off and closed when it is on.
If NORMAL CLOSED is selected, digital output 1 is closed when the signal selected by
DIG OUT 1 SELECT (P.409) is off and open when it is on.
From Figure 12.1, Level
Detectors Block Diagram
!
ATTENTION: On a power cycle or reset, the contact is held open until
the drive software powerup diagnostics is complete. Make sure that this
condition does not result in a dangerous situation for your application.
Failure to observe this precaution can result in severe bodily injury or
loss of life.
