Using SCANport Capabilities D–12
Publication 1397-5.0 — June, 2001

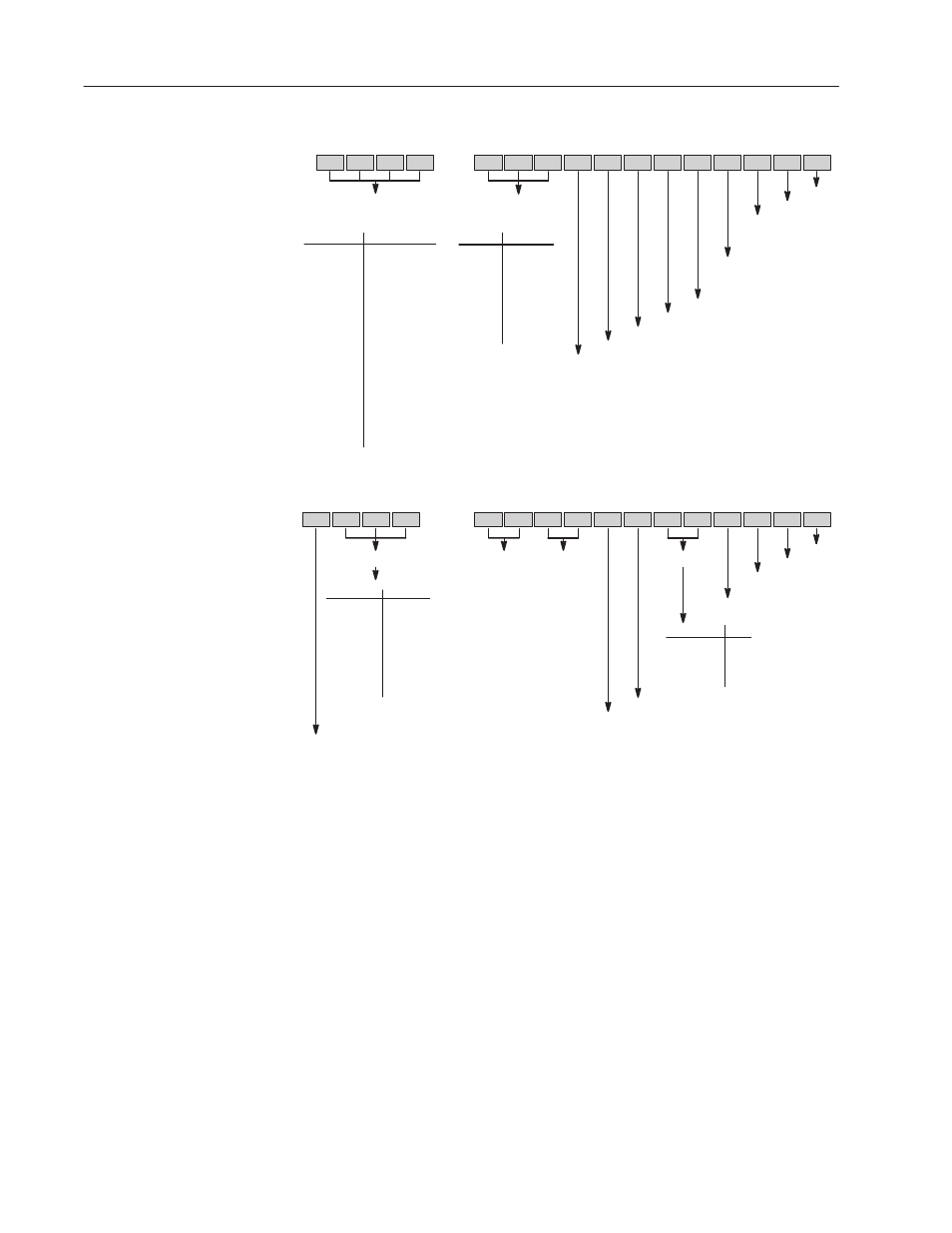

LOGIC STATUS FORMAT
Enabled
Running
Command Direction
Actual Direction
Accelerating
Decelerating
Faulted
At Speed
Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 9 Bit 8 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Alarm
0 = Reverse
1 = Forward
0 = Reverse
1 = Forward
Reference
ID
Local
Adapter ID
Reference
Device
15 14 13 12
Ref 1 0 0 0 0
Preset 1 0 0 0 1
Preset 2 0 0 1 0
Preset 3 0 0 1 1
Not Used 0 1 0 0
Not Used 0 1 0 1
Not Used 0 1 1 0
Not Used 0 1 1 1
Ref 2 1 0 0 0
Adapter 1 1 0 0 1
Adapter 2 1 0 1 0
Adapter 3 1 0 1 1
Adapter 4 1 1 0 0
Adapter 5 1 1 0 1
Adapter 6 1 1 1 0
Jog Frequency 1 1 1 1
Local 11 10 9
Term 0 0 0
1 0 0 1
2 0 1 0
3 0 1 1
4 1 0 0
5 1 0 1
6 1 1 0
Multipoint 1 1 1
LOGIC COMMAND FORMAT
Stop
Run
Jog
Clear Faults
MOP Increment
Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 9 Bit 8 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Local Lockout
Reference Select
Reference 14 13 12
No Command 0 0 0
Ref 1
0 0 1
Ref 2 0 1 0
Preset 1 0 1 1
Preset 2 1 0 0
Preset 3 1 0 1
Not Used 1 1 0
Not Used 1 1 1
Unused Unused Direction
Direction 5 4
No Command 0 0
Forward 0 1
Reverse 1 0
Hold Direction 1 1
MOP Decrement
