5–25 Programming Parameters
Publication 1397-5.0 — June, 2001
SETUP
[Motor Field Amps] — P.044
Motor nameplate value of the rated field
amps. This parameter scales the field current
feedback. Minimum and maximum values
are dependent on the installed supply rating. Display/Drive Units: Amps
Parameter Type: Configurable
Group: Setup
Factory Defaut 0.01 amp
Minimum Value: 0.11 (4 amp) 0.28 (10 amp) 0.55 (20 amp)
Maximum Value: 4.00 (4 amp) 10.00 (10 amp) or 20.00 (20 amp)
ATTENTION: The incorrect setting of this parameter can cause a motor
overvoltage condition. Set motor [Motor Field Amps] to the motor’s
nameplate value. Make sure [Field Econ Ref] and/or [Field
Reference] — P.280 is set greater than [Fld Loss Level] — P.277 to guard
against field loss faults. Failure to observe this precaution can result in
bodily injury and damage to the equipment.
!

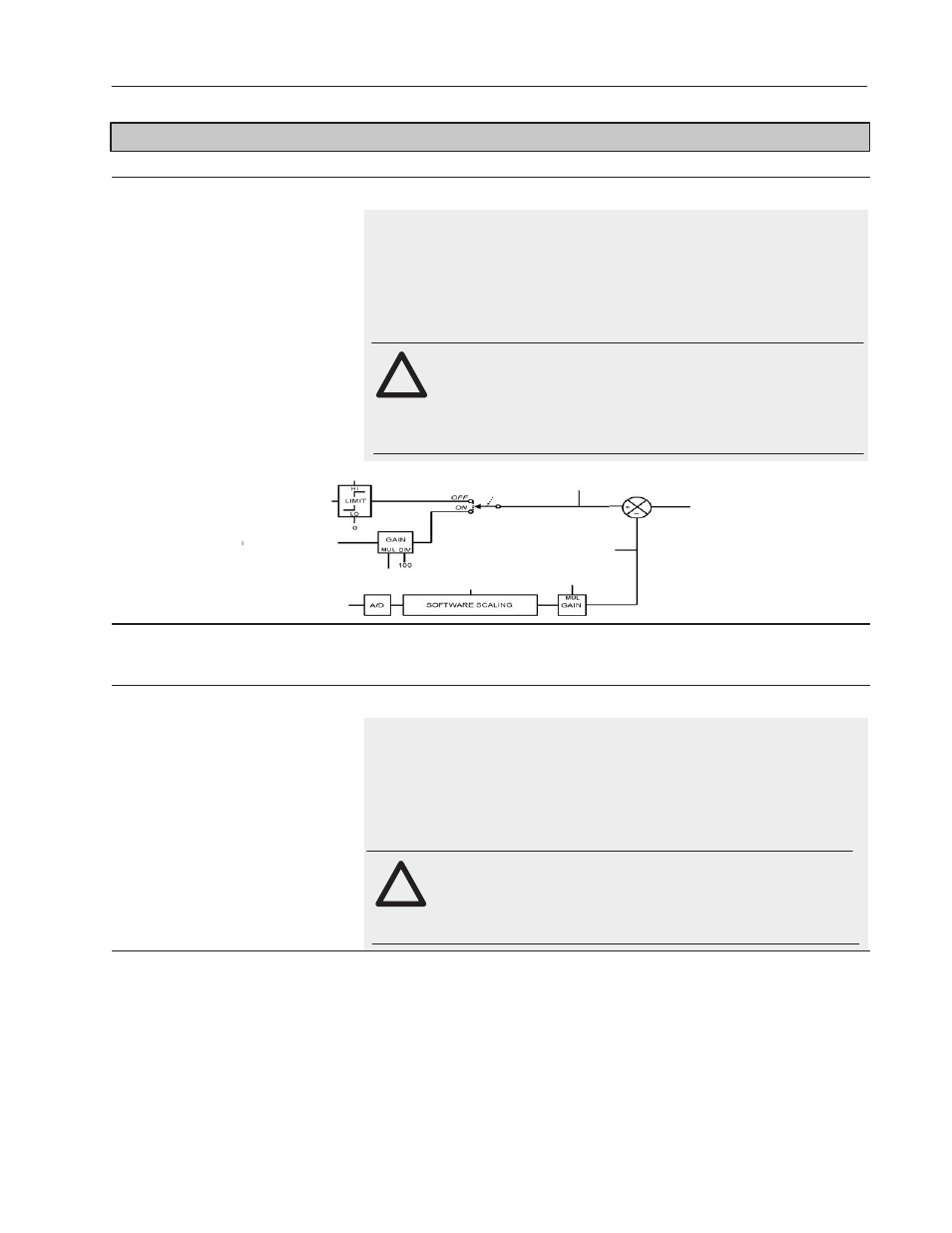

(Field Econ
Active)
Field Reference
Motor Field Amps
Motor Field Amps
(Field Reference TP)
Motor Field Amps
Fld Loop
K – Fdbk
Field Econ Ref
Field Feedback
Field Current
Feedback
To Field Current Regulator
Control Block
[Motor Arm Amps] — P.045
The rated armature current from the motor
nameplate. Display/Drive Units: Amps
Parameter Type: Configurable
Group: Setup
Factory Default: 8.0
Minimum Value: 0.1
Maximum Value: 3000.0
ATTENTION: The drive will not operate properly if this parameter
value is entered incorrectly. This parameter must be equal to the rated
armature amps found on the motor nameplate. Overcurrent or excess
heating of the motor could result. Failure to observe this precaution
could result in damage to, or destruction of, the equipment.
!
