Motor installation power wiring procedure – Rockwell Automation 1397 DC Drive Firmware 2.xx User Manual

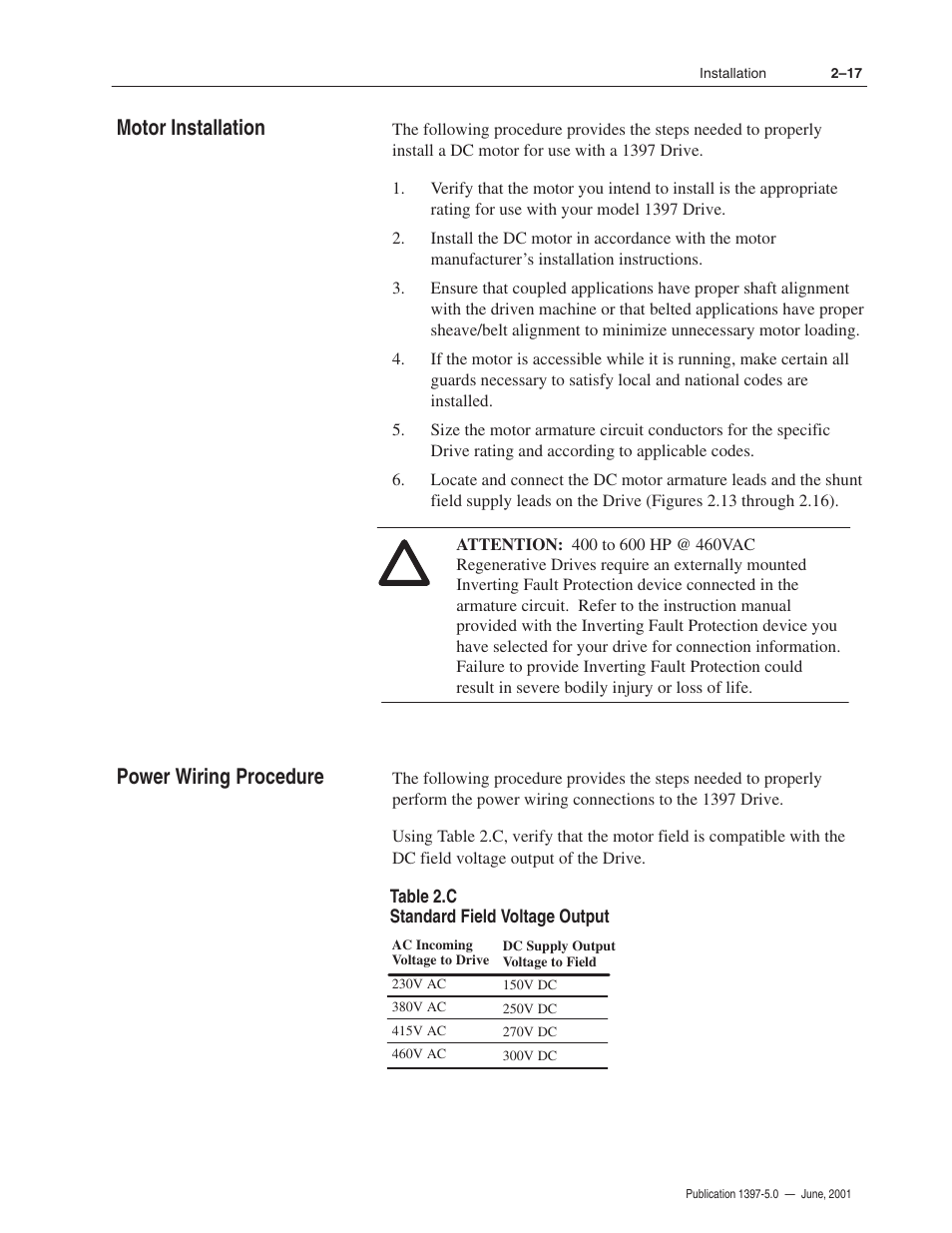

Page 35
